3

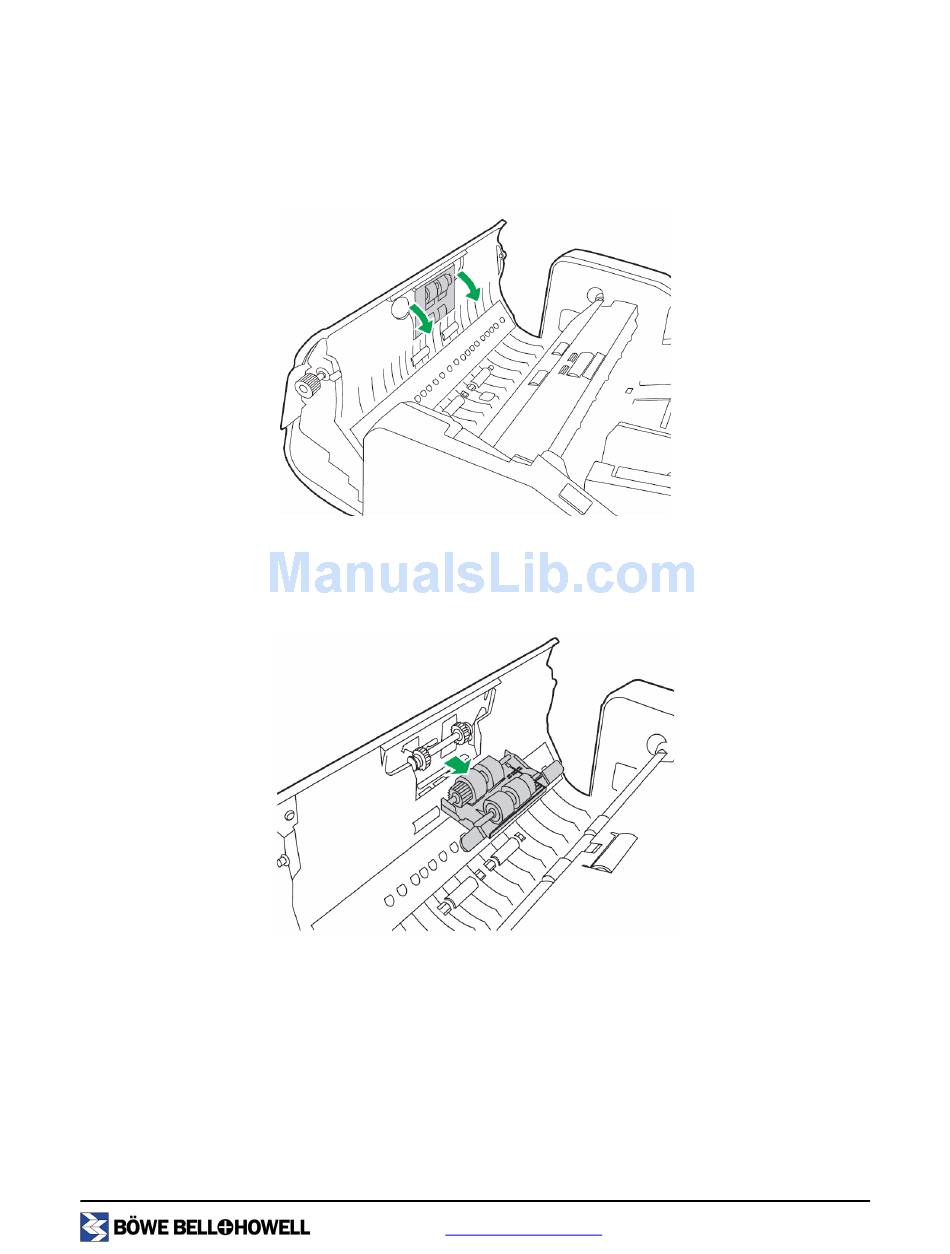

Remove the paper feed roller module from the ADF door as shown in the following steps and
diagrams.
1. Place your fingers on the tabs on the sides of the roller module and pull down the roller
module in the direction of the arrow as shown in the diagram. The module will be released
from the magnets located in the ADF door assembly.
2. Disengage the shaft on the roller module from the brackets in the ADF door assembly as
shown in the diagram. Carefully disengage the gears on the roller module from the gears in
the ADF door assembly.
