Chapter 3 – Using the Web Management Software

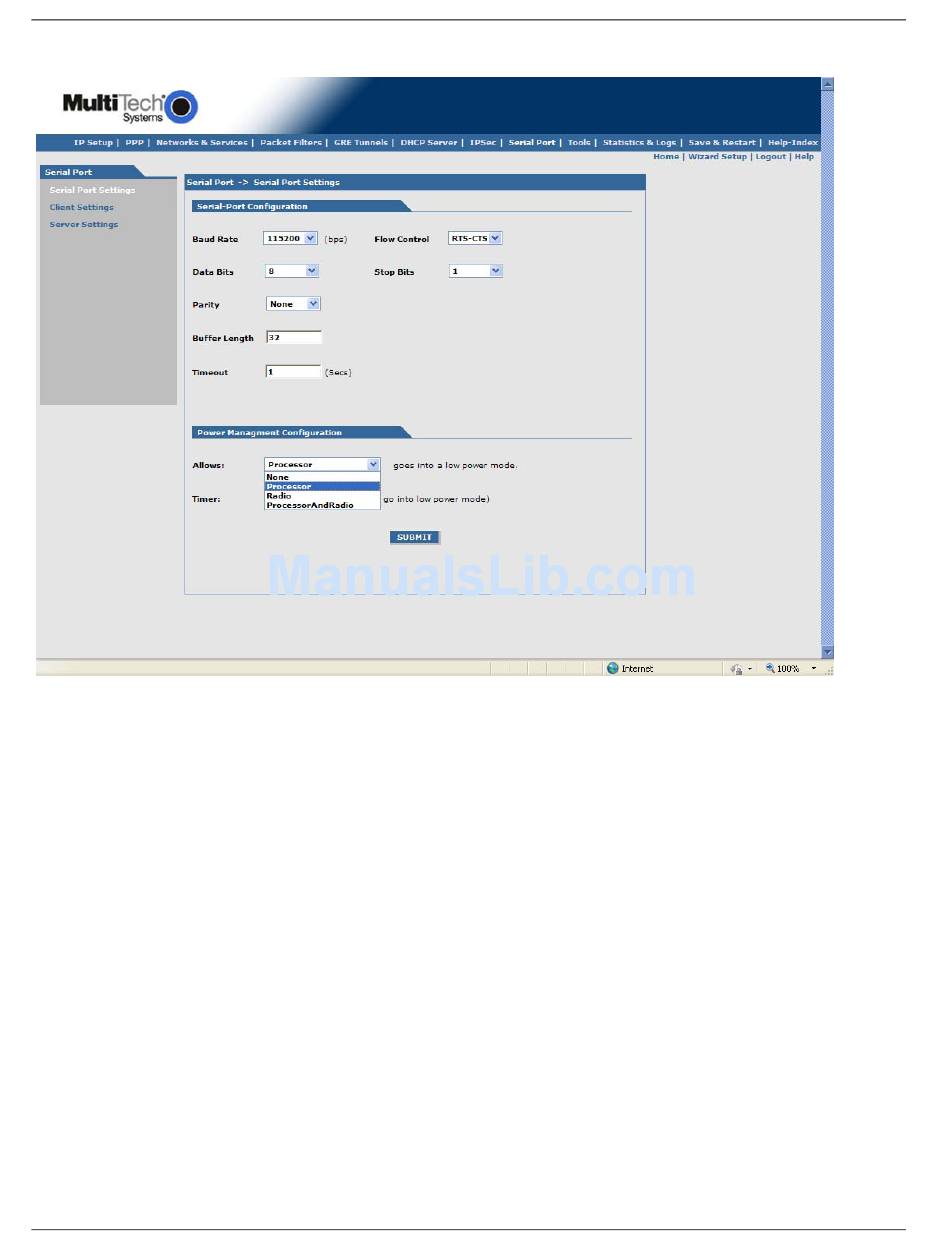

Serial-Port, Serial Port Settings Parameters

Serial-Port Configuration lets you configure the serial terminal connected to the RS-232 connector DE9 on the

back of the unit.

Baud Rate:

Sets the baud-rate at which the serial terminal is communicating. The default is 115200.

Flow Control:

Sets the flow control for the serial port. Options are None or RTS-CTS. The default is None.

Data Bits:

Sets the data bits for the serial port. Data bit selection is 7 or 8. The default is 8.

Stop Bits:

Sets the stop bits for the serial port. Options are 1 or 2. The default is 1.

Parity:

Sets the parity for the serial port. Options are None, Even, or Odd. The default is None.

Buffer Length:

Sets the length up to which the data from the serial device is buffered before IP transmission. The

default length is 32-characters.

Timeout:

Sets the timeout value for the serial terminal of how long it waits before IP transmission. The default is

1-second.

Submit Button:

Click Submit to save these settings.

Configures when the processor or radio is placed in low power mode. The device only wakes up when there is data on the

serial port. If there is no data on the serial port, and the amount of time that you specify in the Timer option is expired, then

the processor or radio goes into low power mode.
