Networks & Services, Network Configuration Parameters

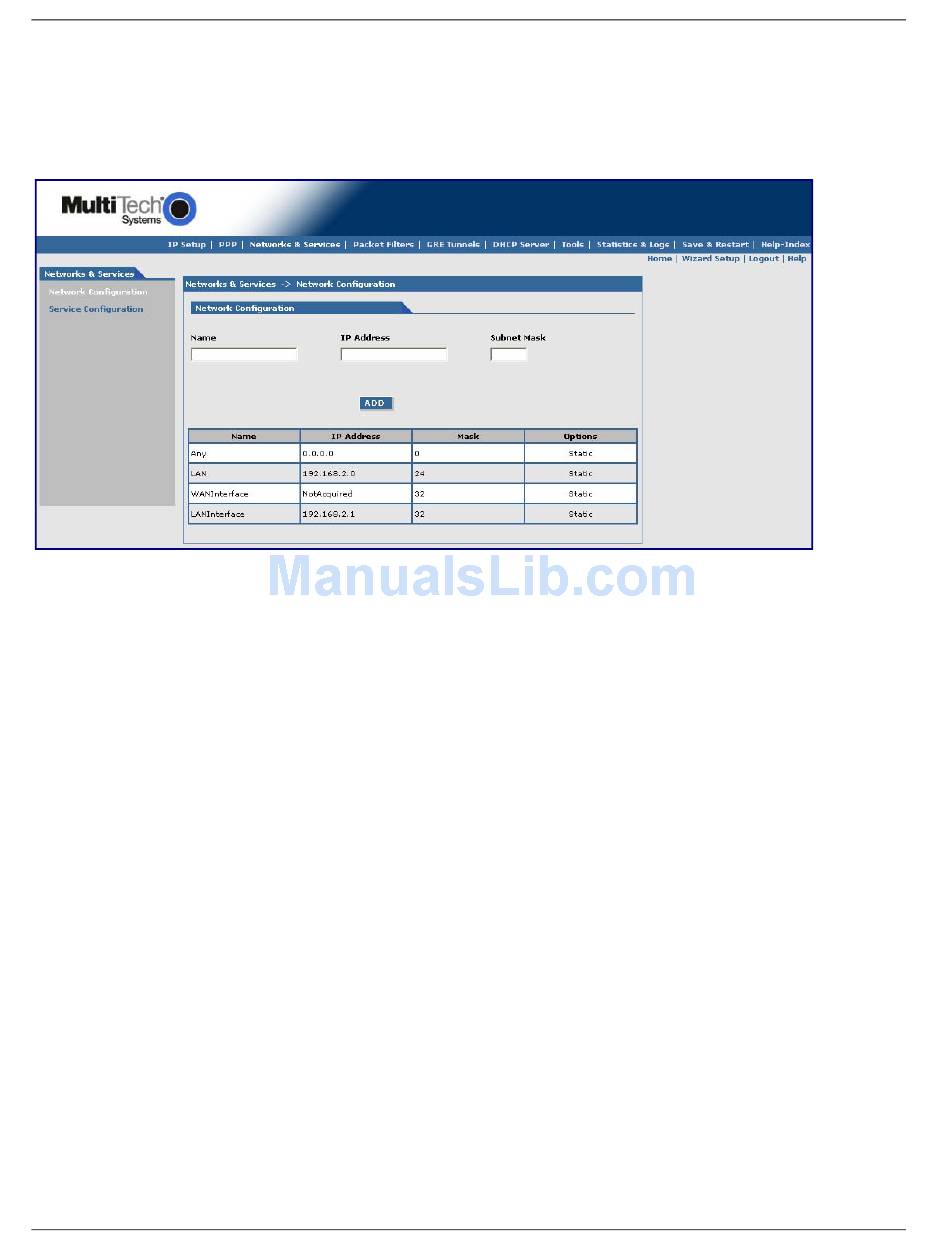

Network Configuration Group

Use this group to add networks or hosts. After you define and add a network, you can delete or edit it by using the
table.

Configuring the Network

Before you configure the network, note the following:
●
You cannot edit a Network/Host Name.
●
You cannot delete a Network/Host another configuration is using it.
●
Network/Host changes are reflected in all the configurations in the Web Management software where they
are used.
●
Network/Hosts that you add here are displayed in the following sections: Static Routes, DNAT, and Packet
Filters.
To configure:
In the Name field, type the name of the Network/Host. Make sure the same address-mask pair does not
1.
already appear in the list. The Name is limited to 15 characters maximum.
In the IP Address field, type the IP Address of the Network/Host. Make sure the same address-mask pair does
2.
not already appear in the list.
In the Subnet Mask field, type the Network Mask of the Network/Host. For Host addresses, the mask is
3.
entered as 32.
Note: See Appendix A -- Table of Commonly Supported Subnets.
To add the network, click Add. The defined network appears in the table.
4.
