Tandberg Data

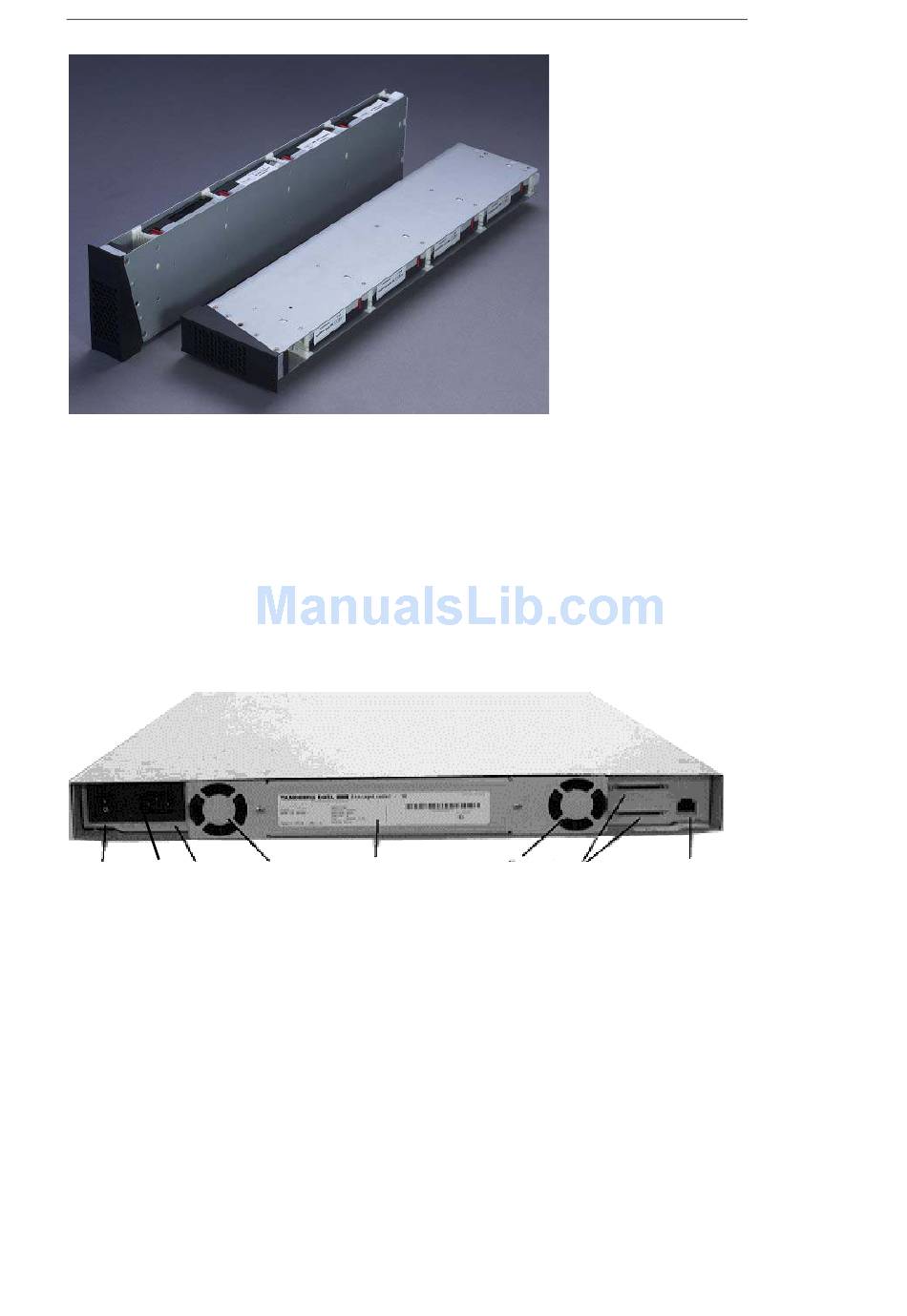

Figure 2.4 Cartridge magazines

Power Supply
The power supply regulates the electrical power supplied to the device. It is easily
removable (FRU) for quick field service; see section 6.5.3, FRU Power Supply.

2.2.3 Rear Panel

The figure below shows the rear panel of the StorageLoader.
Power Fuse Power
switch cord
connection

Figure 2.5 Rear panel of the StorageLoader

Two Integrated Cooling Fans
The rear panel contains two forced-air cooling fans, which draw air inward through
the front and expel it out in the back. The fans will start whenever the drive is
operating or when the internal temperature in the StorageLoader gets too high. The
cooling fans are field replaceable units, see section 6.5.4, FRU Fan.
Main Power Switch/ Fuse/Power cord connection
The main power switch is found on the rear of the loader on the power supply
8
Fan Back panel
cover plate
StorageLoader Installation and User Manual
General Information
Fan SCSI
connector
s
Etherne
t port
