Tandberg Data
Note: The rails are mounted to the loader during transportation. Before mounting
the rails into the rack, dismount the rails from the loader and remove the spacers
between the rails and the loader.
Back
Rail Left Assembly

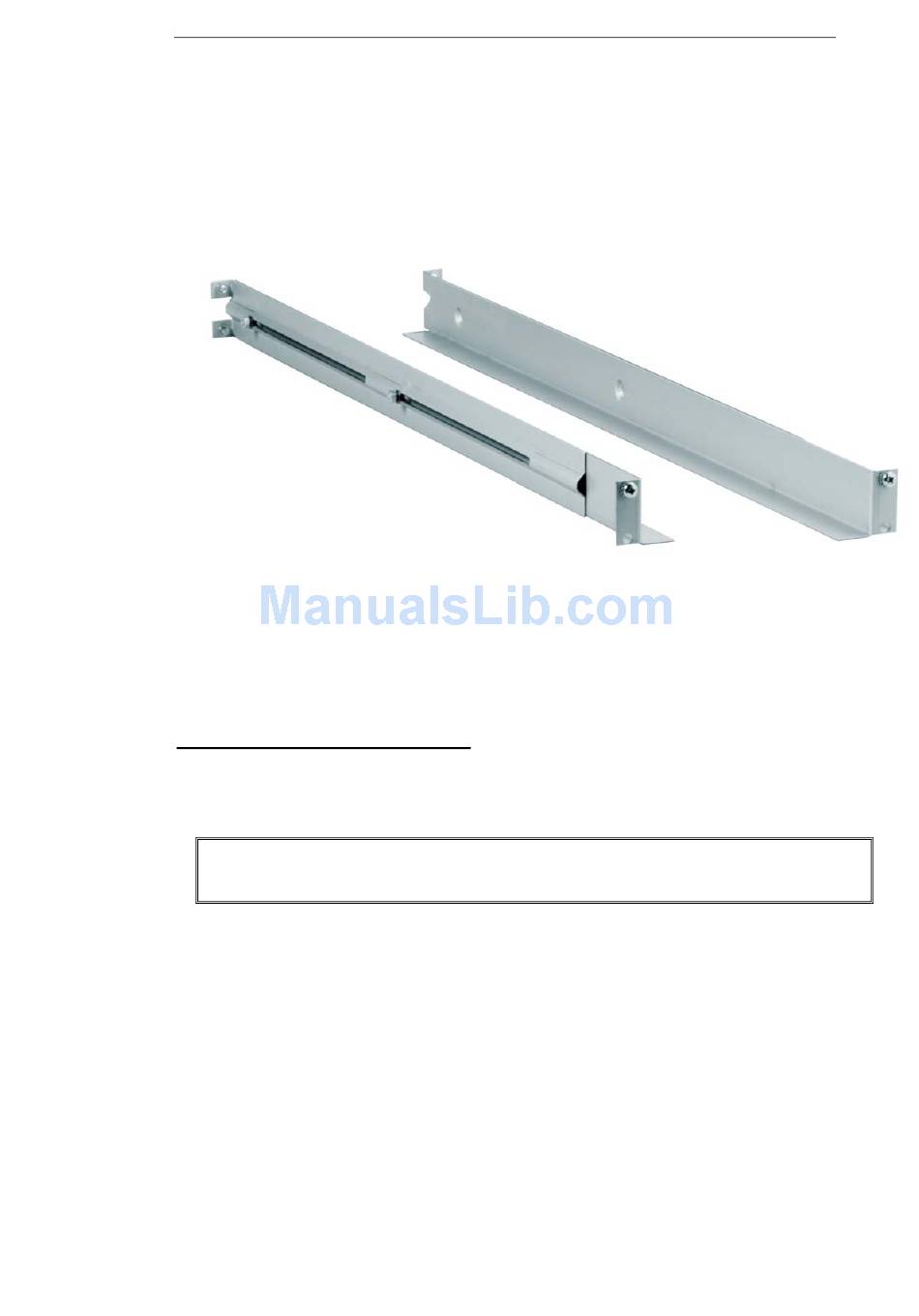

Figure 3.1 Rack Mounting kit
Installing the Rack Mounting Kit
• Determine the proper position of the rails in the rack.
Caution: Consider rack stability when deciding where to place the StorageLoader,
hazardous conditions can be the result of uneven mechanical loading of a rack.
StorageLoader Installation and User Manual
Operation and Configuration
Rail Right Assembly
Front
13
