Display - Icom IC-440N Instruction Manual

2
UNIT DESCRIPTION
■

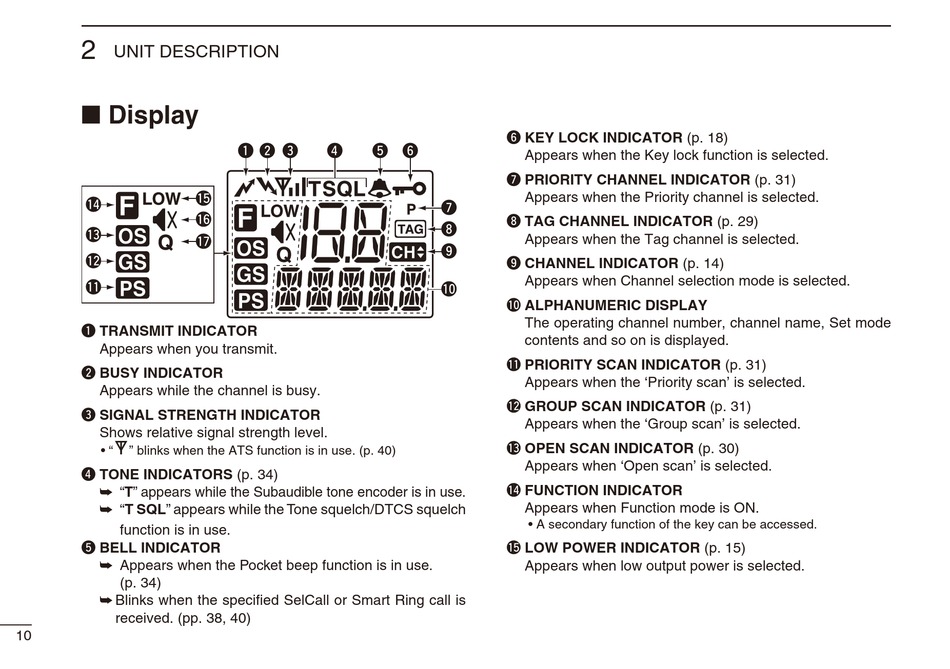

Display

!4
!3
!2
!1
q TRANSMIT INDICATOR
  Appears when you transmit.
w BUSY INDICATOR
 Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
 Shows relative signal strength level.
• " " blinks when the ATS function is in use. (p. 40)
r TONE INDICATORS (p. 34)
➥ "T" appears while the Subaudible tone encoder is in use.
➥ T SQL" appears while the Tone squelch/DTCS squelch
"
function is in use.
t BELL INDICATOR
➥
Appears when the Pocket beep function is in use.
(p. 34)
➥ Blinks when the specifi ed SelCall or Smart Ring call is
received. (pp. 38, 40)
10
q w e r t
!5
!6
!7
y KEY LOCK INDICATOR (p. 18)
y
 Appears when the Key lock function is selected.
u PRIORITY CHANNEL INDICATOR (p. 31)
 Appears when the Priority channel is selected.
u
i TAG CHANNEL INDICATOR (p. 29)
i
 Appears when the Tag channel is selected.
o
o CHANNEL INDICATOR (p. 14)
 Appears when Channel selection mode is selected.
!0
!0 ALPHANUMERIC DISPLAY
The operating channel number, channel name, Set mode
contents and so on is displayed.
!1 PRIORITY SCAN INDICATOR (p. 31)
 Appears when the 'Priority scan' is selected.
!2 GROUP SCAN INDICATOR (p. 31)
Appears when the 'Group scan' is selected.
!3 OPEN SCAN INDICATOR (p. 30)
 Appears when 'Open scan' is selected.
!4 FUNCTION INDICATOR
 Appears when Function mode is ON.
• A secondary function of the key can be accessed.
!5 LOW POWER INDICATOR (p. 15)
Appears when low output power is selected.
