Dc Power Supply - Icom IC-440N Instruction Manual

1

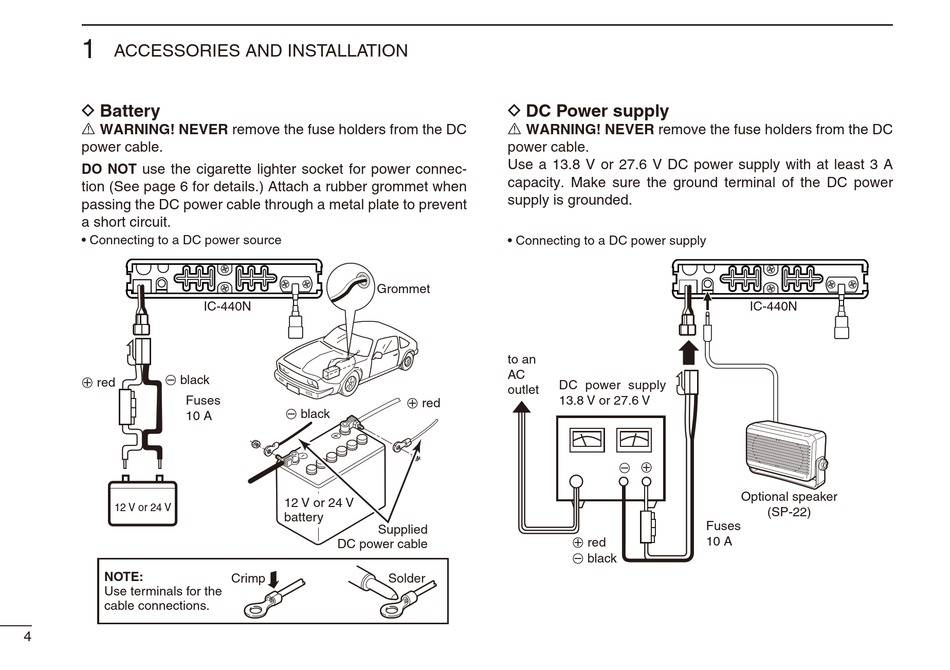

ACCESSORIES AND INSTALLATION
D
Battery
R WARNING! NEVER remove the fuse holders from the DC
power cable.
DO NOT use the cigarette lighter socket for power connec-
tion (See page 6 for details.) Attach a rubber grommet when
passing the DC power cable through a metal plate to prevent
a short circuit.
• Connecting to a DC power source
_ black
+ red
Fuses
10 A
12 V or 24 V
NOTE:
Use terminals for the
cable connections.
4
Grommet
IC-440N
_ black
12 V or 24 V
battery
Supplied
DC power cable
Crimp
D

DC Power supply

R WARNING! NEVER remove the fuse holders from the DC
power cable.
Use a 13.8 V or 27.6 V DC power supply with at least 3 A
capacity. Make sure the ground terminal of the DC power
supply is grounded.
• Connecting to a DC power supply
to an
AC
DC power supply
outlet
+ red 13.8 V or 27.6 V
Solder
IC-440N
_ +
Optional speaker
Fuses
+ red
10 A
_ black
(SP-22)
