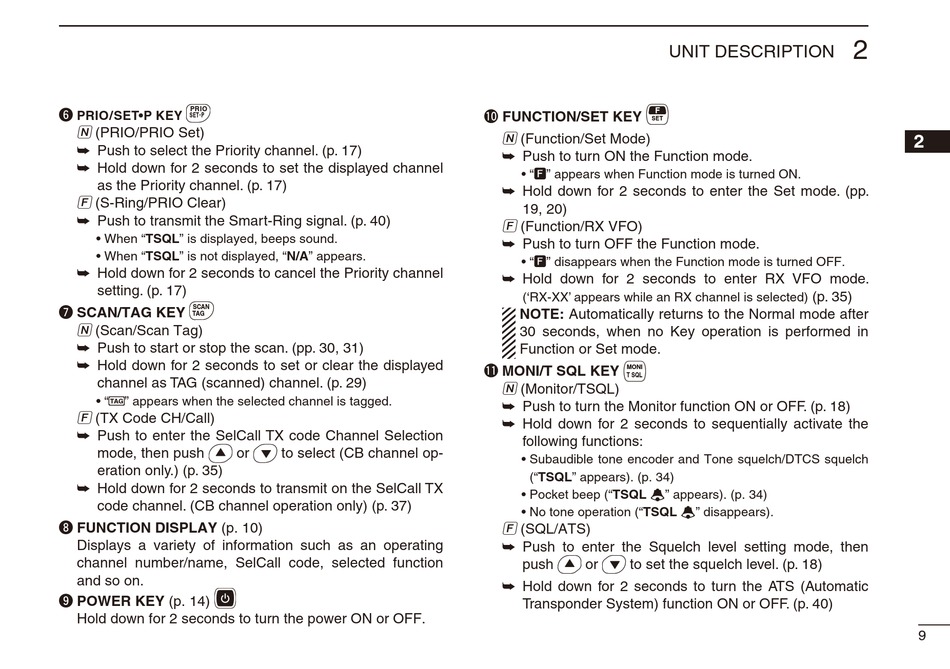

Icom IC-440N Instruction Manual page 15

y PRIO
PRIO/SET•P KEY
SET P
 N (PRIO/PRIO Set)
➥
Push to select the Priority channel. (p. 17)
➥
Hold down for 2 seconds to set the displayed channel
as the Priority channel. (p. 17)
 F (S-Ring/PRIO Clear)
➥
Push to transmit the Smart-Ring signal. (p. 40)
• When "TSQL" is displayed, beeps sound.
• When "TSQL" is not displayed, "N/A" appears.
➥
Hold down for 2 seconds to cancel the Priority channel
setting. (p. 17)
u SCAN/TAG KEY SCAN
TAG
 N (Scan/Scan Tag)
➥
Push to start or stop the scan. (pp. 30, 31)
➥
Hold down for 2 seconds to set or clear the displayed
channel as TAG (scanned) channel. (p. 29)
• " " appears when the selected channel is tagged.
 F (TX Code CH/Call)
➥
Push to enter the SelCall TX code Channel Selection
mode, then push or
eration only.) (p. 35)
➥
Hold down for 2 seconds to transmit on the SelCall TX
code channel. (CB channel operation only) (p. 37)
i FUNCTION DISPLAY (p. 10)
Displays a variety of information such as an operating
channel number/name, SelCall code, selected function
and so on.
o POWER KEY (p. 14)
Hold down for 2 seconds to turn the power ON or OFF.
to select (CB channel op-
!0 FUNCTION/SET KEY F
SET
 N (Function/Set Mode)
➥
Push to turn ON the Function mode.
• "F" appears when Function mode is turned ON.
➥
Hold down for 2 seconds to enter the Set mode. (pp.
19, 20)
 F (Function/RX VFO)
➥
Push to turn OFF the Function mode.
• "F" disappears when the Function mode is turned OFF.
➥
Hold down for 2 seconds to enter RX VFO mode.
('RX-XX' appears while an RX channel is selected)
NOTE: Automatically returns to the Normal mode after
30 seconds, when no Key operation is performed in
Function or Set mode.
!1 MONI/T SQL KEY
MONI
T SQL
 N (Monitor/TSQL)
➥
Push to turn the Monitor function ON or OFF. (p. 18)
➥
Hold down for 2 seconds to sequentially activate the
following functions:
• Subaudible tone encoder and Tone squelch/DTCS squelch
("TSQL" appears). (p. 34)
• Pocket beep ("TSQL ë" appears). (p. 34)
• No tone operation ("TSQL ë" disappears).
 F (SQL/ATS)
➥
Push to enter the Squelch level setting mode, then
push or to set the squelch level. (p. 18)
➥
Hold down for 2 seconds to turn the ATS (Automatic
Transponder System) function ON or OFF. (p. 40)
UNIT DESCRIPTION
(p. 35)
2
2
9
