UNIT DESCRIPTION

■

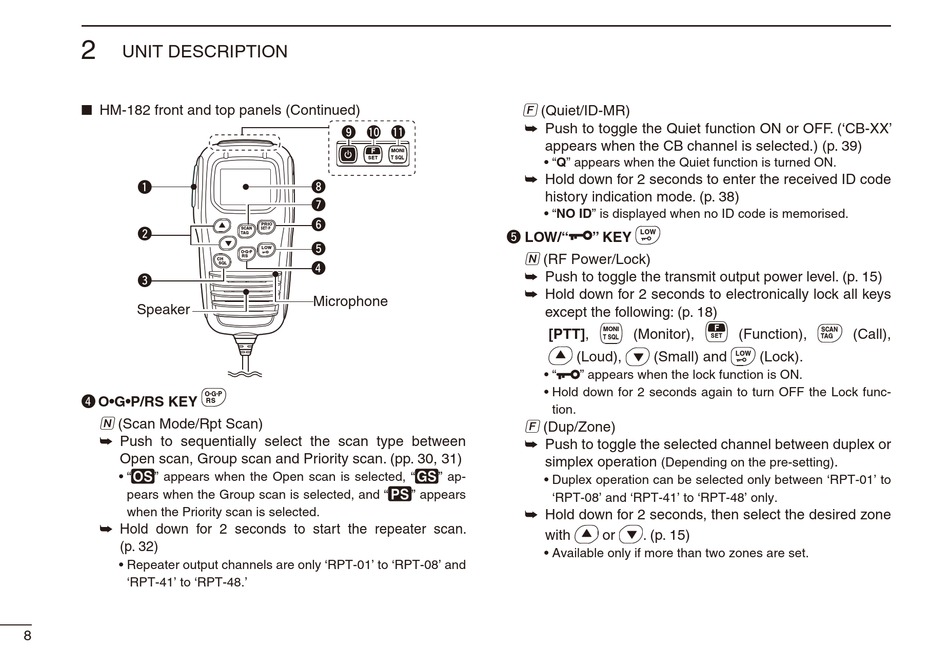

HM-182 front and top panels (Continued)
q
w
e
Speaker
r O•G•P/RS KEY
 N (Scan Mode/Rpt Scan)
➥
Push to sequentially select the scan type between
Open scan, Group scan and Priority scan. (pp. 30, 31)
• " " appears when the Open scan is selected, "
pears when the Group scan is selected, and "
when the Priority scan is selected.
➥ Hold down for 2 seconds to start the repeater scan.
(p. 32)
• Repeater output channels are only 'RPT-01' to 'RPT-08' and
'RPT-41' to 'RPT-48.'
8
o !0 !1
F
SET
i
u
y
PRIO
SCAN SET P
TAG
t
LOW
O G P
RS
CH
r
SQL
Microphone
O G P
RS
 F (Quiet/ID-MR)
➥
Push to toggle the Quiet function ON or OFF. ('CB-XX'
appears when the CB channel is selected.) (p. 39)
MONI
T SQL
• "Q" appears when the Quiet function is turned ON.
➥
Hold down for 2 seconds to enter the received ID code
history indication mode. (p. 38)
• "NO ID" is displayed when no ID code is memorised.
t LOW/"
 N (RF Power/Lock)
➥
Push to toggle the transmit output power level. (p. 15)
➥
Hold down for 2 seconds to electronically lock all keys
except the following: (p. 18)
[PTT],
• "
• Hold down for 2 seconds again to turn OFF the Lock func-
tion.
 F (Dup/Zone)
➥
Push to toggle the selected channel between duplex or
simplex operation
" ap-
• Duplex operation can be selected only between 'RPT-01' to
" appears
'RPT-08' and 'RPT-41' to 'RPT-48' only.
➥
Hold down for 2 seconds, then select the desired zone
with
• Available only if more than two zones are set.
LOW
" KEY
F
MONI
(Monitor), (Function),
SET
T SQL
(Loud), (Small) and LOW
" appears when the lock function is ON.
(Depending on the pre-setting)
or . (p. 15)
SCAN
(Call),
TAG
(Lock).
.
