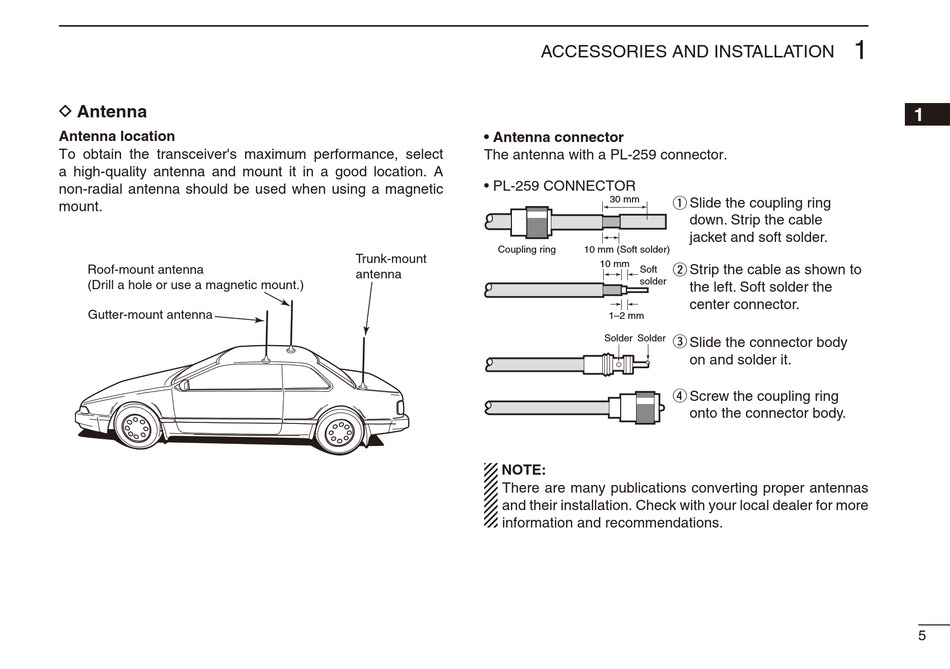

Antenna
Antenna location
To obtain the transceiver's maximum performance, select
a high-quality antenna and mount it in a good location. A
non-radial antenna should be used when using a magnetic
mount.
Roof-mount antenna
(Drill a hole or use a magnetic mount.)
Gutter-mount antenna
• Antenna connector
The antenna with a PL-259 connector.
• PL-259 CONNECTOR
Coupling ring
Trunk-mount
antenna
NOTE:
There are many publications converting proper antennas
and their installation. Check with your local dealer for more
information and recommendations.
ACCESSORIES AND INSTALLATION
q
30 mm
Slide the coupling ring
down. Strip the cable
jacket and soft solder.
10 mm (Soft solder)
10 mm
w
Strip the cable as shown to
Soft
solder
the left. Soft solder the
center connector.
1–2 mm
e
Solder Solder
Slide the connector body
on and solder it.
r
Screw the coupling ring
onto the connector body.
1
1
5
