RealPresence Collaboration Server (RMX) 1500 Hardware Guide

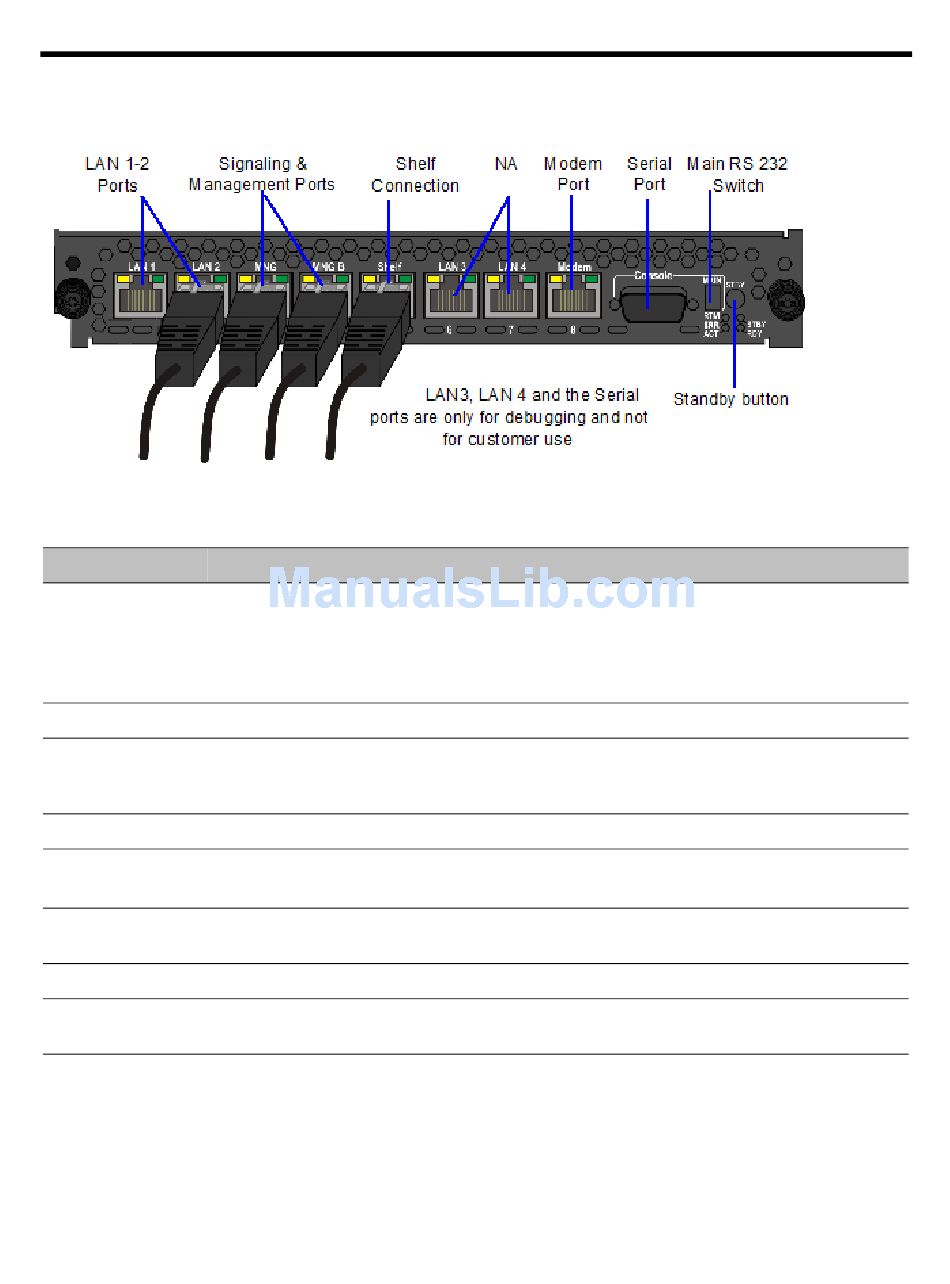

Collaboration Server (RMX) 1500 RTM IP Rear Panel Layout
The following items appear on the Collaboration Server (RMX) 1500 rear panel:
RMX 1500 Rear Panel - RTM IP 1500 Component Description
Item Description
LAN 1 port Optional. LAN (Media) Connection. With Multiple networks and LAN redundancy
configurations, LAN 1 port is used.
One Media IP address is available. Always use LAN 2 port if using a single LAN network
connection. For more information, see RealPresence® Collaboration Server (RMX)
1500/1800/2000/4000 Administrator's Guide
LAN 2 port LAN (Media) connection. One Media IP address is available.
MNG port Optional. Signaling connection. This port is used for Signaling and Management
Redundancy. For more information, see RealPresence® Collaboration Server (RMX)
1500/1800/2000/4000 Administrator's Guide,
MNGB port Management connection for Web Client and RMX Manager.
LAN 3/4 ports Not Available (NA).
Note: LAN 3/4 are covered with a plastic cap that should not be removed.
Shelf (Manager) Optional. Shelf Manager connection.
port
Modem port Internal IP connection, for debugging purposes only.
Serial (RS 232) For debugging purposes only. Enables print-outs of various LOGs from RTM IP 1500 and
port Card Manager.
MAIN/RTM Selection of the connection type for the RS-232 port. When the switch is up - the serial port
connects to the MPMx card.
When the switch is down, connects to the RTM IP.
