RealPresence Collaboration Server (RMX) 1500 Hardware Guide

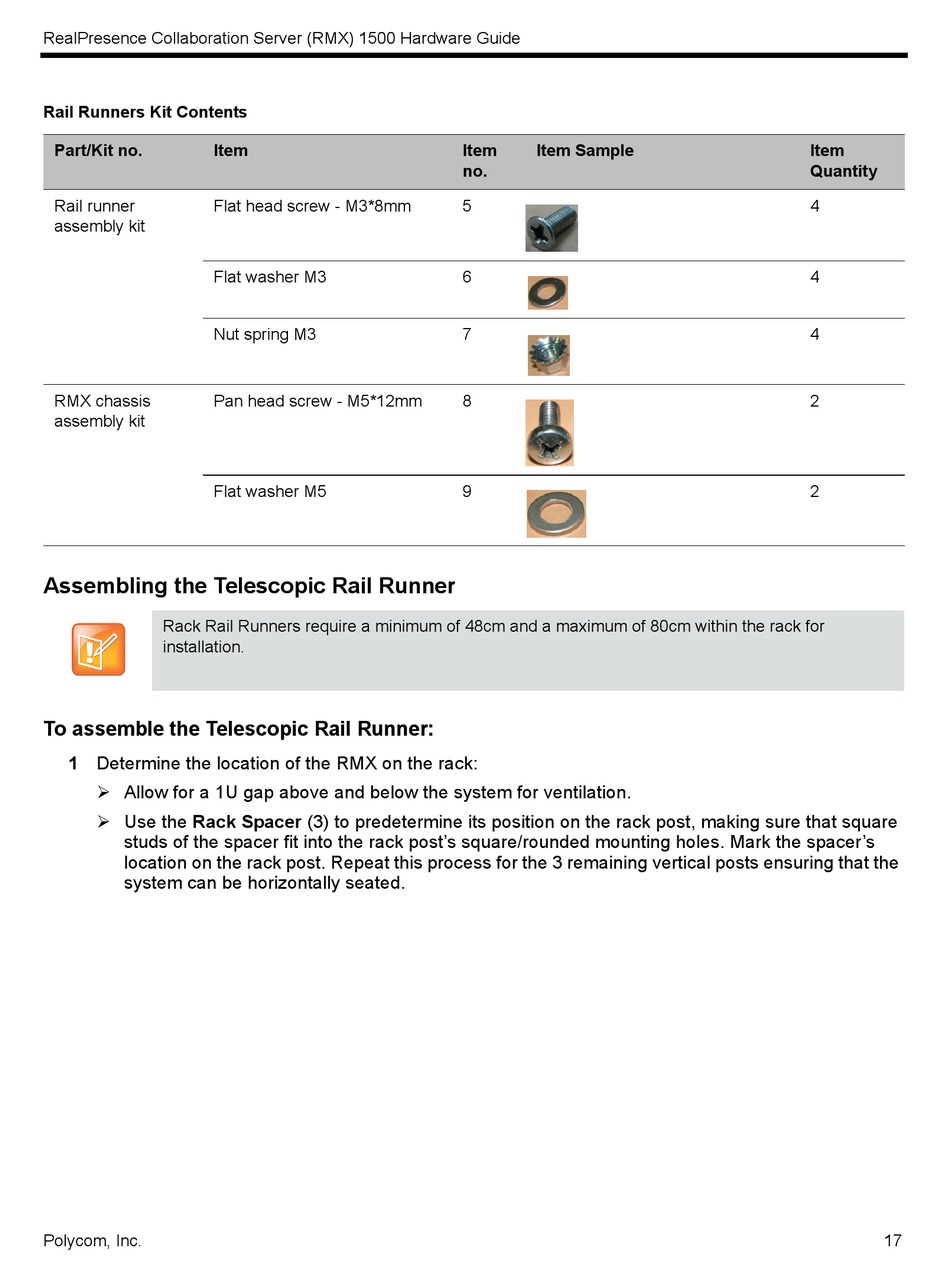

Rail Runners Kit Contents
Part/Kit no. Item
Rail runner Flat head screw - M3*8mm
assembly kit
Flat washer M3
Nut spring M3
RMX chassis Pan head screw - M5*12mm
assembly kit
Flat washer M5

Assembling the Telescopic Rail Runner

Rack Rail Runners require a minimum of 48cm and a maximum of 80cm within the rack for
installation.
To assemble the Telescopic Rail Runner:
1 Determine the location of the RMX on the rack:
 Allow for a 1U gap above and below the system for ventilation.
 Use the Rack Spacer (3) to predetermine its position on the rack post, making sure that square
studs of the spacer fit into the rack post's square/rounded mounting holes. Mark the spacer's
location on the rack post. Repeat this process for the 3 remaining vertical posts ensuring that the
system can be horizontally seated.
Polycom, Inc.
Item Item Sample
no.
5
6
7
8
9
Item
Quantity
4
4
4
2
2
17
