Front Panel Components

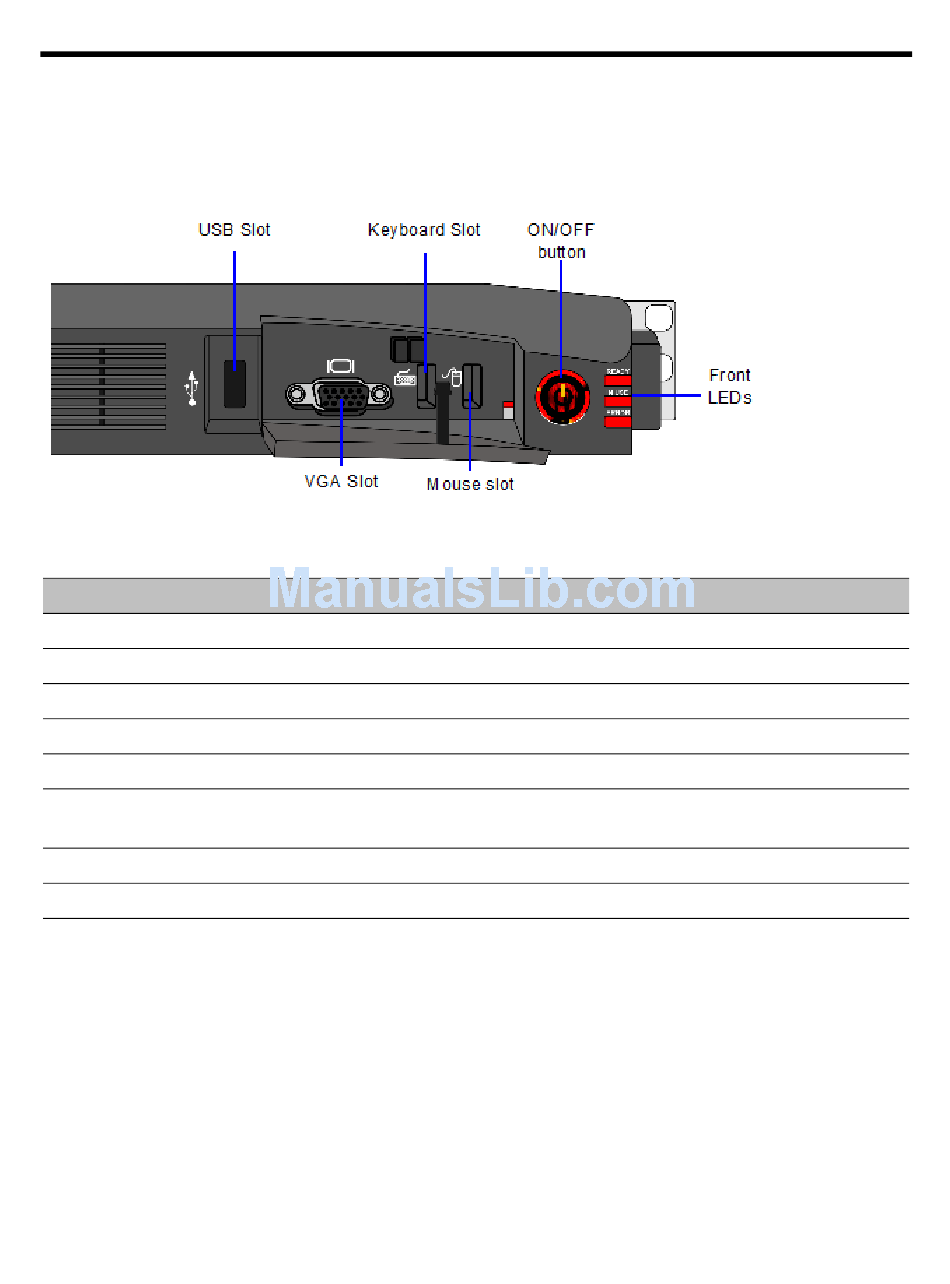

The components of the front panel are captioned in the following figure.
Collaboration Server (RMX) 1500 Front Panel
RealPresence Collaboration Server (RMX) 1500 Front Panel Description
SLOT/Button/LED
USB Slot
VGA Slot
Keyboard Slot
Mouse Slot
ON/OFF Button
READY LED
IN USE LED
ERROR LED
Polycom, Inc.
Description
USB key connection, used for first time configuration.
Monitor connection.
Keyboard connection.
Mouse connection.
Turns the RMX ON or OFF.
Orange - RMX Starting up.
Green - RMX ready/online.
Amber - In use, when a conference is active.
Red - Error.
24
