Components
On the RMX 1500, components are located on both the front and rear of the MCU as listed in
Table 1-6, "RMX 1500 Front Panel Description". For more information see the descriptions of
the "RealPresence Collaboration Server (RMX) 1500 Front Panel" on page
Collaboration Server (RMX) 1500 Rear Panel" on page 1-15.

RealPresence Collaboration Server (RMX) 1500 Front Panel

The front panel enables access to the RMX 1500 using a USB key, keyboard, mouse and VGA
connection.

Opening the RMX 1500 Front Panel

The RMX 1500 has a front panel which can be opened by pressing on the location shown in

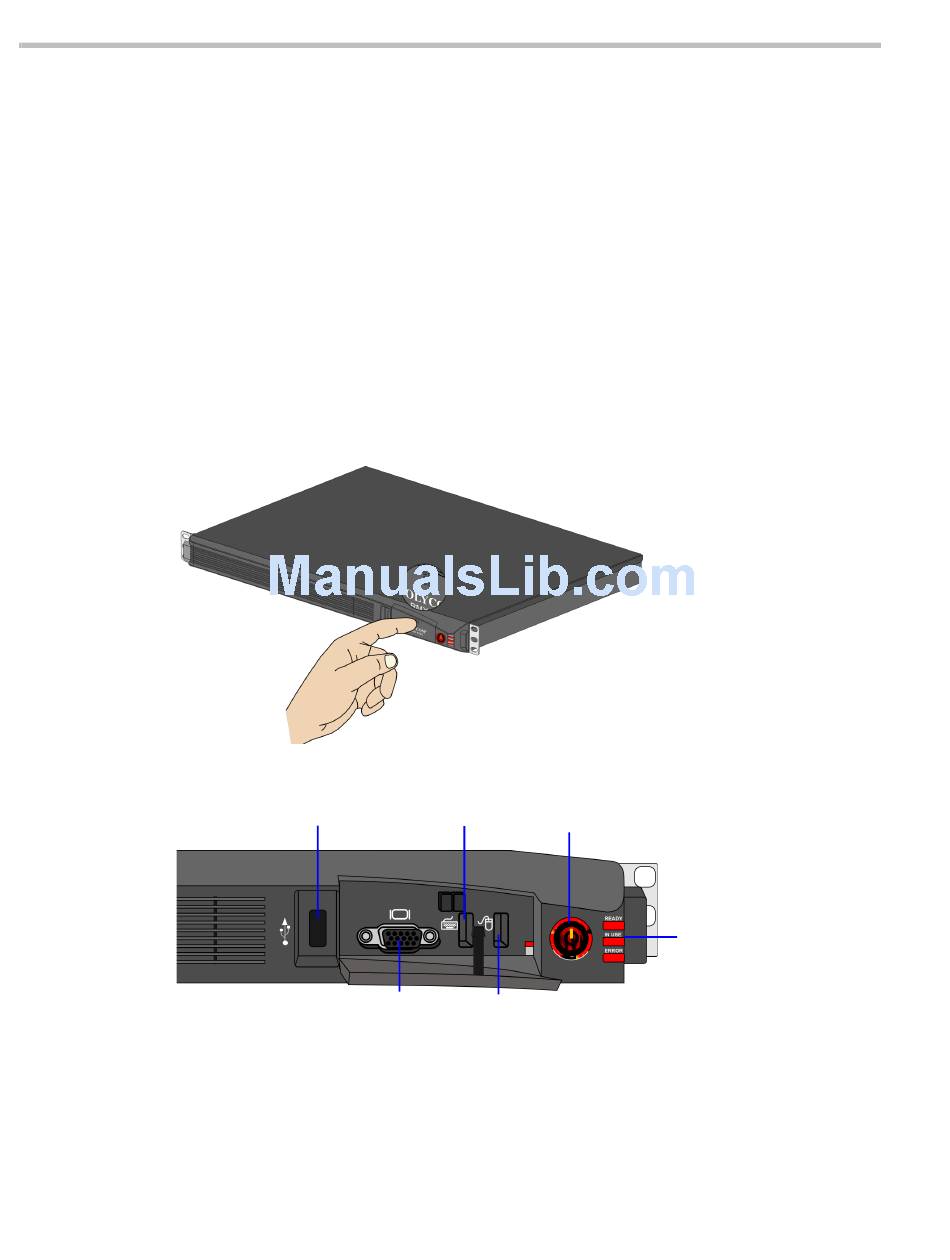

the following illustration:

Front Panel Components

Figure 1-7
1-14
USB Slot Keyboard Slot
VGA Slot
RMX 1500 Front Panel
ON/OFF
button
Mouse slot
1-14 and "RealPresence
Front
LEDs
Polycom, Inc.
