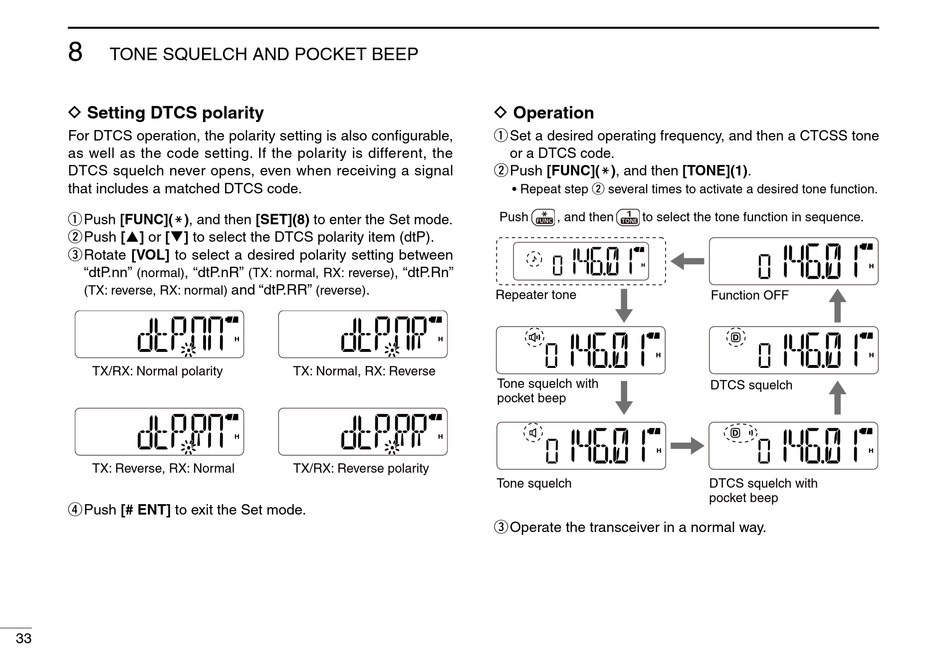

Setting Dtcs Polarity - Icom IC-V80 Instruction Manual

8
TONE SQUELCH AND POCKET BEEP
D Setting DTCS polarity
For DTCS operation, the polarity setting is also configurable,
as well as the code setting. If the polarity is different, the
DTCS squelch never opens, even when receiving a signal
that includes a matched DTCS code.
q Push [FUNC](M), and then [SET](8) to enter the Set mode.
w Push [] or [] to select the DTCS polarity item (dtP).
e Rotate [VOL] to select a desired polarity setting between
"dtP.nn" , "dtP.nR"
(normal)
(TX: reverse, RX: normal)
TX/RX: Normal polarity
TX: Reverse, RX: Normal
r Push [# ENT] to exit the Set mode.
33
, "dtP.Rn"
(TX: normal, RX: reverse)
and "dtP.RR" .
(reverse)
TX: Normal, RX: Reverse
TX/RX: Reverse polarity
D Operation
q Set a desired operating frequency, and then a CTCSS tone
or a DTCS code.
w Push [FUNC](M), and then [TONE](1).
• Repeat step w several times to activate a desired tone function.
Push , and then to select the tone function in sequence.
Repeater tone
Tone squelch with
pocket beep
Tone squelch
e Operate the transceiver in a normal way.
Function OFF
DTCS squelch
DTCS squelch with
pocket beep
