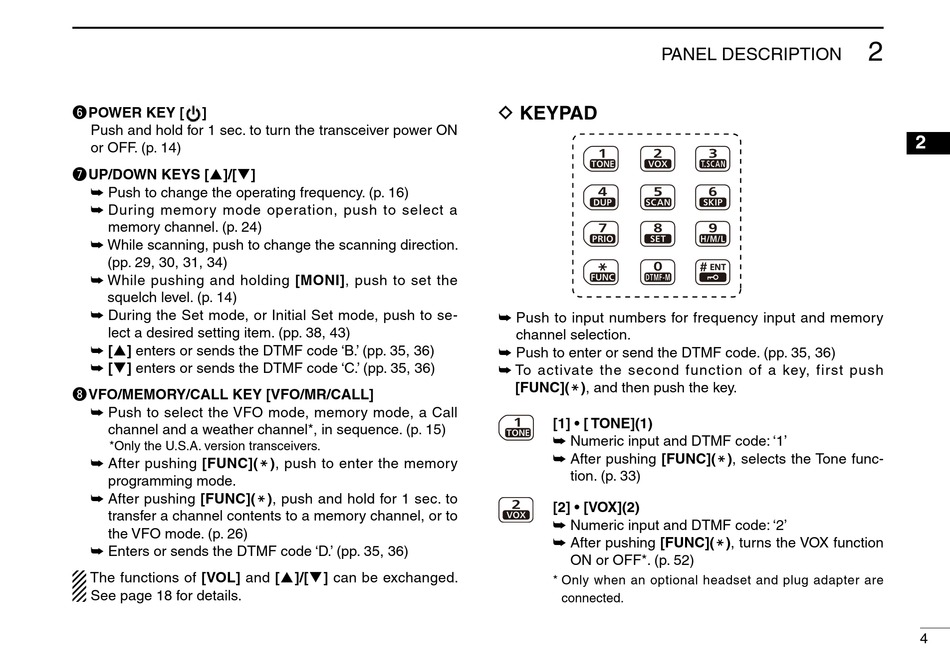

Icom IC-V80 Instruction Manual page 11

y POWER KEY [ ]
Push and hold for 1 sec. to turn the transceiver power ON
or OFF. (p. 14)
u UP/DOWN KEYS []/[]
➥ Push to change the operating frequency. (p. 16)
➥ During memory mode operation, push to select a
memory channel. (p. 24)
➥ While scanning, push to change the scanning direction.
(pp. 29, 30, 31, 34)
➥ While pushing and holding [MONI], push to set the
squelch level. (p. 14)
➥ During the Set mode, or Initial Set mode, push to se-
lect a desired setting item. (pp. 38, 43)
➥ [] enters or sends the DTMF code 'B.' (pp. 35, 36)
➥ [] enters or sends the DTMF code 'C.' (pp. 35, 36)
i VFO/MEMORY/CALL KEY [VFO/MR/CALL]
➥ Push to select the VFO mode, memory mode, a Call
channel and a weather channel*, in sequence. (p. 15)
*Only the U.S.A. version transceivers.
➥ After pushing [FUNC](M), push to enter the memory
programming mode.
➥ After pushing [FUNC](M), push and hold for 1 sec. to
transfer a channel contents to a memory channel, or to
the VFO mode. (p. 26)
➥ Enters or sends the DTMF code 'D.' (pp. 35, 36)
The functions of [VOL] and []/[] can be exchanged.
See page 18 for details.
PANEL DESCRIPTION
D KEYPAD
➥ Push to input numbers for frequency input and memory
channel selection.
➥ Push to enter or send the DTMF code. (pp. 35, 36)
➥ To activate the second function of a key, first push
[FUNC](M), and then push the key.
[1] • [ TONE](1)
➥ Numeric input and DTMF code: '1'
➥ After pushing [FUNC](M), selects the Tone func-
tion. (p. 33)
[2] • [VOX](2)
➥ Numeric input and DTMF code: '2'
➥ After pushing [FUNC](M), turns the VOX function
ON or OFF*. (p. 52)
* Only when an optional headset and plug adapter are
connected.
