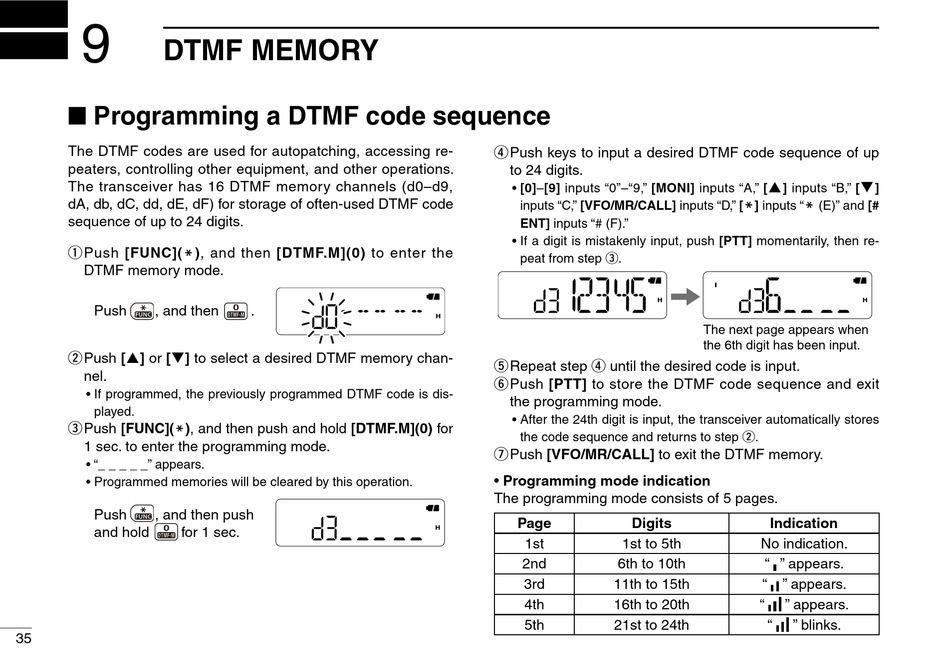

DTMF MEMORY

■ Programming a DTMF code sequence

The DTMF codes are used for autopatching, accessing re-
peaters, controlling other equipment, and other operations.
The transceiver has 16 DTMF memory channels (d0–d9,
dA, db, dC, dd, dE, dF) for storage of often-used DTMF code
sequence of up to 24 digits.
q Push [FUNC](M), and then [DTMF.M](0) to enter the
DTMF memory mode.
Push , and then
w Push [] or [] to select a desired DTMF memory chan-
nel.
• If programmed, the previously programmed DTMF code is dis-
played.
e Push [FUNC](M), and then push and hold [DTMF.M](0) for
1 sec. to enter the programming mode.
• "_ _ _ _ _" appears.
• Programmed memories will be cleared by this operation.
Push , and then push
and hold for 1 sec.
35
.
r Push keys to input a desired DTMF code sequence of up
to 24 digits.
• [0]–[9] inputs "0"–"9," [MONI] inputs "A," [
inputs "C," [VFO/MR/CALL] inputs "D," [
ENT] inputs "# (F)."
• If a digit is mistakenly input, push [PTT] momentarily, then re-
peat from step e.
t Repeat step r until the desired code is input.
y Push [PTT] to store the DTMF code sequence and exit
the programming mode.
• After the 24th digit is input, the transceiver automatically stores
the code sequence and returns to step w.
u Push [VFO/MR/CALL] to exit the DTMF memory.
• Programming mode indication
The programming mode consists of 5 pages.
Page Digits
1st 1st to 5th
2nd 6th to 10th
3rd 11th to 15th
4th 16th to 20th
5th 21st to 24th
 
] inputs "B," [ ]
M M
] inputs " (E)" and [#
The next page appears when
the 6th digit has been input.
Indication
No indication.
" " appears.
" " appears.
" " appears.
" " blinks.
