Scan Operation; Scan Types; Programmed Scan - Icom IC-V80 Instruction Manual

7

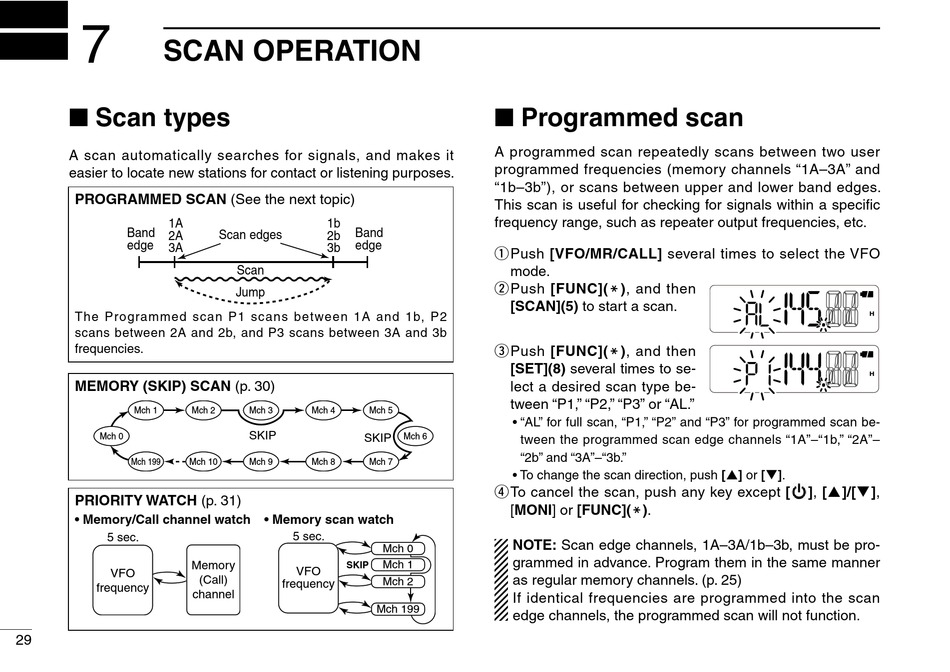

SCAN OPERATION

■ Scan types

A scan automatically searches for signals, and makes it
easier to locate new stations for contact or listening purposes.
PROGRAMMED SCAN (See the next topic)
1A
Band
2A
edge
3A
The Programmed scan P1 scans between 1A and 1b, P2
scans between 2A and 2b, and P3 scans between 3A and 3b
frequencies.
MEMORY (SKIP) SCAN (p. 30)
Mch 1 Mch 2
Mch 0
Mch 199 Mch 10
PRIORITY WATCH (p. 31)
• Memory/Call channel watch
5 sec.
Memory
VFO
frequency
channel
29
1b
Band
Scan edges
2b
edge
3b
Scan
Jump
Mch 3 Mch 4 Mch 5
SKIP
SKIP
Mch 9 Mch 8 Mch 7
• Memory scan watch
5 sec.
SKIP
VFO
(Call)
frequency
Mch 199

■ Programmed scan

A programmed scan repeatedly scans between two user
programmed frequencies (memory channels "1A–3A" and
"1b–3b"), or scans between upper and lower band edges.
This scan is useful for checking for signals within a specific
frequency range, such as repeater output frequencies, etc.
q Push [VFO/MR/CALL] several times to select the VFO
mode.
w Push [FUNC](M), and then
[SCAN](5) to start a scan.
e Push [FUNC](M), and then
[SET](8) several times to se-
lect a desired scan type be-
tween "P1," "P2," "P3" or "AL."
• "AL" for full scan, "P1," "P2" and "P3" for programmed scan be-
Mch 6
tween the programmed scan edge channels "1A"–"1b," "2A"–
"2b" and "3A"–"3b."
• To change the scan direction, push [] or [].
r To cancel the scan, push any key except [
[MONI] or [FUNC](M).
NOTE: Scan edge channels, 1A–3A/1b–3b, must be pro-
Mch 0
grammed in advance. Program them in the same manner
Mch 1
as regular memory channels. (p. 25)
Mch 2
If identical frequencies are programmed into the scan
edge channels, the programmed scan will not function.
], []/[],
