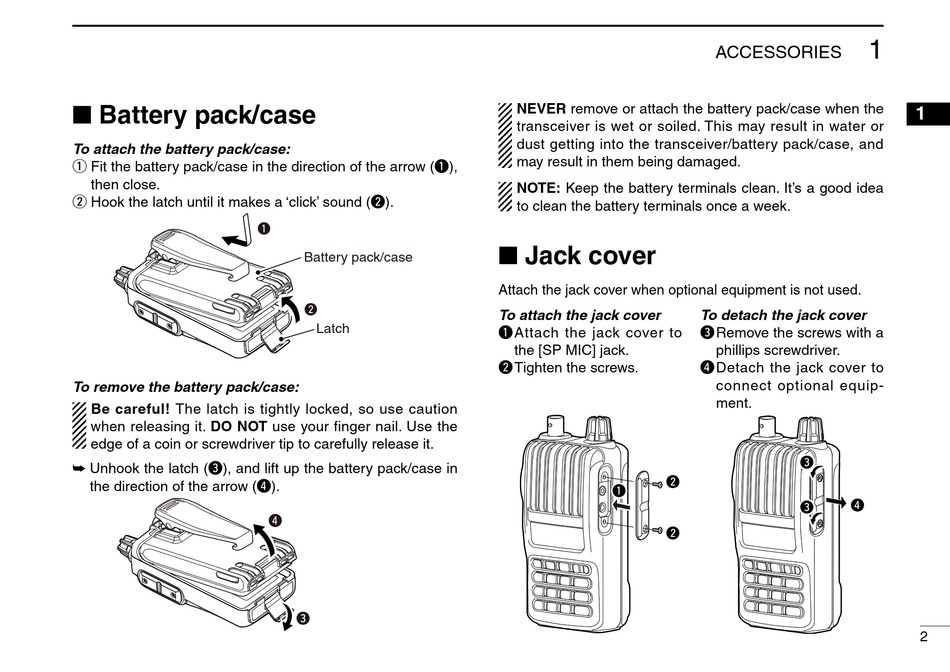

■ Battery pack/case

To attach the battery pack/case:
q Fit the battery pack/case in the direction of the arrow (q),
then close.
w Hook the latch until it makes a 'click' sound (w).
To remove the battery pack/case:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your finger nail. Use the
edge of a coin or screwdriver tip to carefully release it.
➥ Unhook the latch (e), and lift up the battery pack/case in
the direction of the arrow (r).
q
Battery pack/case
w
Latch
r
e
NEVER remove or attach the battery pack/case when the
transceiver is wet or soiled. This may result in water or
dust getting into the transceiver/battery pack/case, and
may result in them being damaged.
NOTE: Keep the battery terminals clean. It's a good idea
to clean the battery terminals once a week.

■ Jack cover

Attach the jack cover when optional equipment is not used.
To attach the jack cover
q Attach the jack cover to
the [SP MIC] jack.
w Tighten the screws.
w
q
w
