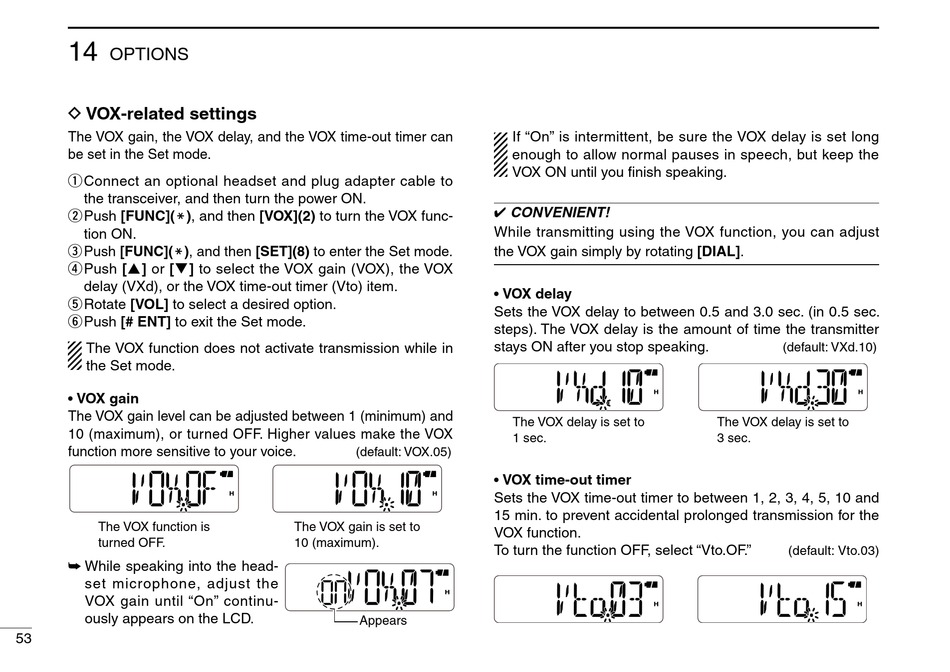

Icom IC-V80 Instruction Manual page 60

14
OPTIONS
D VOX-related settings
The VOX gain, the VOX delay, and the VOX time-out timer can
be set in the Set mode.
q Connect an optional headset and plug adapter cable to
the transceiver, and then turn the power ON.
w Push [FUNC](M), and then [VOX](2) to turn the VOX func-
tion ON.
e Push [FUNC](M), and then [SET](8) to enter the Set mode.
r Push [] or [] to select the VOX gain (VOX), the VOX
delay (VXd), or the VOX time-out timer (Vto) item.
t Rotate [VOL] to select a desired option.
y Push [# ENT] to exit the Set mode.
The VOX function does not activate transmission while in
the Set mode.
VOX gain
•
The VOX gain level can be adjusted between 1 (minimum) and
10 (maximum), or turned OFF. Higher values make the VOX
function more sensitive to your voice.
The VOX function is
turned OFF.
➥ While speaking into the head-
set microphone, adjust the
VOX gain until "On" continu-
ously appears on the LCD.
53
(default: VOX.05)
The VOX gain is set to
10 (maximum).
Appears
If "On" is intermittent, be sure the VOX delay is set long
enough to allow normal pauses in speech, but keep the
VOX ON until you finish speaking.
✔ CONVENIENT!
While transmitting using the VOX function, you can adjust
the VOX gain simply by rotating [DIAL].
VOX delay
•
Sets the VOX delay to between 0.5 and 3.0 sec. (in 0.5 sec.
steps). The VOX delay is the amount of time the transmitter
stays ON after you stop speaking.
The VOX delay is set to
1 sec.
VOX time-out timer
•
Sets the VOX time-out timer to between 1, 2, 3, 4, 5, 10 and
15 min. to prevent accidental prolonged transmission for the
VOX function.
To turn the function OFF, select "Vto.OF."
(default: VXd.10)
The VOX delay is set to
3 sec.
(default: Vto.03)
