Accessories; Antenna; Belt Clip - Icom IC-V80 Instruction Manual

1

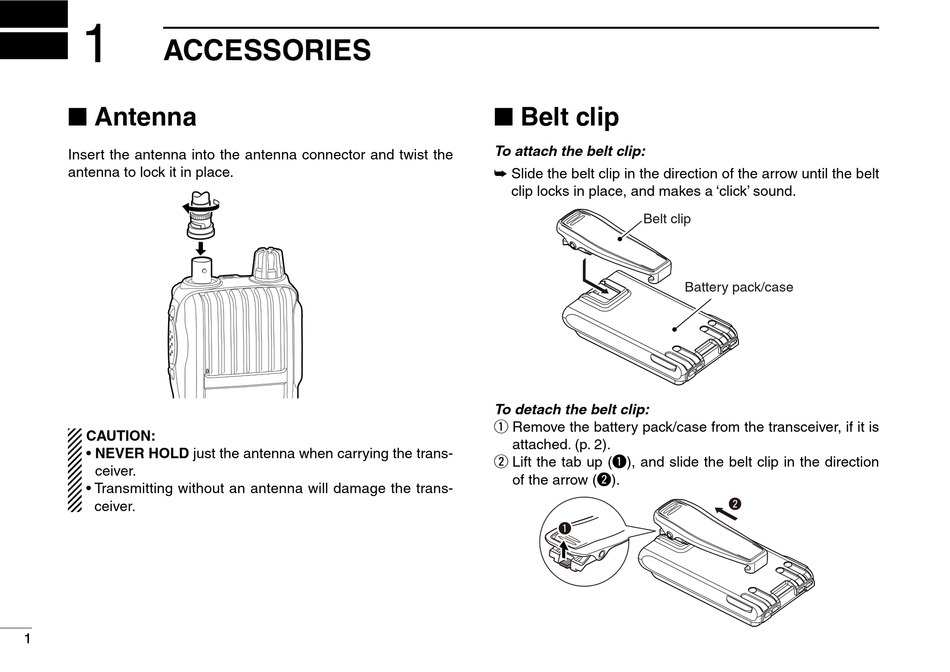

ACCESSORIES

■ Antenna

Insert the antenna into the antenna connector and twist the
antenna to lock it in place.
CAUTION:
• NEVER HOLD just the antenna when carrying the trans-
ceiver.
• Transmitting without an antenna will damage the trans-
ceiver.
1 1

■ Belt clip

To attach the belt clip:
➥ Slide the belt clip in the direction of the arrow until the belt
clip locks in place, and makes a 'click' sound.
Belt clip
To detach the belt clip:
q Remove the battery pack/case from the transceiver, if it is
attached. (p. 2).
w Lift the tab up (q), and slide the belt clip in the direction
of the arrow (w).
q
Battery pack/case
w
