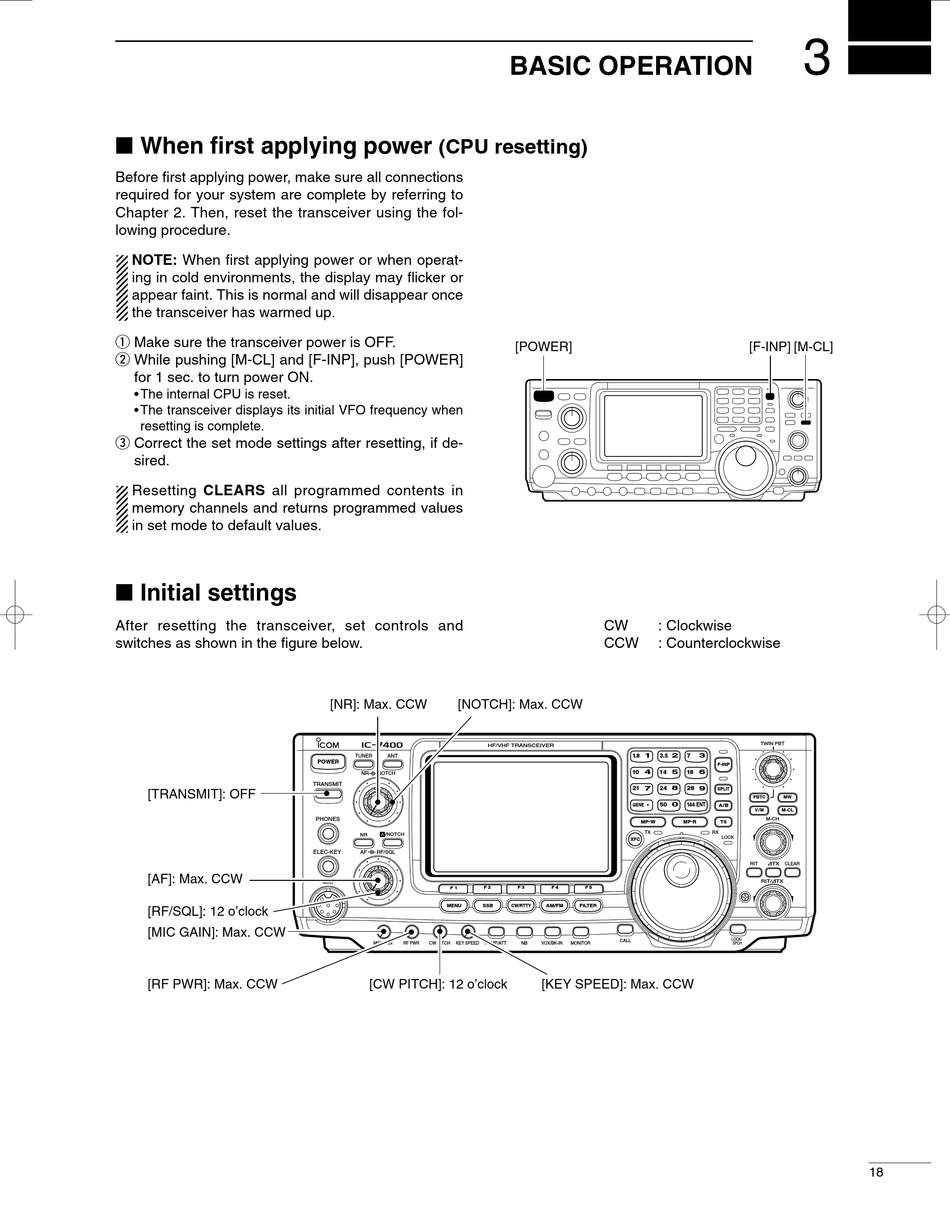

I When first applying power
Before first applying power, make sure all connections
required for your system are complete by referring to
Chapter 2. Then, reset the transceiver using the fol-
lowing procedure.
NOTE: When first applying power or when operat-
ing in cold environments, the display may flicker or
appear faint. This is normal and will disappear once
the transceiver has warmed up.
q Make sure the transceiver power is OFF.
w While pushing [M-CL] and [F-INP], push [POWER]
for 1 sec. to turn power ON.
• The internal CPU is reset.
• The transceiver displays its initial VFO frequency when
resetting is complete.
e Correct the set mode settings after resetting, if de-
sired.
Resetting CLEARS all programmed contents in
memory channels and returns programmed values
in set mode to default values.

I Initial settings

After resetting the transceiver, set controls and
switches as shown in the figure below.
[TRANSMIT]: OFF
[AF]: Max. CCW
[RF/SQL]: 12 o'clock
[MIC GAIN]: Max. CCW
[RF PWR]: Max. CCW
(CPU resetting)
[NR]: Max. CCW [NOTCH]: Max. CCW
i7400
TUNER ANT
POWER
NR NOTCH
TRANSMIT
PHONES
A
NR /NOTCH
ELEC-KEY AF RF/SQL
MIC
F 1
MENU
MIC GAIN RF PWR CW PITCH KEY SPEED
[CW PITCH]: 12 o'clock

BASIC OPERATION

[POWER]
CW
CCW
HF/VHF TRANSCEIVER
1.8 1
10 4
21 7
GENE
MP-W
TX
XFC
F 2 F 3 F 4 F 5
SSB CW/RTTY AM/FM FILTER
CALL
P.AMP/ATT NB VOX/BK-IN MONITOR
[KEY SPEED]: Max. CCW
3
[F-INP] [M-CL]
: Clockwise
: Counterclockwise
TWIN PBT
3.5 2 7 3
F-INP
14 5 18 6
24 8 28 9
SPLIT
PBTC MW
50 0 144 ENT
A /B
V / M
M-CL
M-CH
MP-R TS
RX
LOCK
RIT ∂TX CLEAR
RIT/∂TX
LOCK/
SPCH
