5
FUNCTIONS FOR RECEIVE

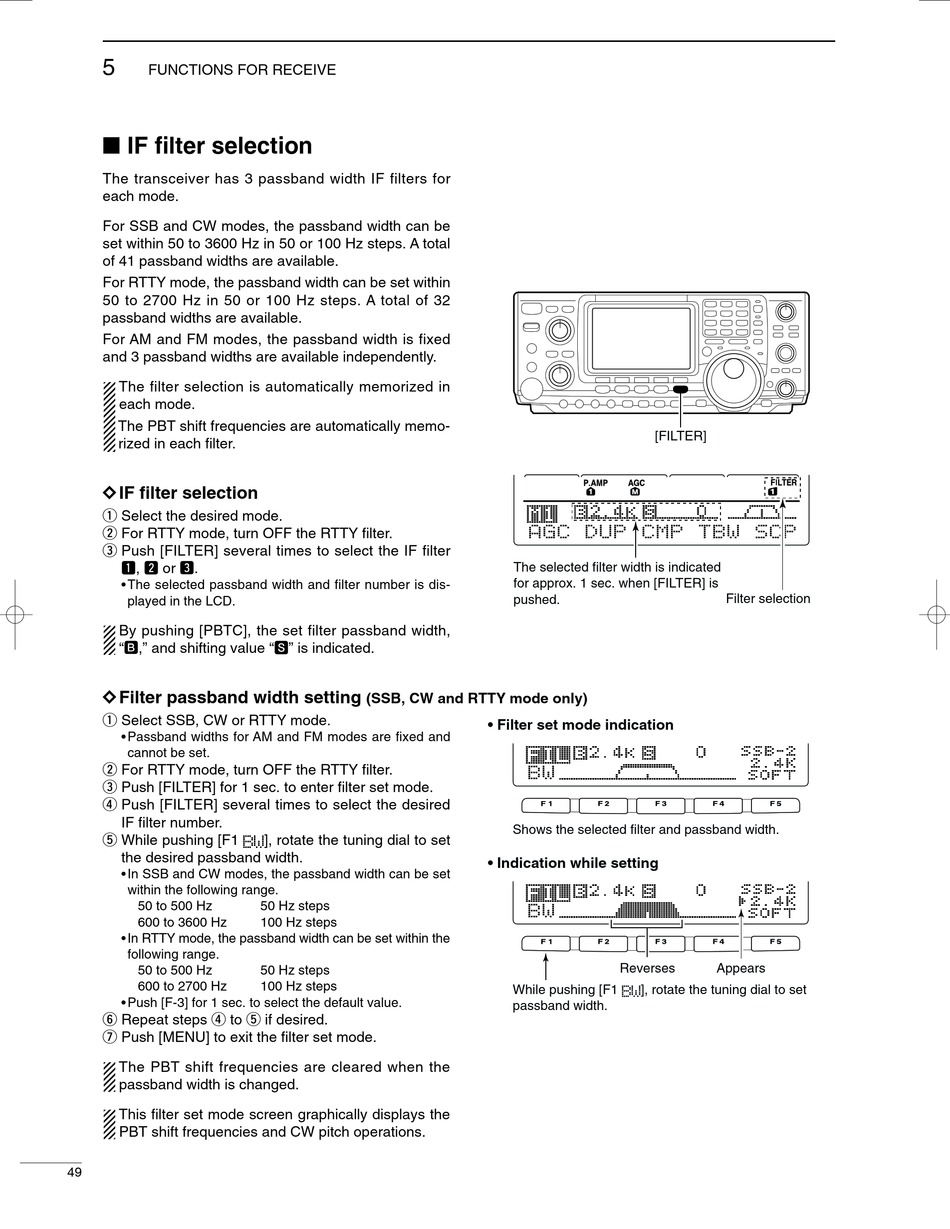

I IF filter selection
The transceiver has 3 passband width IF filters for
each mode.
For SSB and CW modes, the passband width can be
set within 50 to 3600 Hz in 50 or 100 Hz steps. A total
of 41 passband widths are available.
For RTTY mode, the passband width can be set within
50 to 2700 Hz in 50 or 100 Hz steps. A total of 32
passband widths are available.
For AM and FM modes, the passband width is fixed
and 3 passband widths are available independently.
The filter selection is automatically memorized in
each mode.
The PBT shift frequencies are automatically memo-
rized in each filter.
D D IF filter selection
q Select the desired mode.
w For RTTY mode, turn OFF the RTTY filter.
e Push [FILTER] several times to select the IF filter
1, 2 or 3.
• The selected passband width and filter number is dis-
played in the LCD.
By pushing [PBTC], the set filter passband width,
"B," and shifting value "S" is indicated.
D D Filter passband width setting
q Select SSB, CW or RTTY mode.
• Passband widths for AM and FM modes are fixed and
cannot be set.
w For RTTY mode, turn OFF the RTTY filter.
e Push [FILTER] for 1 sec. to enter filter set mode.
r Push [FILTER] several times to select the desired
IF filter number.
t While pushing [F1
the desired passband width.
• In SSB and CW modes, the passband width can be set
within the following range.
50 to 500 Hz
600 to 3600 Hz
• In RTTY mode, the passband width can be set within the
following range.
50 to 500 Hz
600 to 2700 Hz
• Push [F-3] for 1 sec. to select the default value.
y Repeat steps r to t if desired.
u Push [MENU] to exit the filter set mode.
The PBT shift frequencies are cleared when the
passband width is changed.
This filter set mode screen graphically displays the
PBT shift frequencies and CW pitch operations.
49
(SSB, CW and RTTY mode only)
], rotate the tuning dial to set
50 Hz steps
100 Hz steps
50 Hz steps
100 Hz steps
The selected filter width is indicated
for approx. 1 sec. when [FILTER] is
pushed.
• Filter set mode indication
Shows the selected filter and passband width.
• Indication while setting
Reverses
While pushing [F1 ], rotate the tuning dial to set
passband width.
[FILTER]
Filter selection
Appears
