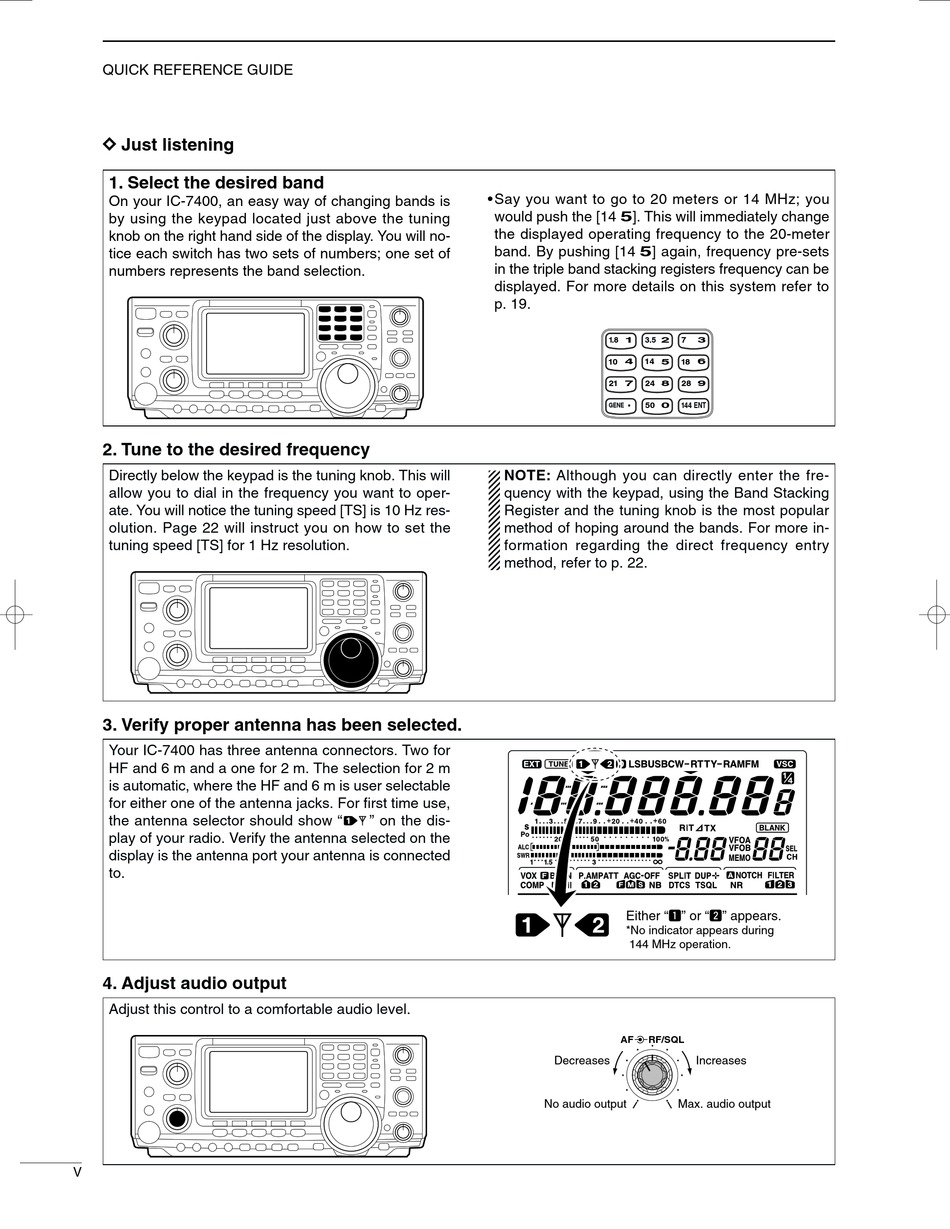

QUICK REFERENCE GUIDE
D D Just listening
1. Select the desired band
On your IC-7400, an easy way of changing bands is
by using the keypad located just above the tuning
knob on the right hand side of the display. You will no-
tice each switch has two sets of numbers; one set of
numbers represents the band selection.
2. Tune to the desired frequency
Directly below the keypad is the tuning knob. This will
allow you to dial in the frequency you want to oper-
ate. You will notice the tuning speed [TS] is 10 Hz res-
olution. Page 22 will instruct you on how to set the
tuning speed [TS] for 1 Hz resolution.
3. Verify proper antenna has been selected.
Your IC-7400 has three antenna connectors. Two for
HF and 6 m and a one for 2 m. The selection for 2 m
is automatic, where the HF and 6 m is user selectable
for either one of the antenna jacks. For first time use,
the antenna selector should show "
play of your radio. Verify the antenna selected on the
display is the antenna port your antenna is connected
to.
4. Adjust audio output
Adjust this control to a comfortable audio level.
V
• Say you want to go to 20 meters or 14 MHz; you
would push the [14 5]. This will immediately change
the displayed operating frequency to the 20-meter
band. By pushing [14 5] again, frequency pre-sets
in the triple band stacking registers frequency can be
displayed. For more details on this system refer to
p. 19.
NOTE: Although you can directly enter the fre-
quency with the keypad, using the Band Stacking
Register and the tuning knob is the most popular
method of hoping around the bands. For more in-
formation regarding the direct frequency entry
method, refer to p. 22.
" on the dis-
1.8 1 3.5 2 7 3
10 4 14 5 18 6
7 8 9
21 24 28
0 144 ENT
GENE 50
Either "1" or "2" appears.
*No indicator appears during
144 MHz operation.
AF RF/SQL
Decreases Increases
No audio output
Max. audio output
