3
BASIC OPERATION

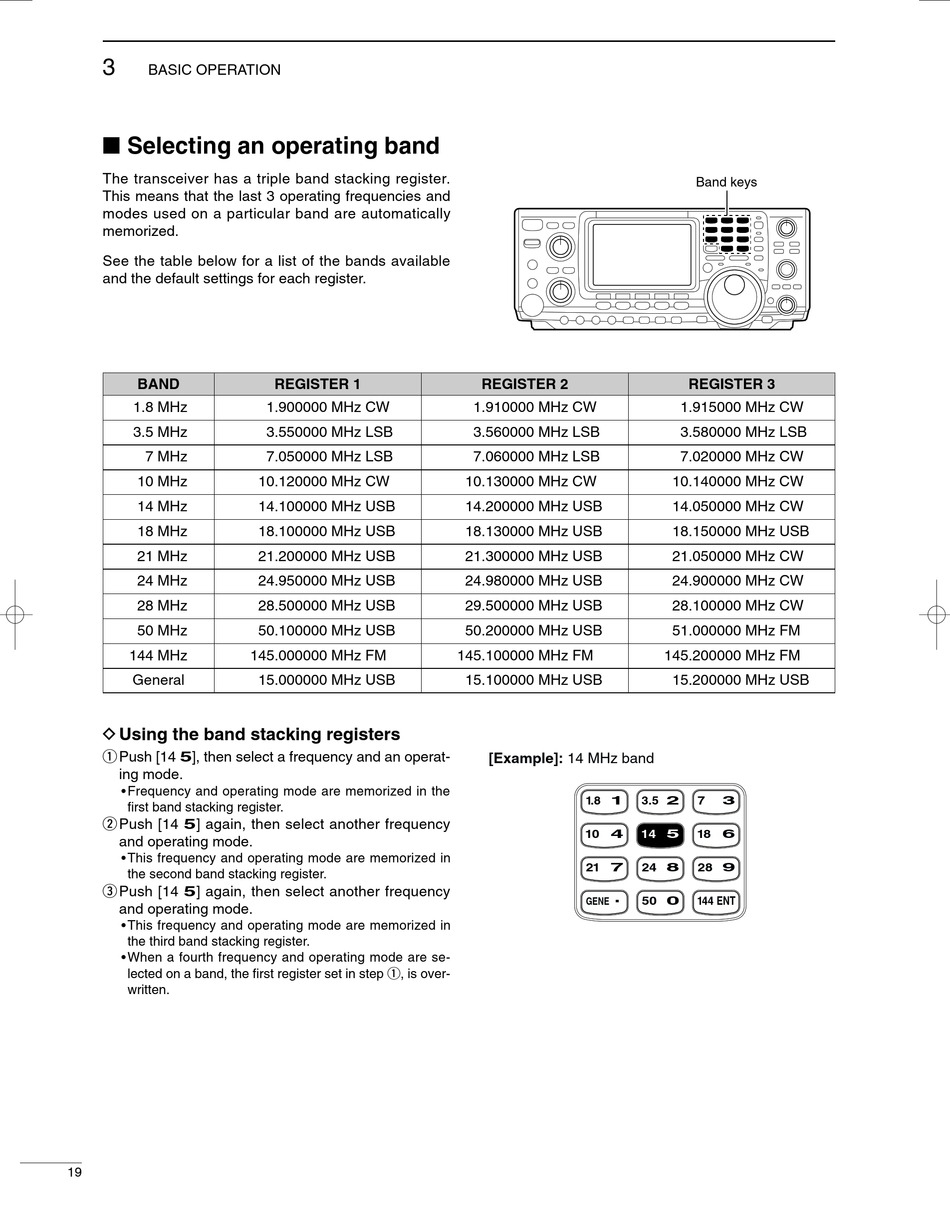

I Selecting an operating band

The transceiver has a triple band stacking register.
This means that the last 3 operating frequencies and
modes used on a particular band are automatically
memorized.
See the table below for a list of the bands available
and the default settings for each register.
BAND
1.8 MHz
3.5 MHz
7 MHz
10 MHz
14 MHz
18 MHz
21 MHz
24 MHz
28 MHz
50 MHz
144 MHz
General
D Using the band stacking registers
q Push [14 5], then select a frequency and an operat-
ing mode.
• Frequency and operating mode are memorized in the
first band stacking register.
w Push [14 5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the second band stacking register.
e Push [14 5] again, then select another frequency
and operating mode.
• This frequency and operating mode are memorized in
the third band stacking register.
• When a fourth frequency and operating mode are se-
lected on a band, the first register set in step q, is over-
written.
19
REGISTER 1
1.900000 MHz CW
3.550000 MHz LSB
7.050000 MHz LSB
10.120000 MHz CW
14.100000 MHz USB
18.100000 MHz USB
21.200000 MHz USB
24.950000 MHz USB
28.500000 MHz USB
50.100000 MHz USB
145.000000 MHz FM
15.000000 MHz USB
REGISTER 2
1.910000 MHz CW
3.560000 MHz LSB
7.060000 MHz LSB
10.130000 MHz CW
14.200000 MHz USB
18.130000 MHz USB
21.300000 MHz USB
24.980000 MHz USB
29.500000 MHz USB
50.200000 MHz USB
145.100000 MHz FM
15.100000 MHz USB
[Example]: 14 MHz band
1
1.8
4
10
21 7
GENE
Band keys
REGISTER 3
1.915000 MHz CW
3.580000 MHz LSB
7.020000 MHz CW
10.140000 MHz CW
14.050000 MHz CW
18.150000 MHz USB
21.050000 MHz CW
24.900000 MHz CW
28.100000 MHz CW
51.000000 MHz FM
145.200000 MHz FM
15.200000 MHz USB
2 3
3.5 7
5 6
14 18
24 8 28 9
0
50 144 ENT
