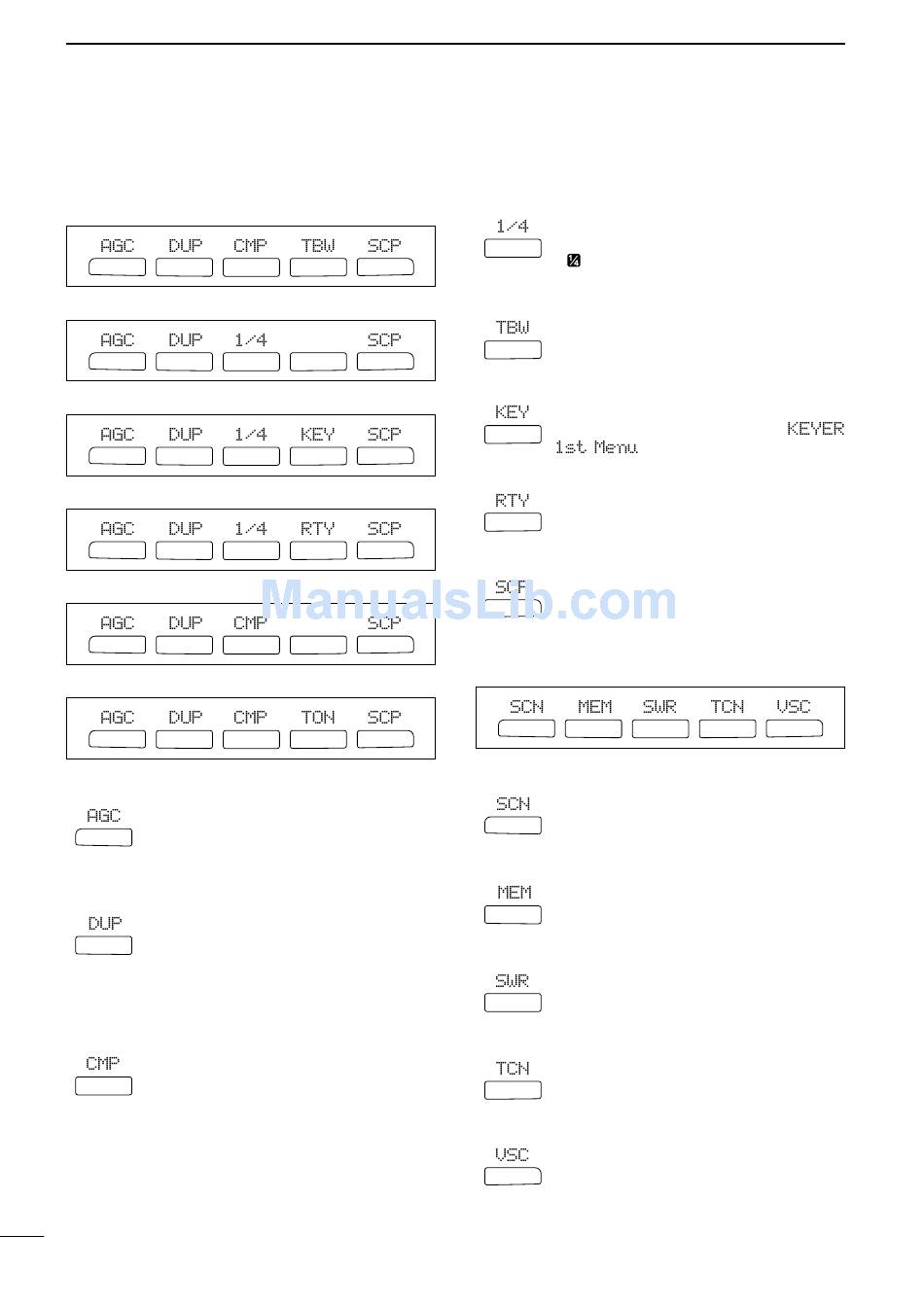

I Multi function switches

D D
M1 FUNCTIONS
During SSB operation
F 2
F 1
During SSB data operation
F 1 F 2
During CW operation
F 1 F 2
During RTTY operation
F 1 F 2
During AM operation
F 1 F 2
During FM operation
F 1 F 2
AGC (p. 48)
➥ Push momentarily to change the time
constant of the AGC circuit.
F 1
➥ Push for 1 sec. to enter to the AGC set
mode.
DUPLEX (p. 44)
➥ Push momentarily to select the duplex di-
rection or turn the function OFF.
F 2
• "DUP–" or "DUP+" indicator appears during
duplex operation.
➥ Push for 1 sec. to turn the one-touch re-
peater function ON/OFF.
SPEECH COMPRESSOR (p. 57)
➥ Push momentarily to turn the speech
compressor function ON/OFF.
F 3
• "COMP" indicator appears when the speech
compressor is ON.
➥ Push for 1 sec. to enter to the compres-
sor set mode.
11
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
F 3 F 4 F 5
1 ⁄ TUNING FUNCTION (p. 21)
4
Push to turn the
ON/OFF.
F 3
• " " indicator appears when the
function is ON.
TRANSMISSION BANDWIDTH (p. 57)
Push to select the transmission bandwidth.
• Bandwidth is selectable from narrow, middle
F 4
and wide.
MEMORY KEYER MENU (p. 29)
Push to select the memory keyer or keyer
send menu, depending on the
F 4
setting in the set mode (p. 86).
RTTY MENU (p. 36)
Push to select the RTTY menu.
F 4
BAND SCOPE FUNCTION (p. 46)
Push to select the band scope screen.
F 5
D D M2 FUNCTIONS
F 1 F 2
SCAN MENU (p. 69)
Push to select the scan menu.
F 1
MEMORY NAME MENU (p. 66)
Push to select the memory name screen.
F 2
SWR GRAPH FUNCTION (p. 60)
Push to indicate the SWR graph screen.
F 3
TONE CONTROL SET MODE (p. 88)
Push to enter the audio tone set mode.
F 4
VSC FUNCTION (p. 53)
Push to turn the VSC (Voice Squelch Con-
trol) function ON and OFF.
F 5
1 ⁄ tuning function
4
1 ⁄ tuning
4
F 3 F 4 F 5
