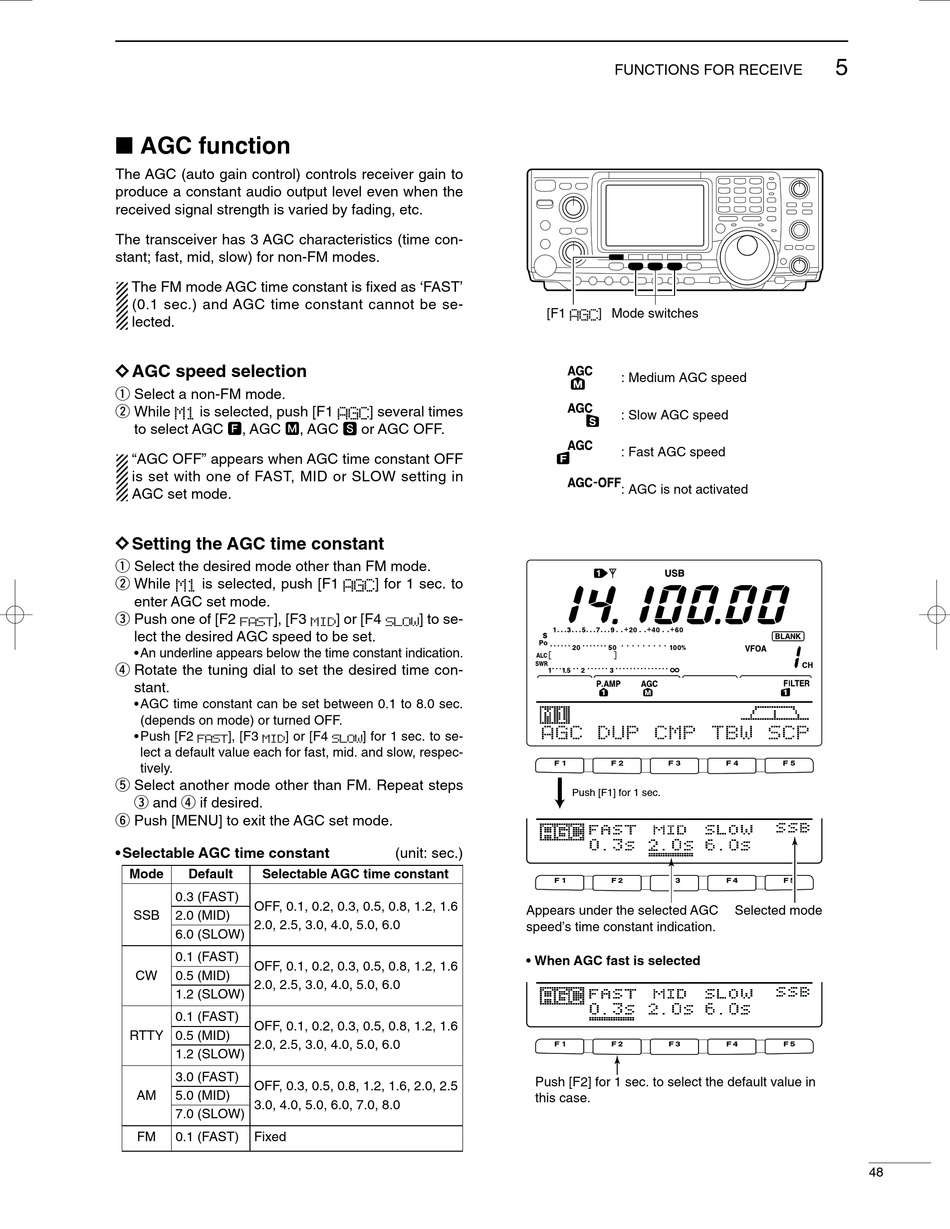

I AGC function

The AGC (auto gain control) controls receiver gain to
produce a constant audio output level even when the
received signal strength is varied by fading, etc.
The transceiver has 3 AGC characteristics (time con-
stant; fast, mid, slow) for non-FM modes.
The FM mode AGC time constant is fixed as 'FAST'
(0.1 sec.) and AGC time constant cannot be se-
lected.
D D AGC speed selection
q Select a non-FM mode.
w While
is selected, push [F1
to select AGC F, AGC M, AGC S or AGC OFF.
"AGC OFF" appears when AGC time constant OFF
is set with one of FAST, MID or SLOW setting in
AGC set mode.
D D Setting the AGC time constant
q Select the desired mode other than FM mode.
w While
is selected, push [F1
enter AGC set mode.
e Push one of [F2
], [F3
lect the desired AGC speed to be set.
• An underline appears below the time constant indication.
r Rotate the tuning dial to set the desired time con-
stant.
• AGC time constant can be set between 0.1 to 8.0 sec.
(depends on mode) or turned OFF.
• Push [F2 ], [F3
lect a default value each for fast, mid. and slow, respec-
tively.
t Select another mode other than FM. Repeat steps
e and r if desired.
y Push [MENU] to exit the AGC set mode.
• Selectable AGC time constant
Mode Default Selectable AGC time constant
0.3 (FAST)
OFF, 0.1, 0.2, 0.3, 0.5, 0.8, 1.2, 1.6
SSB 2.0 (MID)
2.0, 2.5, 3.0, 4.0, 5.0, 6.0
6.0 (SLOW)
0.1 (FAST)
OFF, 0.1, 0.2, 0.3, 0.5, 0.8, 1.2, 1.6
CW 0.5 (MID)
2.0, 2.5, 3.0, 4.0, 5.0, 6.0
1.2 (SLOW)
0.1 (FAST)
OFF, 0.1, 0.2, 0.3, 0.5, 0.8, 1.2, 1.6
RTTY 0.5 (MID)
2.0, 2.5, 3.0, 4.0, 5.0, 6.0
1.2 (SLOW)
3.0 (FAST)
OFF, 0.3, 0.5, 0.8, 1.2, 1.6, 2.0, 2.5
AM 5.0 (MID)
3.0, 4.0, 5.0, 6.0, 7.0, 8.0
7.0 (SLOW)
FM 0.1 (FAST) Fixed
] several times
] for 1 sec. to
] or [F4 ] to se-
] or [F4 ] for 1 sec. to se-
(unit: sec.)
FUNCTIONS FOR RECEIVE
[F1 ] Mode switches
: Medium AGC speed
: Slow AGC speed
: Fast AGC speed
: AGC is not activated
F 1 F 2 F 3
Push [F1] for 1 sec.
F 1 F 2 F 3
Appears under the selected AGC
speed's time constant indication.
• When AGC fast is selected
F 1 F 2 F 3
Push [F2] for 1 sec. to select the default value in
this case.
