Receive And Transmit - Icom IC-7400 Instruction Manual

4

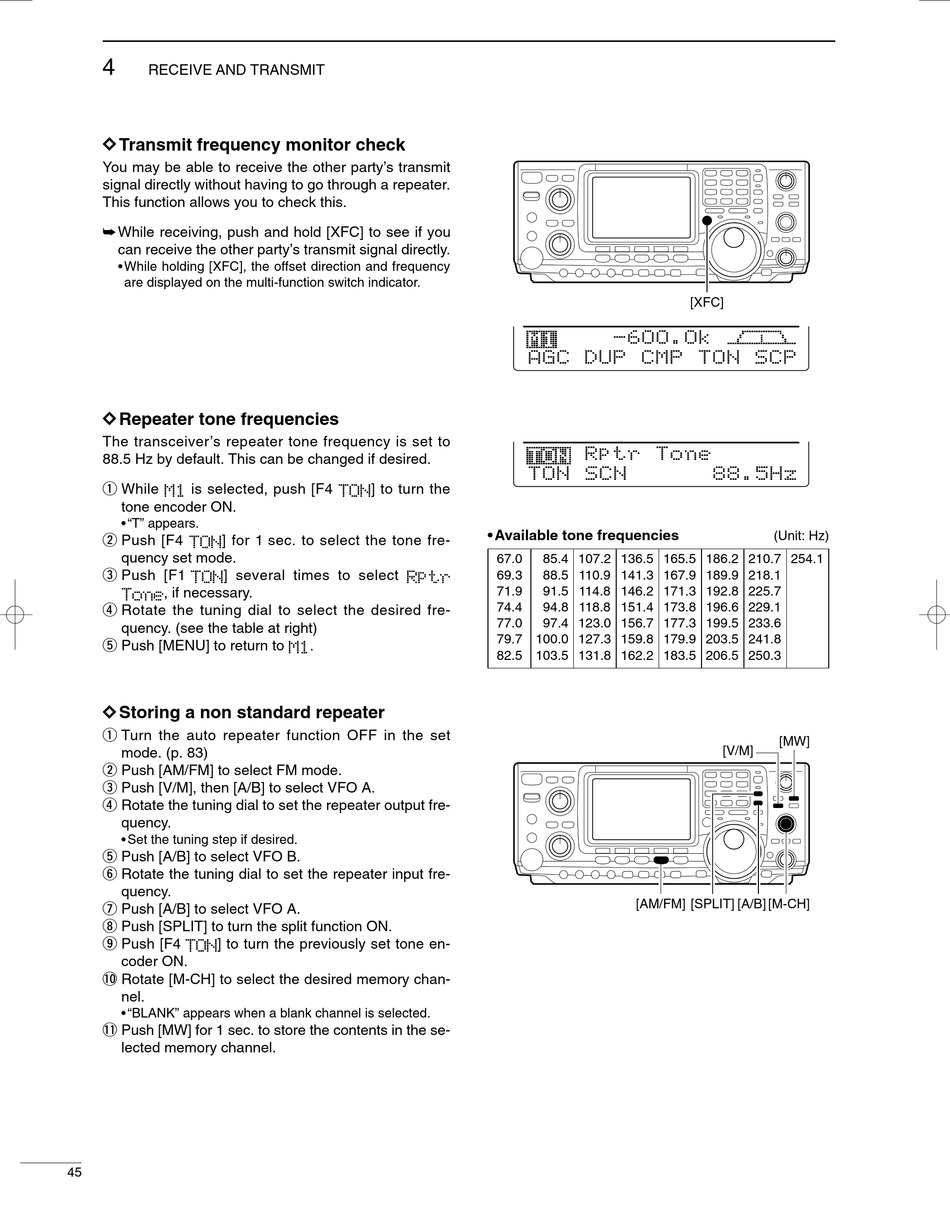

RECEIVE AND TRANSMIT

D D Transmit frequency monitor check
You may be able to receive the other party's transmit
signal directly without having to go through a repeater.
This function allows you to check this.
➥ While receiving, push and hold [XFC] to see if you
can receive the other party's transmit signal directly.
• While holding [XFC], the offset direction and frequency
are displayed on the multi-function switch indicator.
D D Repeater tone frequencies
The transceiver's repeater tone frequency is set to
88.5 Hz by default. This can be changed if desired.
q While
is selected, push [F4
tone encoder ON.
• "T" appears.
w Push [F4
] for 1 sec. to select the tone fre-
quency set mode.
e Push [F1
] several times to select
, if necessary.
r Rotate the tuning dial to select the desired fre-
quency. (see the table at right)
t Push [MENU] to return to
D D Storing a non standard repeater
q Turn the auto repeater function OFF in the set
mode. (p. 83)
w Push [AM/FM] to select FM mode.
e Push [V/M], then [A/B] to select VFO A.
r Rotate the tuning dial to set the repeater output fre-
quency.
• Set the tuning step if desired.
t Push [A/B] to select VFO B.
y Rotate the tuning dial to set the repeater input fre-
quency.
u Push [A/B] to select VFO A.
i Push [SPLIT] to turn the split function ON.
o Push [F4
] to turn the previously set tone en-
coder ON.
!0 Rotate [M-CH] to select the desired memory chan-
nel.
• "BLANK" appears when a blank channel is selected.
!1 Push [MW] for 1 sec. to store the contents in the se-
lected memory channel.
45
] to turn the
.
• Available tone frequencies
67.0 085.4 107.2 136.5
69.3 088.5 110.9 141.3
71.9 091.5 114.8 146.2
74.4 094.8 118.8 151.4
77.0 097.4 123.0 156.7
79.7 100.0 127.3 159.8
82.5 103.5 131.8 162.2
[AM/FM] [SPLIT] [A/B] [M-CH]
[XFC]
(Unit: Hz)
165.5 186.2 210.7 254.1
167.9 189.9 218.1
171.3 192.8 225.7
173.8 196.6 229.1
177.3 199.5 233.6
179.9 203.5 241.8
183.5 206.5 250.3
[MW]
[V/M]
