6-10
Viewing the Adapter's Web Pages
20-COMM-M Modbus/TCP Adapter User Manual
Publication 20COMM-UM014C-EN-P

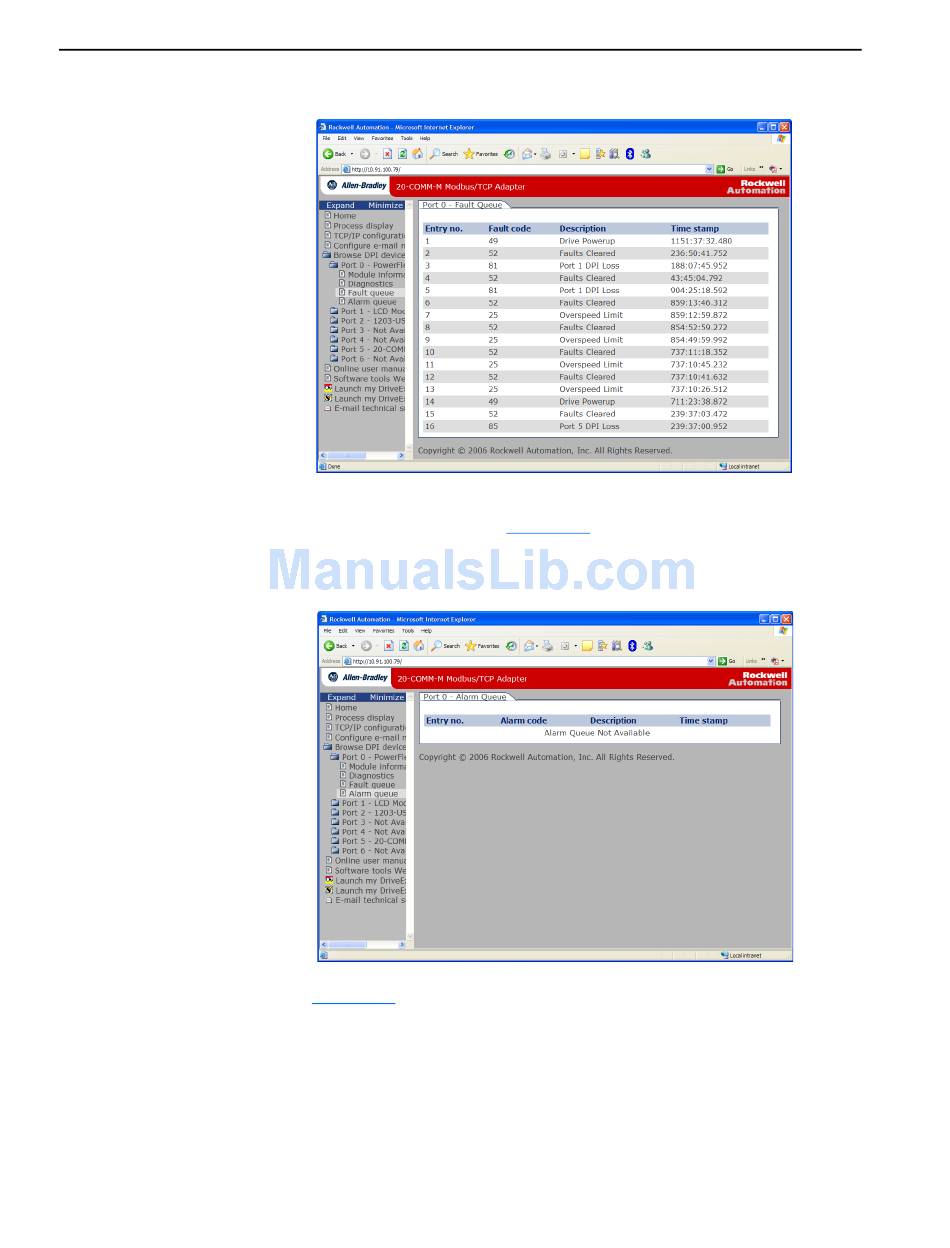

Figure 6.10 Example of Port 0 (PowerFlex 70 Drive) Fault Queue Page
For drives that do not support an alarm queue, the adapter will still display
an alarm queue web page
available.
Figure 6.11 Example of Port 0 (PowerFlex 70 Drive) Alarm Queue Page
Figure 6.12
shows an example event queue page for the Port 5 device
(20-COMM-M adapter).
(Figure
6.11) showing that the alarm queue is not
