6-4
Viewing the Adapter's Web Pages
Process Display Pop-up
Window
20-COMM-M Modbus/TCP Adapter User Manual
Publication 20COMM-UM014C-EN-P
The Process Display pop-up window dynamically shows a host's
information. To view this window, click the "Process Display" link in the
navigation menu.

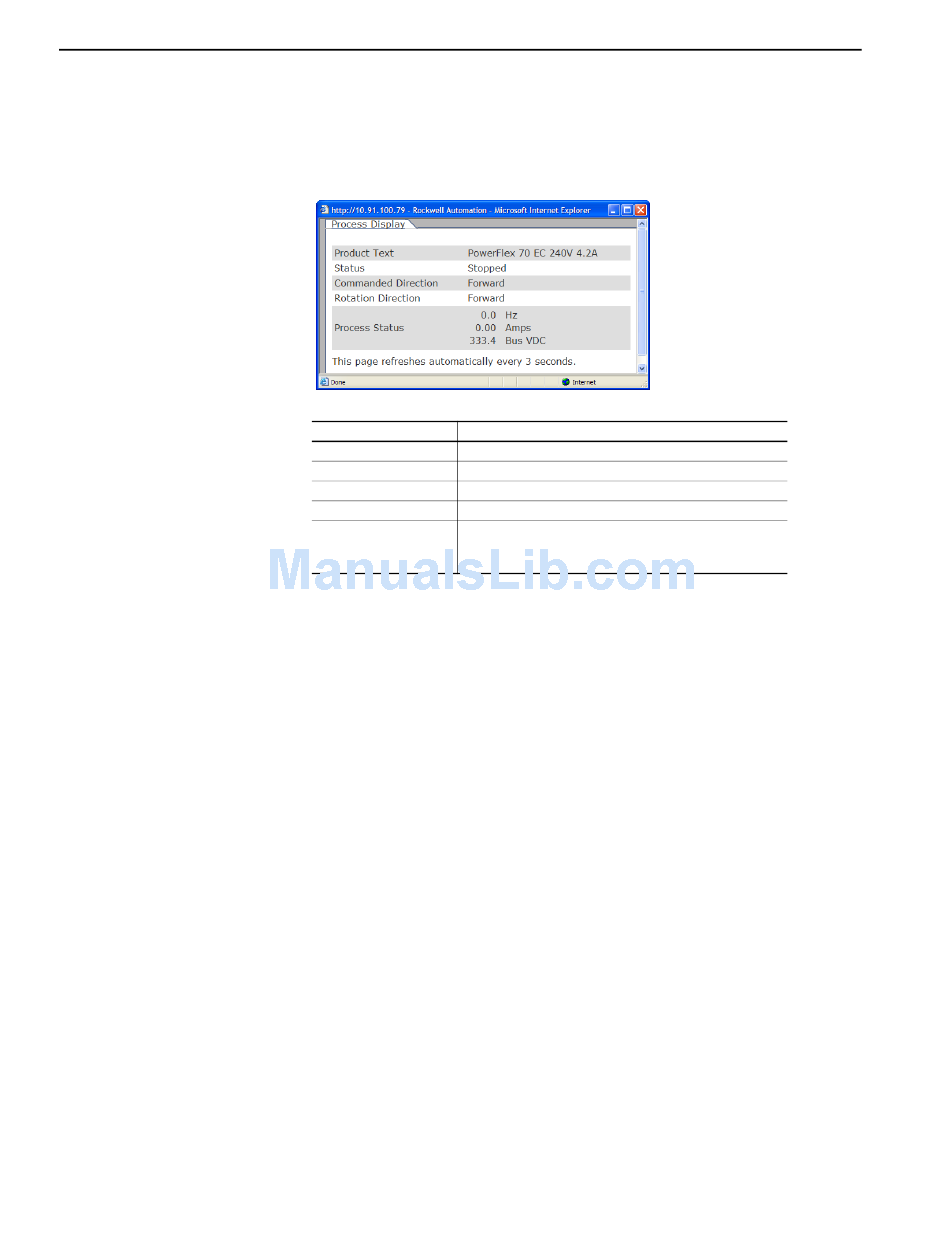

Figure 6.2
Example of Process Display Pop-up Window
Information
Description
Product Text
Description of host.
Status
Status of host.
Commanded Direction
Commanded direction of host.
Rotation Direction
Rotation direction of host.
Process Status
Line 1 – desired parameter of host and its dynamic value.
Line 2 – desired parameter of host and its dynamic value.
Line 3 – desired parameter of host and its dynamic value.
(1)
The parameter whose value is shown on this line is the feedback value from the drive, and is not
selectable.
(2)
The parameter whose value is shown on this line can be set by using the HIM. For details, see
the drive User Manual.
(1)
(2)
(2)
