ELECTRICAL COMPONENTS AND WIRING DIAGRAM

EC600000

ELECTRICAL

EC610000

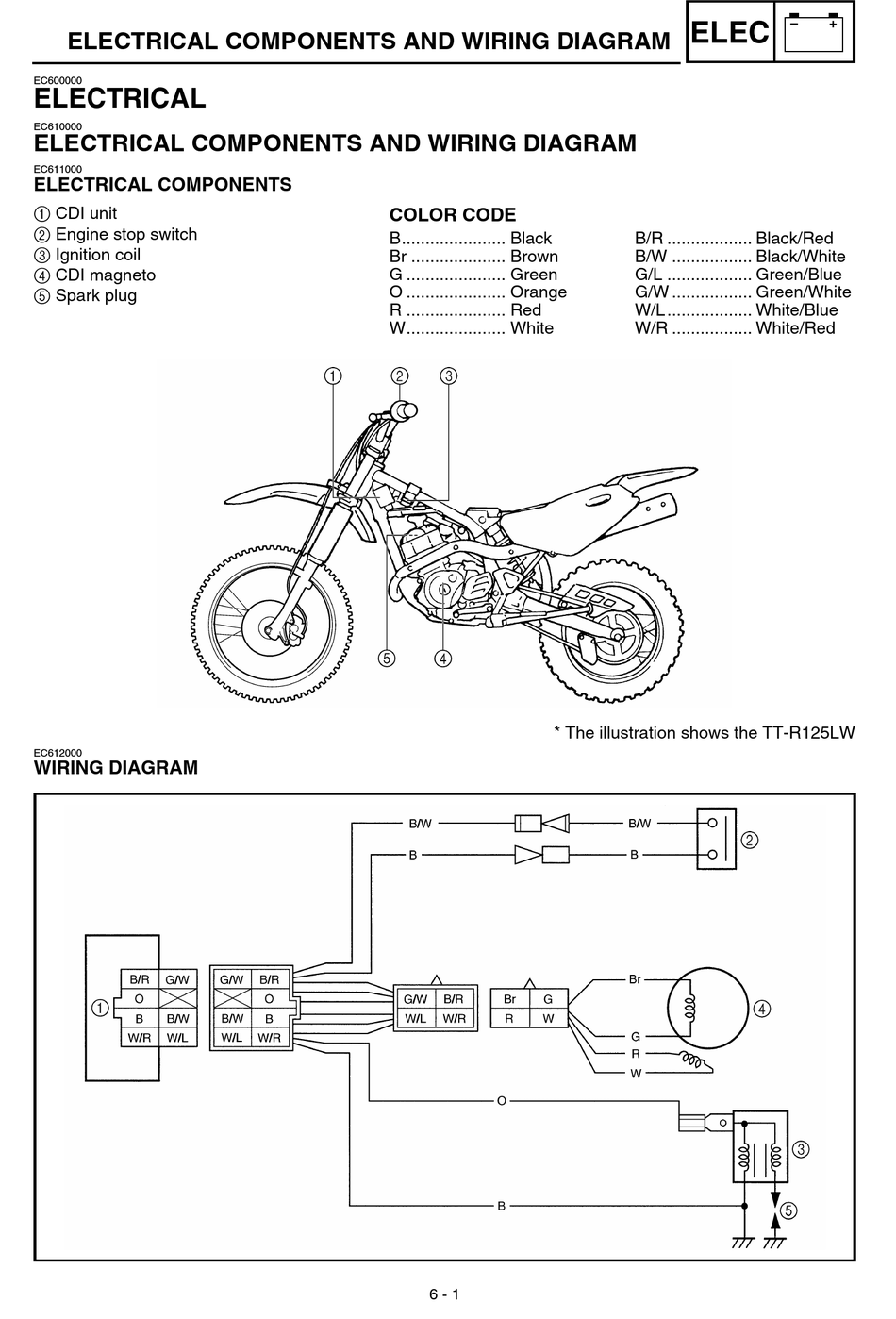

ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000
ELECTRICAL COMPONENTS
1 CDI unit
2 Engine stop switch
3 Ignition coil
4 CDI magneto
5 Spark plug
EC612000
WIRING DIAGRAM
COLOR CODE
B...................... Black
Br .................... Brown
G ..................... Green
O ..................... Orange
R ..................... Red
W..................... White
* The illustration shows the TT-R125LW
6 - 1
–
ELEC
B/R .................. Black/Red
B/W ................. Black/White
G/L .................. Green/Blue
G/W ................. Green/White
W/L .................. White/Blue
W/R ................. White/Red
+
