FRONT FORK
EC555000

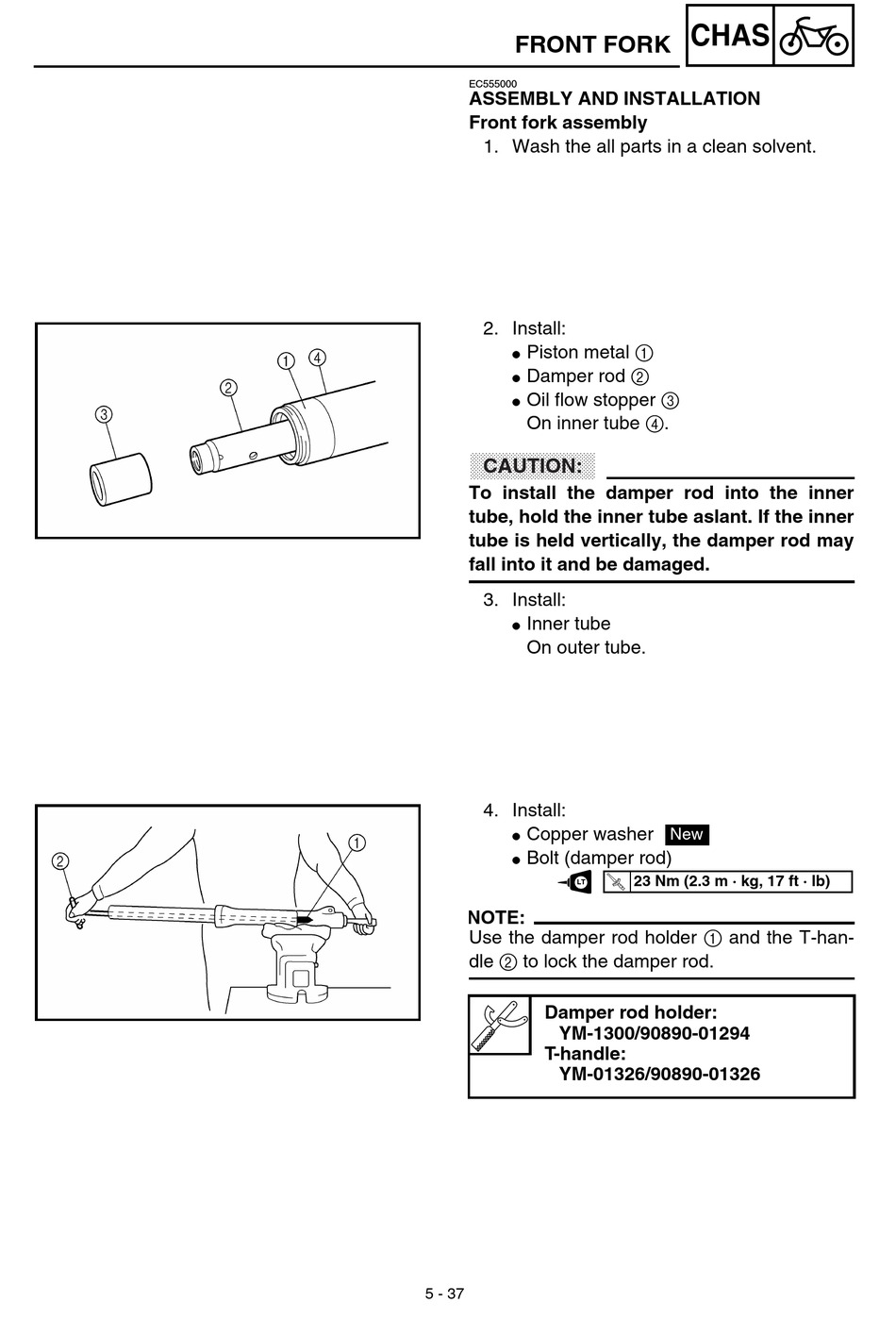

ASSEMBLY AND INSTALLATION
Front fork assembly
1. Wash the all parts in a clean solvent.
2. Install:
Piston metal 1
G
Damper rod 2
G
Oil flow stopper 3
G
On inner tube 4.
CAUTION:
To install the damper rod into the inner
tube, hold the inner tube aslant. If the inner
tube is held vertically, the damper rod may
fall into it and be damaged.
3. Install:
Inner tube
G
On outer tube.
4. Install:
Copper washer
G
Bolt (damper rod)
G
LT
NOTE:
Use the damper rod holder 1 and the T-han-
dle 2 to lock the damper rod.
Damper rod holder:
YM-1300/90890-01294
T-handle:
YM-01326/90890-01326
5 - 37
CHAS
New
23 Nm (2.3 m · kg, 17 ft · lb)
