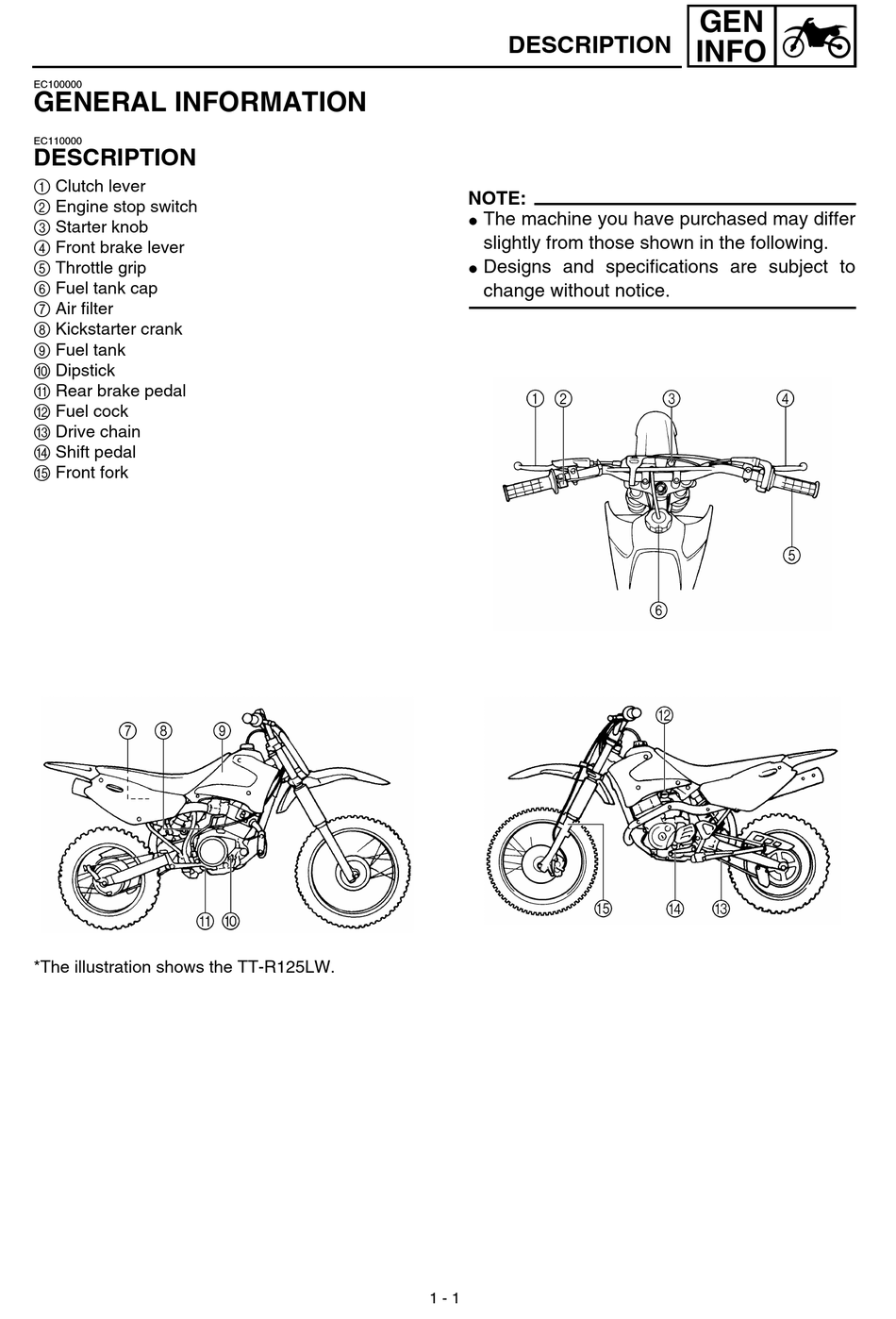

DESCRIPTION

1 Clutch lever
2 Engine stop switch
3 Starter knob
4 Front brake lever
5 Throttle grip
6 Fuel tank cap
7 Air filter
8 Kickstarter crank
9 Fuel tank
0 Dipstick
A Rear brake pedal
B Fuel cock
C Drive chain
D Shift pedal
E Front fork
*The illustration shows the TT-R125LW.
