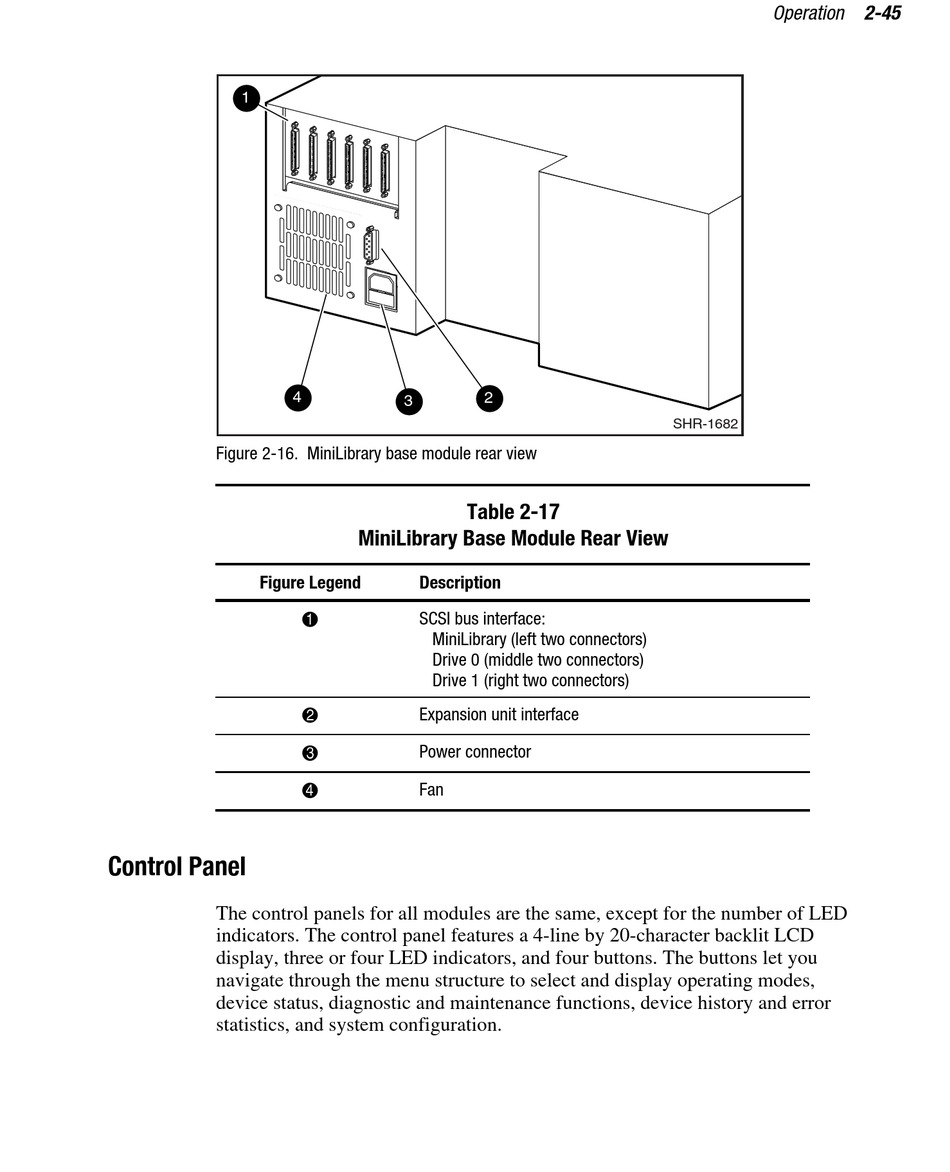

Figure 2-16. MiniLibrary base module rear view
Figure Legend
Control Panel
The control panels for all modules are the same, except for the number of LED
indicators. The control panel features a 4-line by 20-character backlit LCD
display, three or four LED indicators, and four buttons. The buttons let you
navigate through the menu structure to select and display operating modes,
device status, diagnostic and maintenance functions, device history and error
statistics, and system configuration.
4
3
Table 2-17
MiniLibrary Base Module Rear View
Description
1
SCSI bus interface:
MiniLibrary (left two connectors)
Drive 0 (middle two connectors)
Drive 1 (right two connectors)
2
Expansion unit interface
3
Power connector
4
Fan
2
Operation 2-45
SHR-1682
