Figure 2-2. Expansion Unit Control Panel - Compaq SW TL881 DLT Mini-Lib/1 Reference Manual

2-4 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Reference Guide

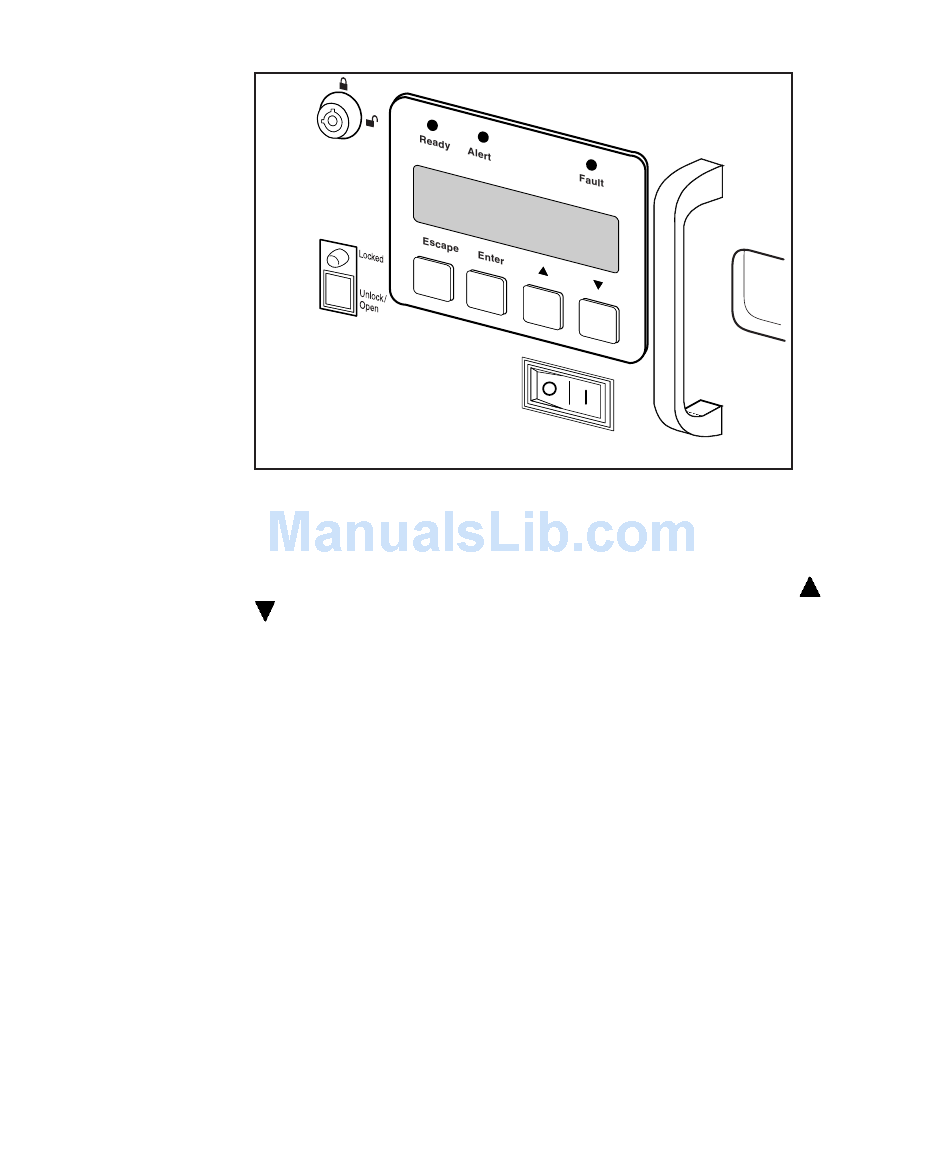

Figure 2-2. Expansion unit control panel

Pushbuttons
There are four buttons on the control panel, labeled Escape, Enter,
. The buttons do not directly control specific functions or options. Instead,
you use the buttons to navigate from the Default screen through a multi-level
menu structure, then select the desired option from the appropriate menu by
pressing the Enter button. Table 2-1 lists the effect of each of the four buttons
under various conditions.
The three most important things you need to know about the buttons are:
1. To enter the Menu Mode and display the Main menu from the Default
screen, press the Enter button.
2. To return to the Main menu from a submenu, press the Escape button
repeatedly until the Main menu appears. Pressing the Escape button
while the Main menu is displayed exits the Menu Mode and returns you
to the Default screen. The Default screen and the Main menu are shown
later in this chapter.
3. To display the Show Status menu only without entering Menu Mode,
press the Escape button at the Default screen. The system remains
online.
SHR-1685
, and
