2-8 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Reference Guide
I
Use Cleaner (yellow) – indicates that either or both drives require
cleaning. A cleaning operation should be done as described in Chapter 5,
"Regular Maintenance." When the Use Cleaner LED lights, you can find
out which drive needs cleaning by selecting Cleaning Needed on the
drive status submenu.
I
Drive Fault or Loader Fault (red) – lights when a Fault screen appears
on the LCD display. The fault screen is described later in this chapter. A
list of Fault Symptom Codes (FSC) and Error Recovery Procedures
(ERP) are shown in Chapter 5, "Regular Maintenance."

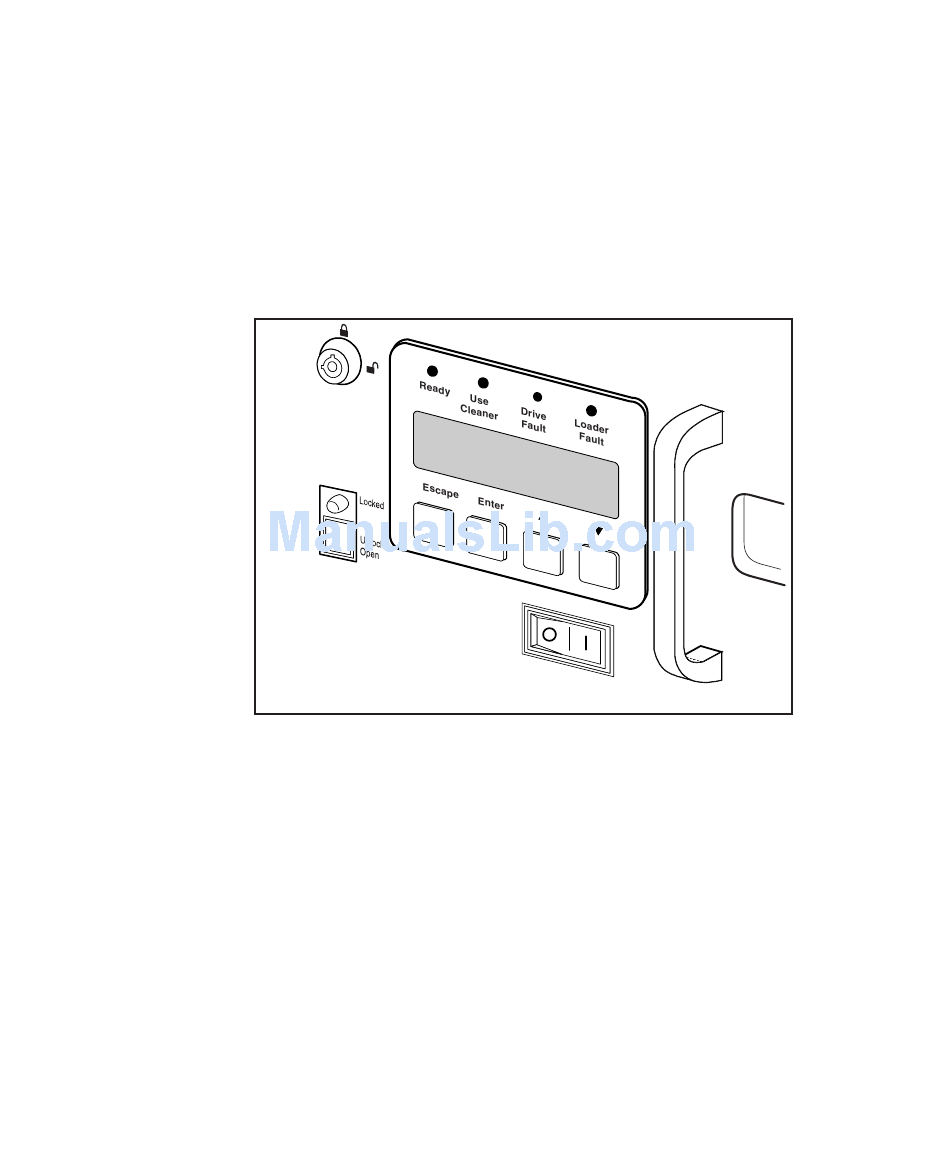

Figure 2-4. MiniLibrary base module control panel

Pushbuttons
The pushbuttons on the Base Module control panel operate the same way as
the pushbuttons on the Expansion Unit control panel. See the description of
the Expansion Unit pushbuttons described earlier in this chapter.
SHR-1687
