Figure 2-15. Expansion Unit Rear View; Table 2-16 Expansion Unit Rear View - Compaq SW TL881 DLT Mini-Lib/1 Reference Manual
Compaq storageworks tl881/tl891 family minilibrary system reference guide (july 2000)
Hide thumbs
Also See for SW TL881 DLT Mini-Lib/1:
Table of Contents
Advertisement
2-44 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Reference Guide
5
4
3

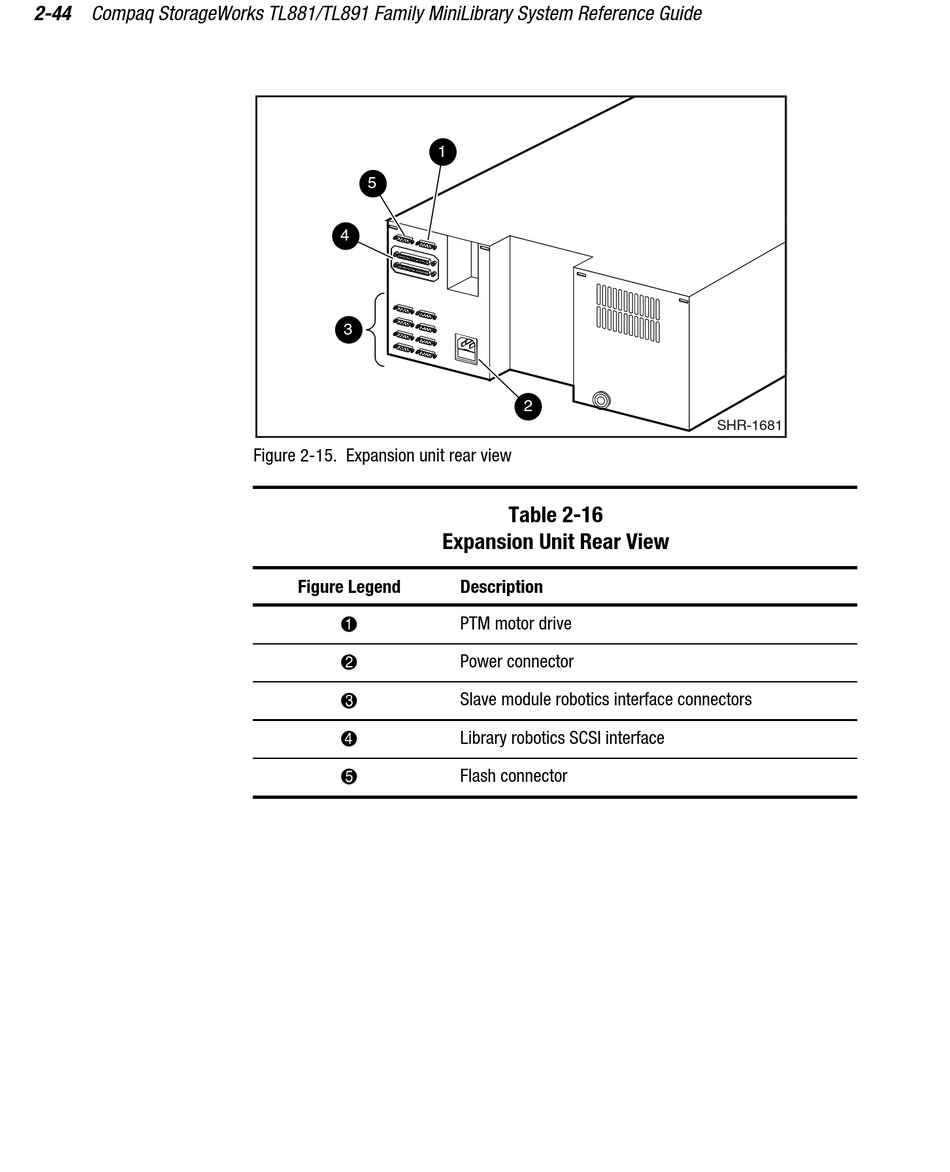

Figure 2-15. Expansion unit rear view
Figure Legend
1
2
3
4
5
1
2
Table 2-16
Expansion Unit Rear View
Description
PTM motor drive
Power connector
Slave module robotics interface connectors
Library robotics SCSI interface
Flash connector
SHR-1681
