Data Unit

The Data Unit (Figure 1-3) has a 16-cartridge magazine and a random access
robotic mechanism, but no tape drives. The module robotics, under control of
the Expansion Unit, moves cartridges between the PTM and any of the 16
cartridge storage locations.

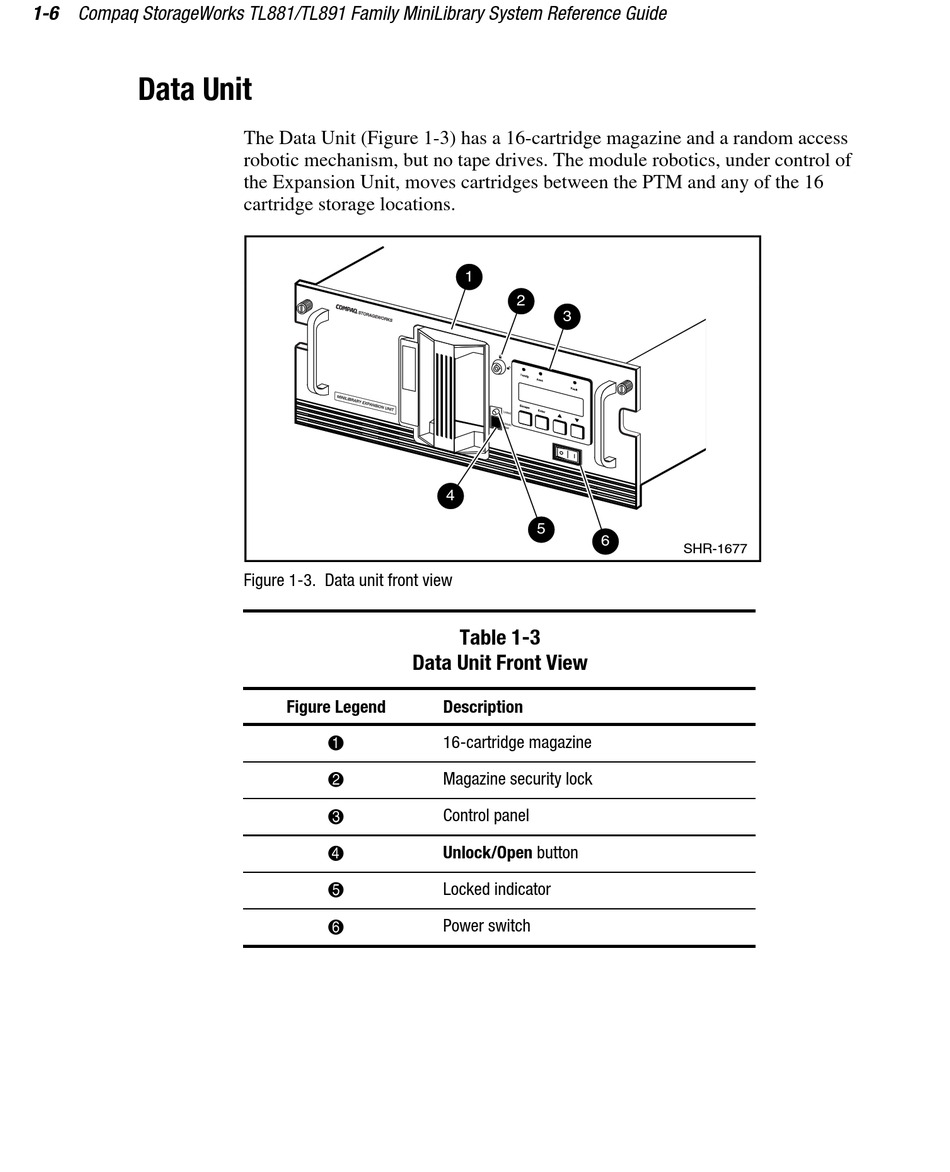

Figure 1-3. Data unit front view
Data Unit Front View
Figure Legend
1
2
3
4
5
6
1
2
3
4
5
6
Table 1-3
Description
16-cartridge magazine
Magazine security lock
Control panel
Unlock/Open button
Locked indicator
Power switch
SHR-1677
