Installing the PTM in the Rack

1. If you have not done so, install the angle brackets onto the outer rail
slides of the top and bottom modules. Use one screw for each angle
bracket as shown in Figure 3-11.

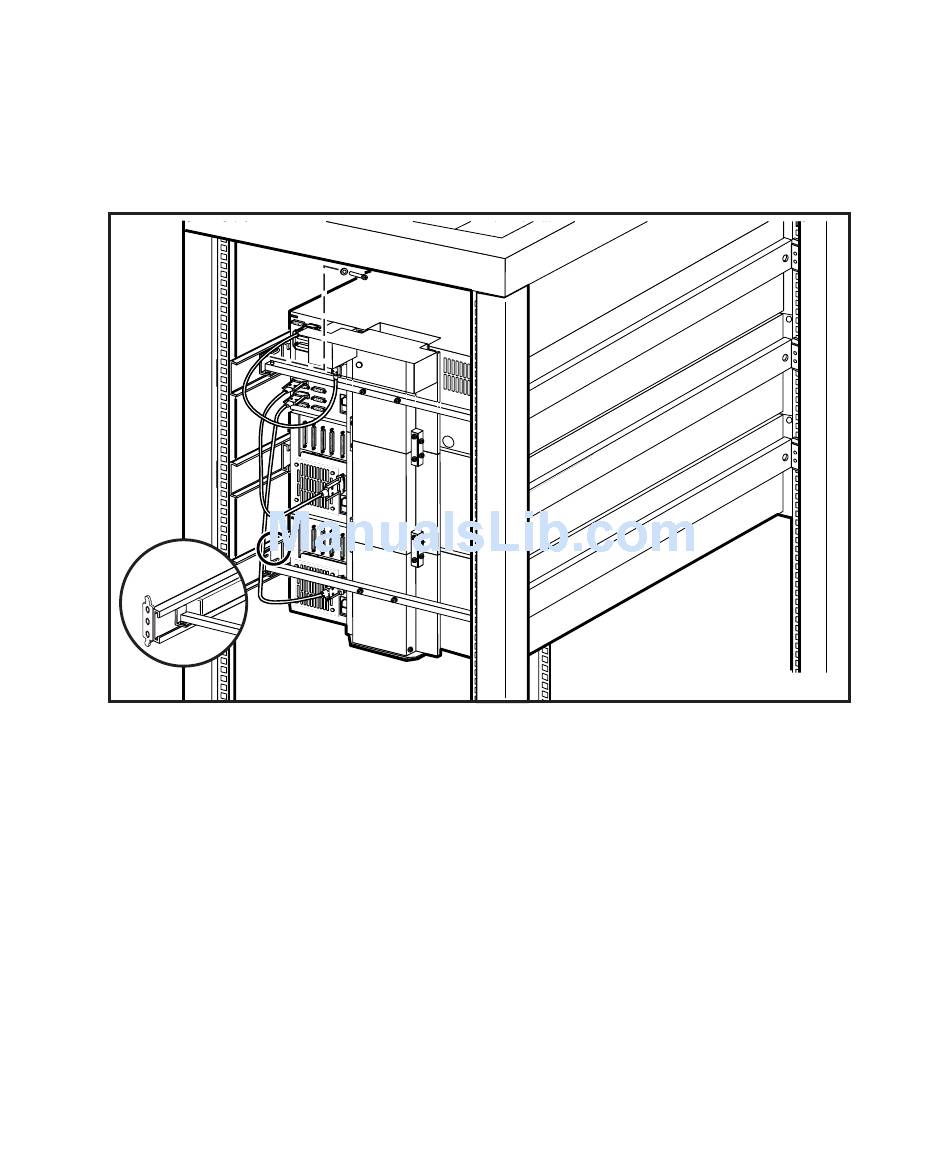

Figure 3-11. Installing the PTM in the rack

2. Position the PTM against the back of the installed modules so that the
support braces rest on the previously installed angle brackets (Figure
3-11). Install a screw and washer through the rear hole in each angle
bracket into the support braces. Do not tighten.
3. Look closely at the right flange of the PTM (left side as viewed from the
rear of the rack) as shown in the inset in Figure 3-11. At the top module,
position the PTM horizontally so that the edge of the flange fits exactly
into the slot on the rear of the chassis of the top and bottom modules.
4. Make sure that the bottom edge of the PTM motor drive section is flush
with the bottom surface of the module chassis. If necessary, adjust the
vertical position of the angle brackets.
Installation 3-19
