F-4 Compaq StorageWorks TL881/TL891 Family MiniLibrary System Reference Guide

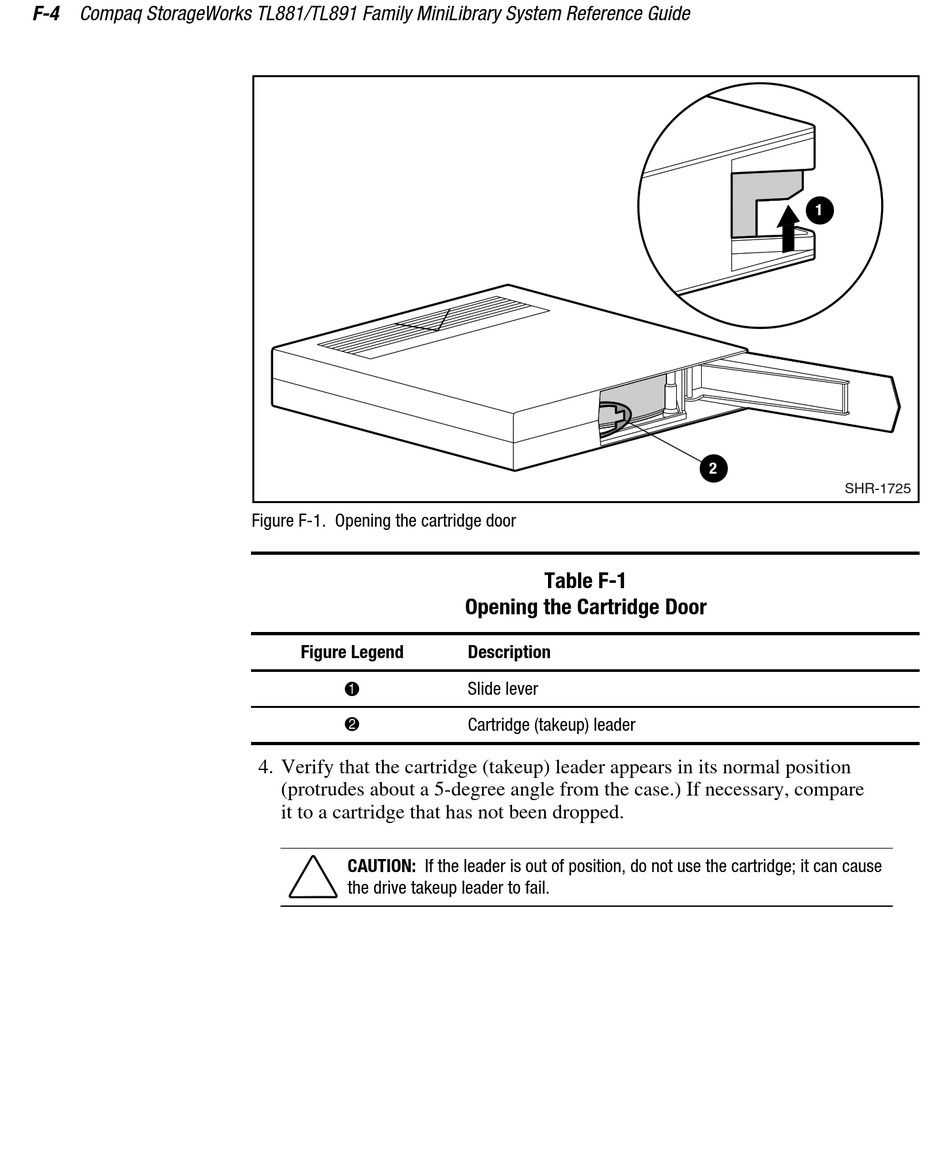

Figure F-1. Opening the cartridge door
Figure Legend
1
2
4. Verify that the cartridge (takeup) leader appears in its normal position
(protrudes about a 5-degree angle from the case.) If necessary, compare
it to a cartridge that has not been dropped.
CAUTION: If the leader is out of position, do not use the cartridge; it can cause
the drive takeup leader to fail.
Table F-1
Opening the Cartridge Door
Description
Slide lever
Cartridge (takeup) leader
1
2
SHR-1725
