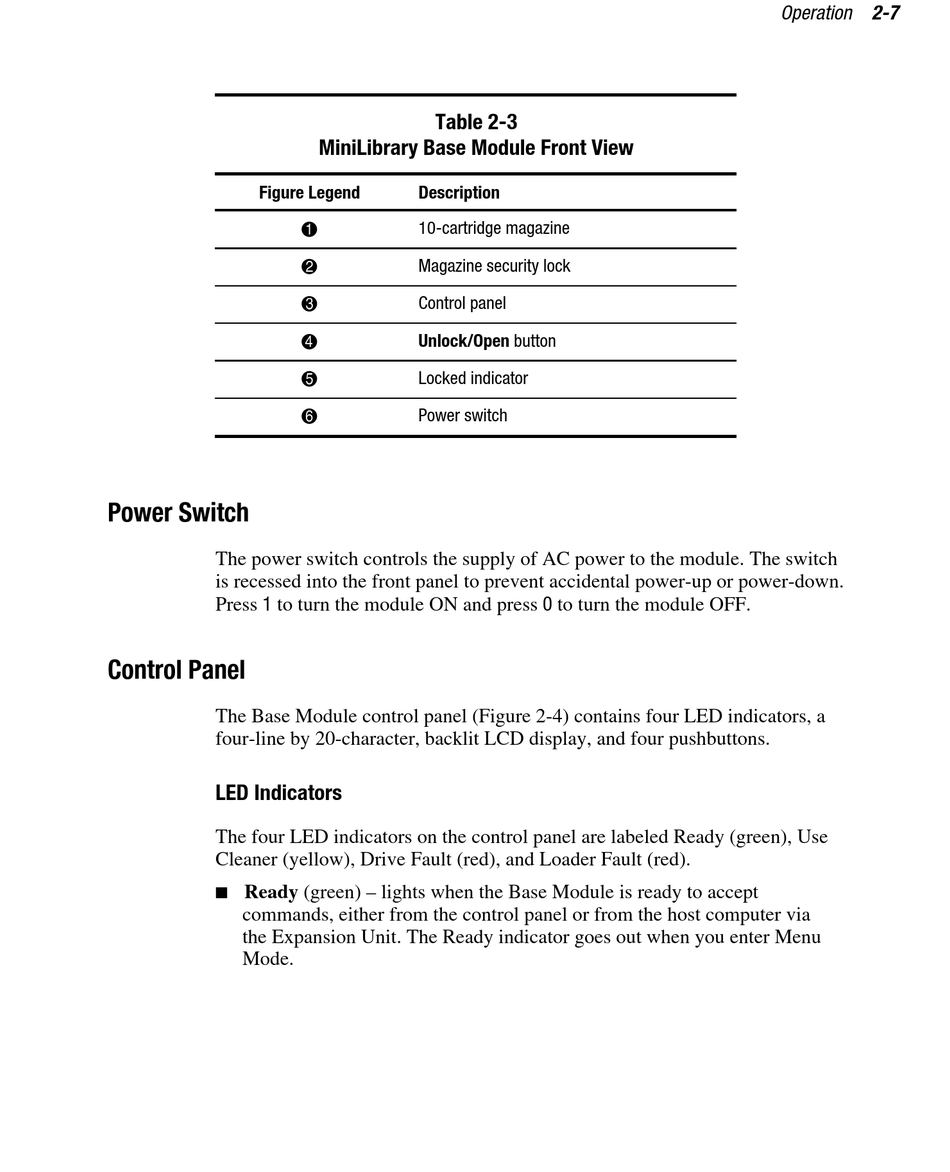

Figure Legend
Power Switch
The power switch controls the supply of AC power to the module. The switch
is recessed into the front panel to prevent accidental power-up or power-down.
Press 1 to turn the module ON and press 0 to turn the module OFF.
Control Panel
The Base Module control panel (Figure 2-4) contains four LED indicators, a
four-line by 20-character, backlit LCD display, and four pushbuttons.
LED Indicators
The four LED indicators on the control panel are labeled Ready (green), Use
Cleaner (yellow), Drive Fault (red), and Loader Fault (red).
I
Ready (green) – lights when the Base Module is ready to accept
commands, either from the control panel or from the host computer via
the Expansion Unit. The Ready indicator goes out when you enter Menu
Mode.
Table 2-3
MiniLibrary Base Module Front View
Description
1
10-cartridge magazine
2
Magazine security lock
3
Control panel
4
Unlock/Open button
5
Locked indicator
6
Power switch
Operation 2-7
