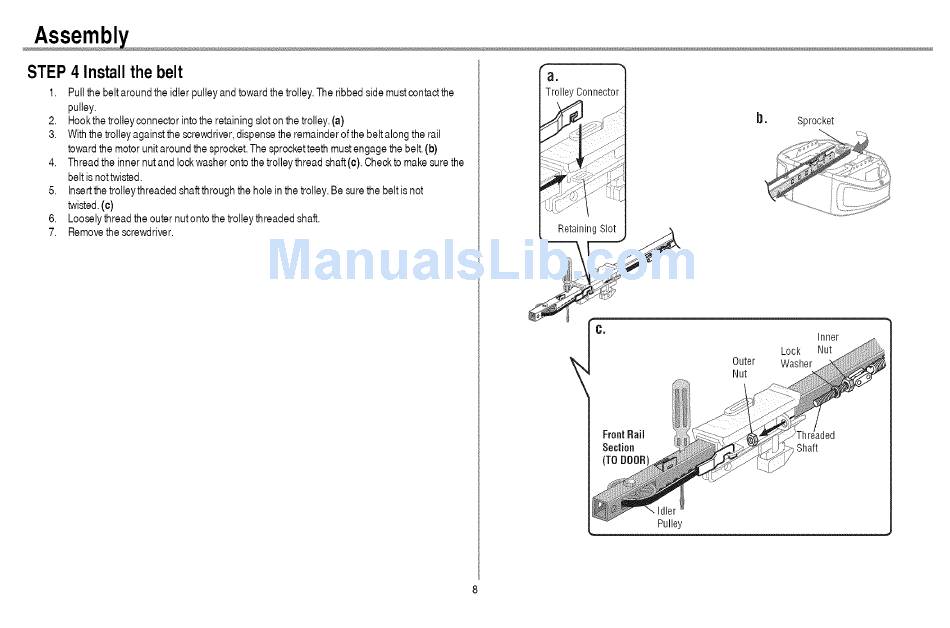

4 Install the belt
Pullthe belt aroundthe idler pulley andtowardthe trolley.The ribbedside mustcontact t he
pulley.
Hookthetrolleyconnectorinto the retainingsloton thetrolley.(a)
Withthetrolleyagainstthe screwdriver, d ispensethe remainderofthe belt along the rail
towardthe motorunit aroundthe sprocket. T he sprocketteethmustengagethebelt. (b)
Thread the innernut andlockwasherontothetrolleythreadshaft(c). Checkto makesurethe
belt is nottwisted.
Insertthetrolleythreaded shaftthroughthehole inthe trolley.Be surethe belt is not
twisted.(c)
Looselythread theouter nutontothe trolleythreadedshaft.
Removethe screwd river.
Pulley
b.
Outer
Nut
Sprocket
Inner
Lock Nut
Washer
Lded
Shaft
