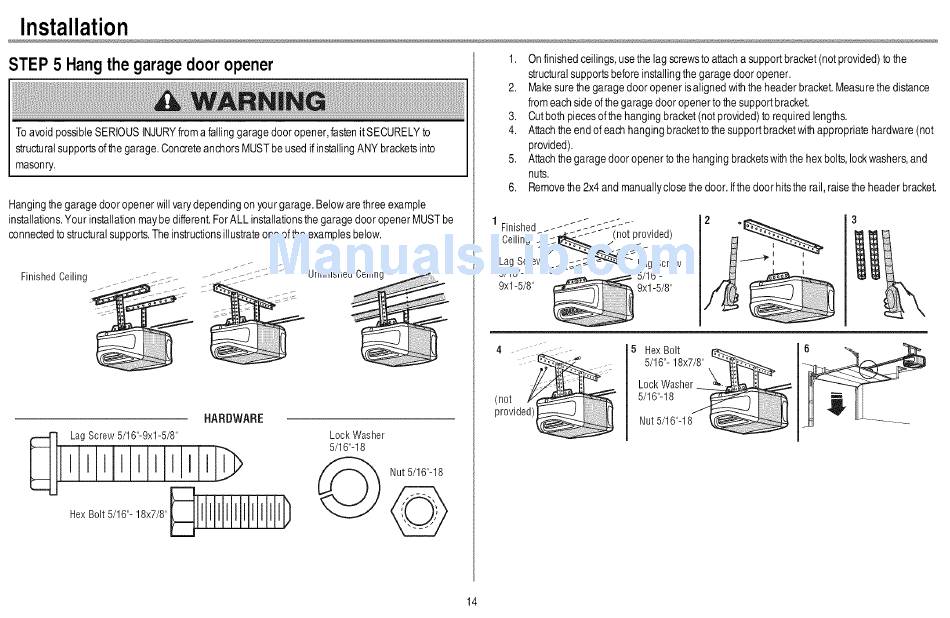

Installation
STEP 5 Hangthe garage door opener
Toavoid possibleSERIOUSINJURYfroma falling garage door opener,fastenit SECURELY to
structural s upportsofthe garage.Concreteanchors MUSTbe used ifinstallingANYbracketsinto
masonry.
Hangingthe garagedoor opener willvary dependingon yourgarage.Below arethree example
installations. Y our installationmaybe different.ForALL installationsthegarage door openerMUSTbe
connectedto structuralsupports.The instructions illustrateone ofthe examplesbelow.
Finished Ceiling
...........
Unfinished Ceiling
HARDWARE
Lock Washer
5/16"-18
_
_Nut5/16"-18
1, Onfinishedceilings,use the lagscrewstoattacha supportbracket(notprovided)to the
structural s upportsbeforeinstallingthegarage door opener,
2, Makesurethe garagedoor opener is alignedwiththe header bracket,Measurethe distance
fromeach sideof thegarage door openerto the supportbracket,
3, Cutbothpiecesofthe hangingbracket(notprovided)to requiredlengths,
4, Attachthe endof each hanging brackettothe supportbracketwithappropriatehardware(not
provided),
5, Attachthe garagedoor opener tothe hanging brackets withthe hex bolts,lockwashers,and
nuts.
6. Removethe 2x4 and manuallyclosethe door. Ifthe door hitsthe rail, raisethe headerbracket.
....
-
5/1L_ilk6"VV_h7/8
"_6"-18
pnr°°tvided)
Nut5/16"-1
14
