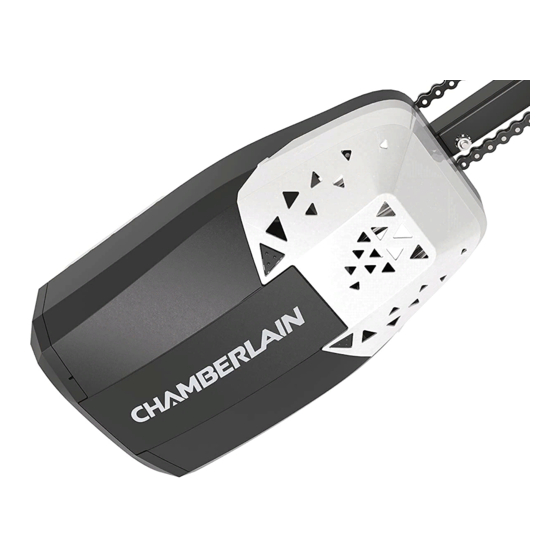

Chain drive garage door opener
Hide thumbs Also See for HD220:

Advertisement

Chain Drive
Garage Door Opener
Models HD220, HD220C,
PD220, PD222, LW260C,
and LW2200
FOR RESIDENTIAL USE ONLY
INSTALL ON 7 FOOT
SECTIONAL DOORS ONLY
Register your new garage door opener at
www.prodregister.com/chamberlain or
scan the QR code with your smartphone
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System
properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■ The model number label is located on the back panel of your garage door opener.
■ This garage door opener is compatible with Security✚ 2.0™ accessories.
®
is connected and
Write down the following information
for future reference:
Model Number:
Serial Number:
Date of Purchase:
CONTENTS
Preparation .............................. 1-4
Assembly ................................. 5-9
Installation ............................ 10-17
Install the Door Control ............. 18-19
®
...... 20-23
Power .................................. 24-25
Adjustments .......................... 26-28
Operation.................................. 29
Features ................................... 30
Remote Control .......................... 31
To Erase the Memory .................... 32
Maintenance .............................. 33
Diagnostic Chart ......................... 34
Warranty .................................. 35
www.chamberlain.com
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chamberlain HD220

  • Page 1: Table Of Contents

    CONTENTS Preparation ......1-4 Chain Drive Assembly ......... 5-9 Garage Door Opener Installation ......10-17 Install the Door Control ..... 18-19 Models HD220, HD220C, Install the Protector System ® ..20-23 Power ........24-25 PD220, PD222, LW260C, Adjustments ......26-28 and LW2200 Operation........
  • Page 2: Preparation

    Preparation Safety Symbol and Signal Word Review Check the Door This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.
  • Page 3 Preparation Additional Items You May Need: Tools Needed Survey your garage area to see if you will need any of the following items: (2) 2X4 PIECES OF WOOD May be used to fasten the header bracket to the structural supports. Also used to position the garage door opener during installation and for testing the safety reversing sensors.
  • Page 4 Preparation Carton Inventory/Repair Parts Your garage door opener is packaged in one carton which contains the motor unit and all parts illustrated below. Accessories vary depending on the garage door opener model purchased. Depending on your model, other accessories may be included with your garage door opener. Instructions for these accessories will be attached to the accessory and are not included in this manual.
  • Page 5 Preparation Hardware Inventory ASSEMBLY HARDWARE INSTALLATION HARDWARE Bolt Self-Threading Clevis Pin Lag Screw #14-10x1-1/2" (2) Lag Screw 5/16"-9x1-5/8" (2) 1/4"-20x2" Screw 5/16"x1-1/2" 1/4"-20x1-3/4" (2) Clevis Pin 5/16"x1-1/2" Clevis Pin 5/16"x1-1/4" Clevis Pin 5/16"x1" Threaded Shaft Carriage Bolt Hex Nuts 5/16" (2) Hex Bolt 1/4"-20x3/4"...
  • Page 6: Assembly

    Assembly To garage STEP 1 Assemble the rail and trolley door opener (TO MOTOR UNIT) Chain Spreader To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail. To avoid installation difficulties, do not run the garage door opener until instructed to do so. Outer Trolley The front rail has a cut out “window”...
  • Page 7 Assembly STEP 2 Fasten the rail to the motor unit Self-Threading Screws 1/4"-20x1-3/4" To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the Bolt 1/4"-20x2" top of the opener. 1. Ensure that the chain spreader is installed. Insert a 1/4"-20x2" bolt and spacer into the cover protection bolt hole on the back end of the rail as shown.
  • Page 8 Assembly CORRECT STEP 3 Install the pulley 1. Lay the chain/cable beside the rail, as shown. Grasp the end with the cable loop and pass Rail Tab approximately 12" (30 cm) of cable through the window. Allow it to hang until Assembly Step 4. 2.
  • Page 9 Assembly STEP 4 Install the chain To avoid possible SERIOUS INJURY to finger from moving garage door opener: ALWAYS keep hand clear of sprocket while operating opener. Sprocket Securely attach chain spreader BEFORE operating. 1. Pull the cable around the idler pulley and toward the trolley. 2.
  • Page 10 Assembly Trolley STEP 5 Tighten the chain Outer Lock Threaded Washer Shaft To Tighten Outer Nut 1. Spin the inner nut and lock washer down the trolley threaded shaft, away from the trolley. 2. To tighten the chain, turn the outer nut in the direction shown. 3.
  • Page 11: Installation

    Installation IMPORTANT INSTALLATION INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS. 8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be 2. Install garage door opener ONLY on properly balanced and lubricated garage door. An caught in garage door or opener mechanisms.
  • Page 12 Installation STEP 1 Determine the header bracket location OPTIONAL CEILING MOUNT Header Wall FOR HEADER BRACKET Vertical Centerline of Garage Door Structural Supports Unfinished Ceiling To prevent possible SERIOUS INJURY or DEATH: Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required.
  • Page 13 Installation STEP 2 Install the header bracket OPTION B CEILING INSTALLATION You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the 1. Extend the vertical centerline onto the ceiling as shown. instructions which will work best for your particular requirements.
  • Page 14 Installation STEP 3 Attach the rail to the header bracket STEP 4 Position the garage door opener 1. Align the rail with the header bracket. Insert the clevis pin through the holes in the header bracket and rail. Secure with the ring fastener. NOTE: Use the packing material as a protective base for the garage door opener.
  • Page 15 Installation 1. On finished ceilings, use the lag screws to attach a support bracket (not provided) to the structural STEP 5 Hang the garage door opener supports before installing the garage door opener. 2. Make sure the garage door opener is aligned with the header bracket. Measure the distance from each side of the garage door opener to the support bracket.
  • Page 16 Installation STEP 6 Install the light bulbs STEP 7 Attach the emergency release rope and handle To prevent possible OVERHEATING of the end panel or light socket: To prevent possible SERIOUS INJURY or DEATH from a falling garage door: • Use ONLY A19 incandescent (60W maximum) or compact fluorescent (23W maximum) light If possible, use emergency release handle to disengage trolley ONLY when garage door is bulbs.
  • Page 17 Installation Metal or light weight doors using a vertical angle iron brace between the door panel support STEP 8 Install the door bracket and the door bracket: • Drill 3/16" fastening holes. Secure the door bracket using the two self threading screws. (Figure 2) •...
  • Page 18 Installation STEP 9 Connect the door arm to the trolley CORRECT INCORRECT IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm. Straight Straight Door 1. Close the door. Disconnect the trolley by pulling the emergency release handle. Curved Door Arm 2.
  • Page 19: Install The Door Control

    Installation 1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the wires. STEP 10 Install the door control 2. Connect one wire to each of the two screws on the back of the door control. The wires can be connected to either screw.
  • Page 20 Installation STEP 11 Wire the door control to the garage door opener STEP 12 Attach the warning labels 1. Attach the entrapment warning label on the wall near the door control with tacks or staples. 2. Clean surface and attach the manual release/safety reverse test label in a visible location on the HARDWARE inside of the garage door.
  • Page 21: Install The Protector System

    Installation ® STEP 13 Install the Protector System HARDWARE Carriage Bolt Wing Nut 1/4"-20x1/2" 1/4"-20 Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor. The safety reversing sensors can be attached to the door track, the wall, or the floor. The sensors should be no more than 6 inches (15 cm) above the floor.
  • Page 22 Installation ® STEP 13 Install the Protector System (continued) OPTION C FLOOR INSTALLATION OPTION B WALL INSTALLATION Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed. 1. Carefully measure the position of both sensor brackets so they will be the same distance from the If additional clearance is needed an extension bracket (not provided) or wood blocks can be used.
  • Page 23 Installation STEP 14 Wire the Safety Reversing Sensors Staple If your garage already has wires installed for the safety reversing sensors, proceed to page 23. HARDWARE Insulated Staple 7/16" (11 mm) (Not Shown) OPTION A INSTALLATION WITHOUT PRE-WIRING 1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall and ceiling with the staples.
  • Page 24 Installation STEP 14 Wire the Safety Reversing Sensors (continued) Pre-installed OPTION B Safety reversing PRE-WIRED INSTALLATION wires 7/16" sensor wires (11 mm) 1. Cut the end of the safety reversing sensor wire, making sure there is enough wire to reach the pre-installed wires from the wall.
  • Page 25: Power

    Installation STEP 15 Connect power OPTION B PERMANENT WIRING If permanent wiring is required by your local code, refer to the following procedure. To make a permanent connection through the 7/8 inch hole in the top of the motor unit (according to local code): To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: 1.
  • Page 26 Installation IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING: STEP 16 Aligning the safety reversing sensors 1. Make sure there is power to the garage door opener. The door will not close if the sensors have not been installed and aligned correctly. 2.
  • Page 27: Adjustments

    Adjustments Programming Buttons Introduction The programming buttons are located on the back panel of the garage door opener and are used to program the travel. PROGRAMMING BUTTONS Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
  • Page 28 Adjustments PROGRAMMING BUTTONS STEP 1 Program the Travel UP Button Adjustment Without a properly installed safety reversal system, persons (particularly small children) could be Button SERIOUSLY INJURED or KILLED by a closing garage door. Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.
  • Page 29 Adjustments ® STEP 2 Test the Safety Reversal System STEP 3 Test the Protector System Without a properly installed safety reversal system, persons (particularly small children) could be Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.
  • Page 30: Operation

    Operation IMPORTANT SAFETY  INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: 1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS. 9. After ANY adjustments are made, the safety reversal system MUST be tested. 2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or 10.
  • Page 31: Features

    Operation Features LIGHTS The garage door opener light bulbs will turn on when the opener is initially plugged in; power is restored Your garage door opener is equipped with features to provide you with greater control over your garage after interruption, or when the garage door opener is activated. The lights will turn off automatically after door operation.
  • Page 32: Remote Control

    ® an obstruction or is interrupted while opening the door will stop. When the door is in any position other with the accessory or visit www.chamberlain.com. If your vehicle is equipped with a Homelink , you may than closed and the garage door opener is activated the door will close. If the garage door opener require an external adapter depending on the make, model, and year of your vehicle.
  • Page 33: To Erase The Memory

    Operation To Erase the Memory To Open the Door Manually ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES 1. Press and hold the learn button on garage door opener until the learn LED goes out (approximately 6 seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you wish to use.
  • Page 34: Maintenance

    Maintenance Maintenance Schedule NOTICE: This device complies with Part 15 of the FCC rulesand IndustryCanada (IC)licence-exempt RSSstandard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any EVERY MONTH interference received, including interference that maycause undesired operation.
  • Page 35: Diagnostic Chart

    Troubleshooting Diagnostic Chart Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes. NOTE: For troubleshooting questions, please visit www.chamberlain.com. SYMPTOM SOLUTION DIAGNOSTIC CODE Up Arrow Down Arrow...
  • Page 36: Warranty

    STOP! SIX-YEAR MOTOR LIMITED WARRANTY The Chamberlain Group, Inc. (“Seller”) warrants to the fi rst retail purchaser of this product, for the residence in This garage door opener WILL NOT work until the which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of safety reversing sensors are properly installed and aligned.
