Installation

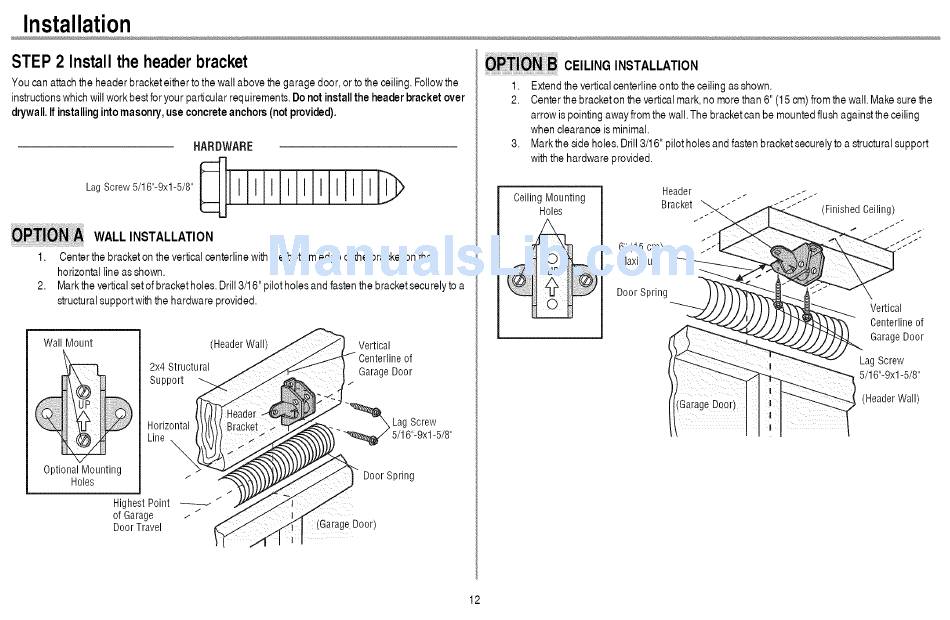

STEP 2 Install the header bracket
Youcan attachthe headerbracketeitherto the wallabove thegarage door, or to theceiling.Followthe
instructions whichwill workbestfor your particularrequirements.Do not install the headerbracket over
drywall.If installing intomasonry,use concreteanchors(notprovided).
HARDWARE
Screw 5/16"-9xl-5/8" _[_
Lag
'--U
WALL INSTALLATION
1. Centerthe bracketon the verticalcenterlinewiththe bottomedgeofthe bracketon the
horizontalline asshown.
2. Markthe verticalsetof bracketholes.Drill3/16" pilotholesand fastenthebracketsecurelyto a
structural s upportwiththe hardwareprovided.
WallMount
OptionalMounting
Holes
(Header Wall)
2x4 Structural
Support
Highest Point _ /
of Garage
DoorTravel
Vertical
GarageDoor
-'_ LagScrew
i" 5/t B "-gxl-5/8
DoorSpring
(Garage Door)
CEILING INSTALLATION
1. Extendthe vertical c enterlineonto theceiling asshown.
2. Centerthe bracketon the verticalmark,no morethan 6" (15 cm)from thewall. Makesurethe
arrow ispointingawayfromthewall.The bracketcan be mountedflushagainstthe ceiling
when clearanceis minimal.
3. Markthe side holes.Drill 3/16" pilotholesand fastenbracketsecurelyto a structural s upport
withthe hardwareprovided.
CeilingMounting
Holes
6" (15 cm)
Maximum
Door Spring
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Lag Screw
5/16"-9xl-5/8"
(Header Wall)
12
