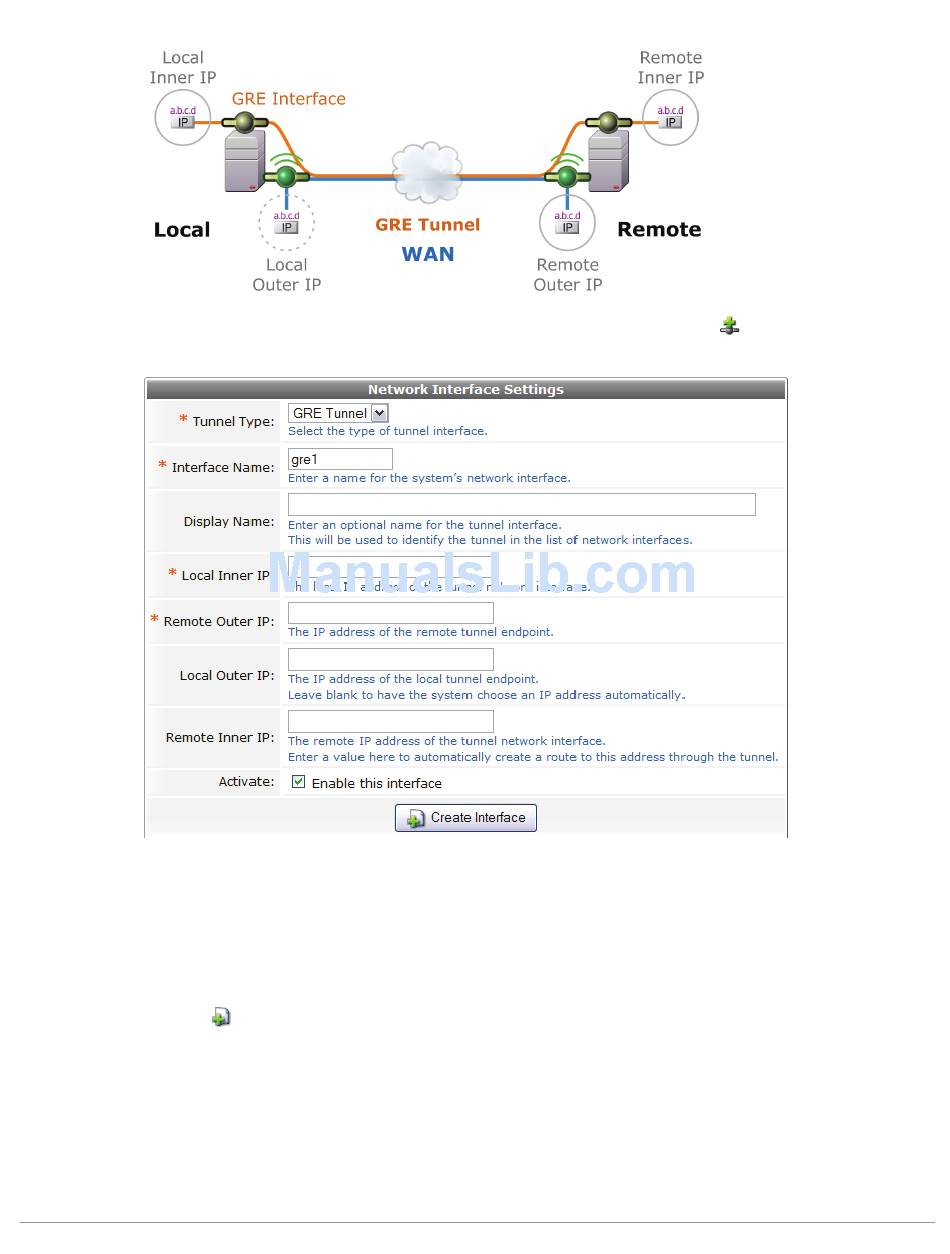

Figure 40 Network diagram showing IP addressing for a GRE tunnel

To create a GRE tunnel, navigate to the Network Interfaces page and click the Create a tunnel
network interface link. The Network Interface Settings form is displayed.
The Interface Name is the system's internal name for this tunnel interface. A default value is supplied,
which may be used without modification. A Display Name may be specified to identify the connection in the
list of network interfaces.
The IP address settings for the GRE tunnel must be specified in order for it to be created successfully.
Select the Enable this interface check box to activate the tunnel interface immediately after it has been
created.
Click the Create Interface button to add the new tunnel interface.

Creating a VLAN Interface

Navigate to Administrator > Network Setup > Network Interfaces to view the list of interfaces
currently configured on the system.
