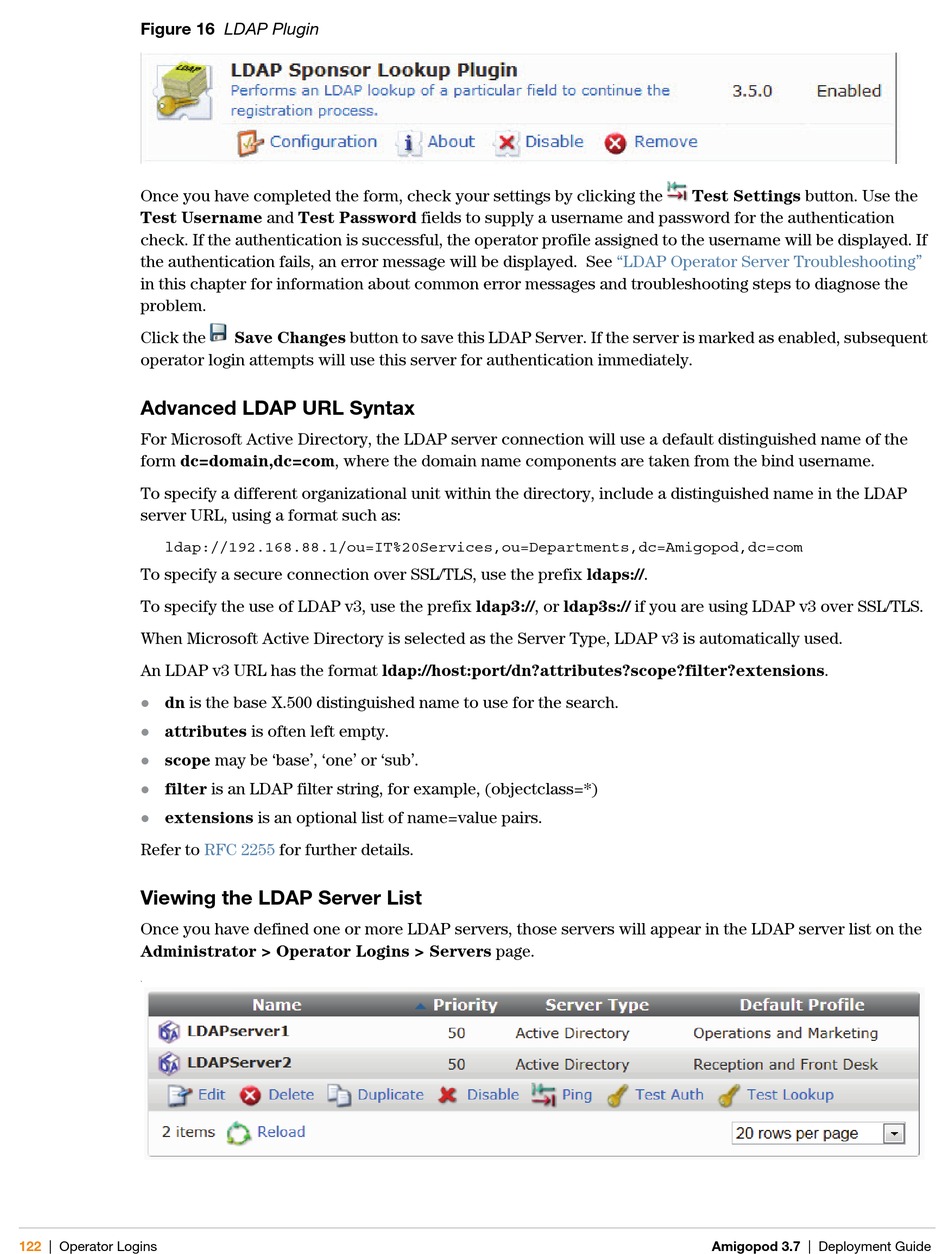

Figure 16 LDAP Plugin

Once you have completed the form, check your settings by clicking the
Test Username and Test Password fields to supply a username and password for the authentication
check. If the authentication is successful, the operator profile assigned to the username will be displayed. If
the authentication fails, an error message will be displayed. See
in this chapter for information about common error messages and troubleshooting steps to diagnose the
problem.
Click the
operator login attempts will use this server for authentication immediately.

Advanced LDAP URL Syntax

For Microsoft Active Directory, the LDAP server connection will use a default distinguished name of the
form dc=domain,dc=com, where the domain name components are taken from the bind username.
To specify a different organizational unit within the directory, include a distinguished name in the LDAP
server URL, using a format such as:
ldap://192.168.88.1/ou=IT%20Services,ou=Departments,dc=Amigopod,dc=com
To specify a secure connection over SSL/TLS, use the prefix ldaps://.
To specify the use of LDAP v3, use the prefix ldap3://, or ldap3s:// if you are using LDAP v3 over SSL/TLS.
When Microsoft Active Directory is selected as the Server Type, LDAP v3 is automatically used.
An LDAP v3 URL has the format ldap://host:port/dn?attributes?scope?filter?extensions.
dn is the base X.500 distinguished name to use for the search.

attributes is often left empty.

scope may be 'base', 'one' or 'sub'.

filter is an LDAP filter string, for example, (objectclass=*)

extensions is an optional list of name=value pairs.

Refer to

Viewing the LDAP Server List

Once you have defined one or more LDAP servers, those servers will appear in the LDAP server list on the
Administrator > Operator Logins > Servers page.
.
122 | Operator Logins
Save Changes button to save this LDAP Server. If the server is marked as enabled, subsequent
RFC 2255 for further details.
Test Settings button. Use the
"LDAP Operator Server Troubleshooting"
Amigopod 3.7 | Deployment Guide
