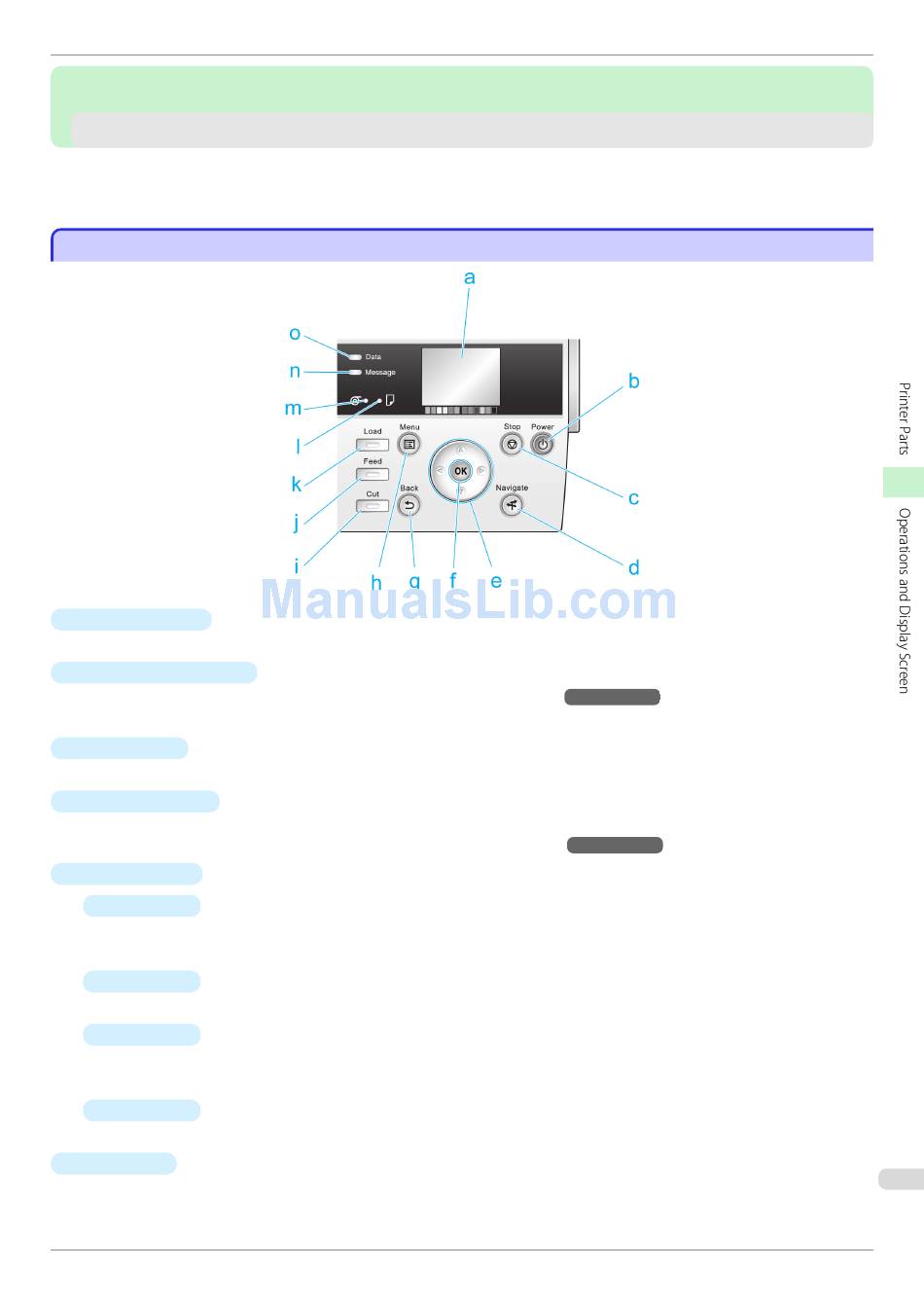

Control Panel Control Panel
a Display Screen
Shows printer menus, as well as the printer status and messages.
b Power button (green)
Turns the printer on and off. (See "Turning the Printer On and Off.")
The Power button is lit when the printer is on or in Sleep mode.
c Stop button
Cancels print jobs in progress and ends the ink drying period.
d Navigate button
Enables you to check instructions for loading and removing paper or replacing ink tanks or printheads, as well
as other operations. (See "How to View Instructions with Navigate.")
e Arrow buttons
◀ button
•
Press this button on the Tab Selection screen to move to another tab.
In menu items requiring numerical input, press this button to move to another digit.
• ▲ button
Press this button when viewing menus to display the next menu item or setting value.
▶ button
•
Press this button on the Tab Selection screen to move to another tab.
In menu items requiring numerical input, press this button to move to another digit.
• ▼ button
Press this button when viewing menus to display the next menu item or setting value.
f OK button
Press this button on the Tab Selection screen to display the menu of the tab shown.
