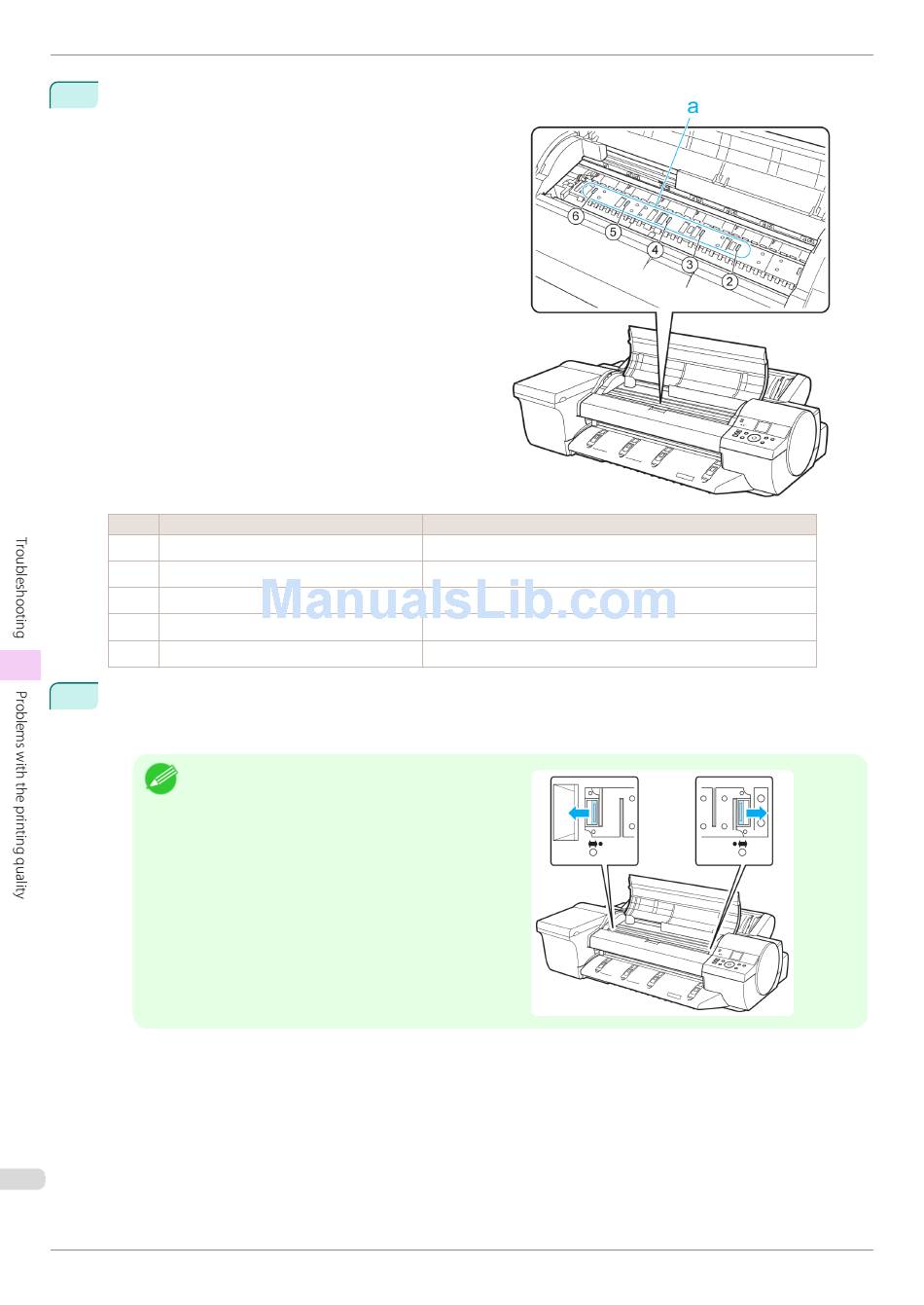

Canon imagePROGRAF iPF6450 Basic Manual page 120

Setting the Blue Switch on the Platen
5
Refer to the following table to confirm the number on
the Platen (a) that corresponds to the size of paper for
printing.
Number
2 254 mm (10 in) or 257 mm
3 355 mm (14 in)
4 406 mm (16 in), 420 mm, or 432 mm (17 in)
5 515 mm (20 in)
6 610 mm (24 in)
6
Using the back of the Cleaning Brush, move the Switch to the side opposite ●, corresponding to the size of
the paper for printing.
In this case, note that you will move the switch in the opposite direction from the direction in step 4.
Note
120
Dimensions
• The Switch only moves number 1 and the number that
matches the paper size. Set all of the switches where
the number does not match the paper size in switches
number 2 and higher to the ● side.
Paper Size
10"x12", 8"x10", or JIS B4
14"x17"
16-in. Roll (406.4mm), ISO A2, 17-in. Roll (431.8mm), or ANSI C
JIS B2 or JIS B3
ISO A1, ISO A2, or 20"x24"
iPF6450
Basic Guide
