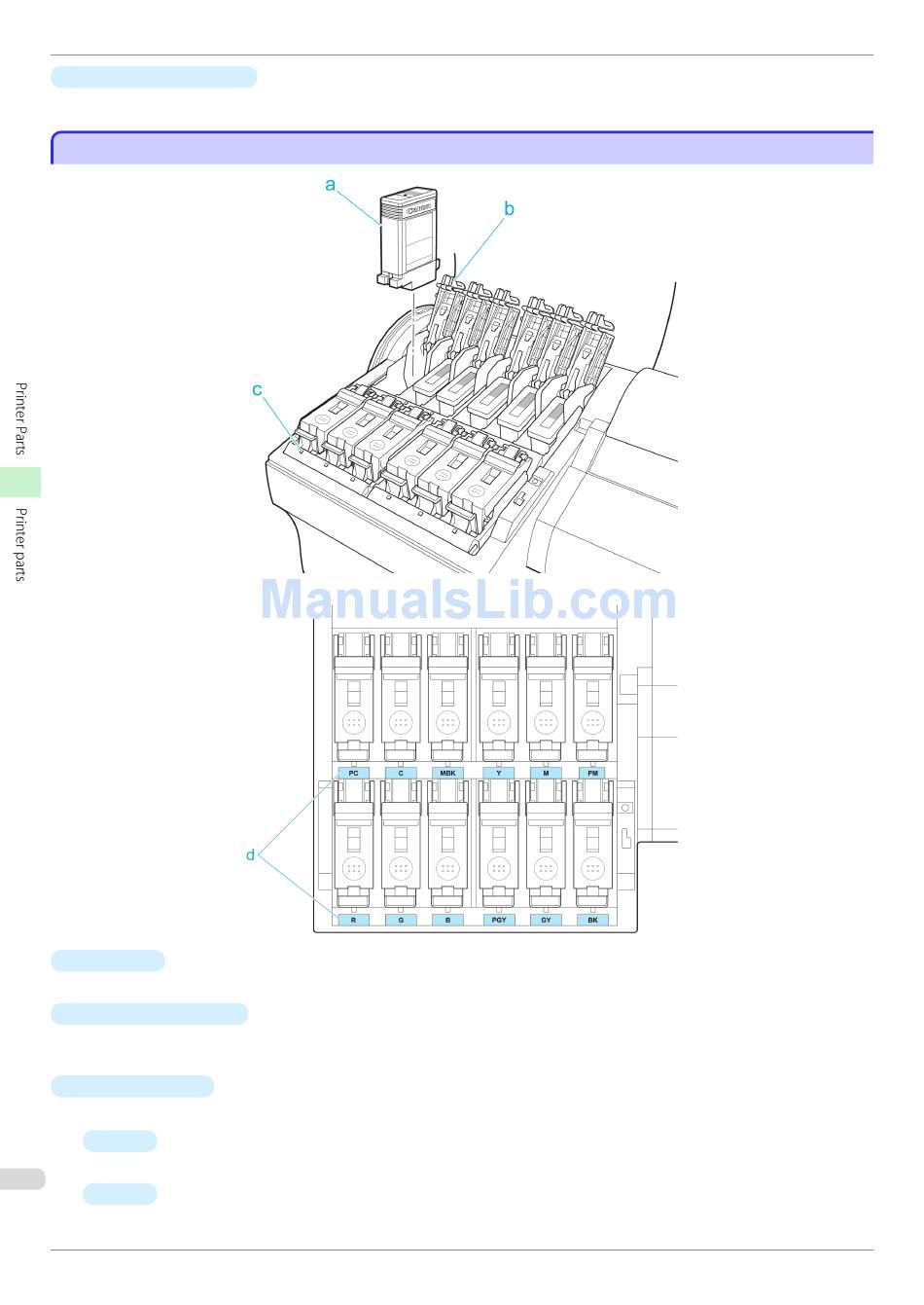

Ink Tank Cover (Inside)
c Printhead Fixer Lever
Locks the Printhead Fixer Cover. Do not open this part except during Printhead replacement.
Ink Tank Cover (Inside) Ink Tank Cover (Inside)
a Ink Tank
Cartridges of ink in various colors.
b Ink Tank Lock Lever
A lever that locks the Ink Tank in place and protects it. Lift and press down the lever when replacing an Ink
Tank.
c Ink Lamp (Red)
Indicates the state of the Ink Tank as follows when the Ink Tank Cover is opened.
• On
The Ink Tank is installed correctly.
76
• Off
No Ink Tank is installed, or the ink level detection function is off.
